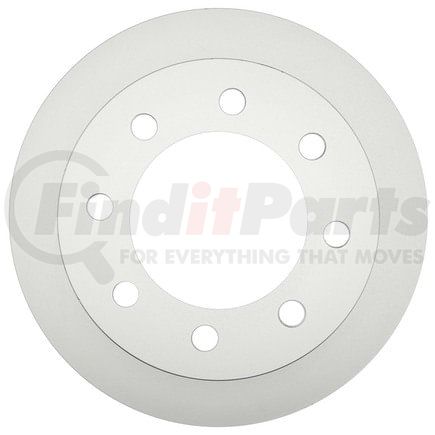

(888) 312-8812 Login SignupRAYBESTOS 76920FZN Raybestos Element3 Coated Brake Rotor
$144.95
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 76920FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2002-2000 Dodge Ram 2500 Front, 2002-2000 Dodge Ram 3500 Front, 2002-2000 Dodge Ram 4000 Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 76920FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.82 IN |
| Center Hole Diameter | 122.45 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.32 IN |
| Discard Thickness | 33.55 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.66 IN |
| Mounting Bolt Hole Diameter | 16.75 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.395 IN |
| Nominal Thickness | 35.45 MM |
| Outside Diameter | 12.85 IN |
| Outside Diameter | 326.4 MM |
| Overall Height | 4.01 IN |
| Overall Height | 101.85 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213145106 |
RAYBESTOS 76920FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145283, YH145283, YH145283C, YH145283P |
| AMERICAN REMANUFACTURED | 89-40046 |
| AUTOPARTSOURCE | 491170 |
| AUTOSPECIALTY | AR8746, AR8746E |
| AUTOZONE | 5393, 5393DG, DL5393 |
| BENDIX | 145283 |
| BRAKEBEST | 16010165, 76920, 76920FZN, 76920PER, 76920R, 76920RGS, 81-125745, BD125745 |
| BREMBO | 09.8916.85, 27126 |
| Bridgestone | 7008070 |
| CENTRIC | 120.67046, 120.67046CRY, 121.67046, 125.67046, 125.67046CRY, 126.67046CSL, 126.67046CSR, 126.67046SL, 126.67046SR, 127.67046CL, 127.67046CR, 127.67046L, 127.67046R, 128.67046CL, 128.67046CR, 128.67046L, 128.67046R, 227.67046L, 227.67046R, 320.67046, 320.67046F |
| CHRYSLER | 05015230AA, 5015230AA |
| CONTINENTAL-CONTITECH | CW36700 |
| Casting Numbers | 211277-C, 325517 |
| Centric Parts | 120.67046, 120.67046CRY, 121.67046, 125.67046, 125.67046CRY, 126.67046CSL, 126.67046CSR, 126.67046SL, 126.67046SR, 127.67046CL, 127.67046CR, 127.67046L, 127.67046R, 128.67046CL, 128.67046CR, 128.67046L, 128.67046R, 227.67046L, 227.67046R, 320.67046, 320.67046F |
| DURA CORP | BR5393 |
| DuraGo | BR5393 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12572051 |
| GUARDIAN | 52-125745 |
| MIGHTY DISTRIBUTING SYSTEM | 5393 |
| MONROE BRAKES | BD125745 |
| NEWTEK AUTOMOTIVE | 5393 |
| Newtek Automotive USA | 5393 |
| Omnicraft | QBRR53 |
| POWERSTOP | AR8746EVC |
| PROMAX | 14-5393 |
| Parts Master | 125745 |
| QUALIS | 5393 |
| QUALITY BRAND | 5393 |
| STANDARD ROTORS AND DRUMS | 5393 |
| THE UNIVERSAL GROUP | 103159 |
| UAP | 5393 |
| Ultra Brake | 5393 |
| Universal | 103159 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51342 |
| WABCO | PS125745 |
| WABCO - Archived | PS125745 |
| WAGNER BRAKE | BD125745 |
| WINHERE | 662662, YH2662 |
| WORLDPAC | 1407-25431 |
| Wagner Brake | BD125745E |
RAYBESTOS 76920FZN Fits Vehicles
- Dodge Ram 1500 (2000)
- Dodge Ram 2500 (2000-2002)
- Dodge Ram 3500 (2000-2002)
- Dodge Ram 3500 Van (2001-2002)
- Dodge Ram 4000 (2000-2002)
