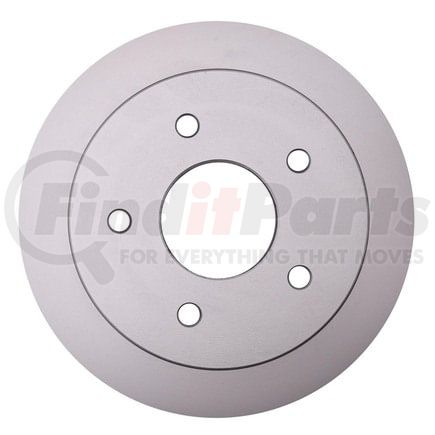

RAYBESTOS 56707FZN Raybestos Element3 Coated Brake Rotor

★★★★★ (0)
Raybestos 56707FZN Disc Brake Rotor Raybestos Element3 Coated Brake Rotor
RAYBESTOS

MSRP: $79.95

$73.49

Save $6.46

Limited availability at this price!

In Stock

Get it by Monday, Aug 10
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details

RAYBESTOS 56707FZN Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Element3 Coated Brake Rotor

Application Summary

2004-1998 Chevrolet S10 Rear, 2005-1997 Chevrolet Blazer Rear, 2004-1998 GMC Sonoma Rear, 2005-1997 GMC Jimmy Rear, 2001-1997 Oldsmobile Bravada Rear, 2000-1998 Isuzu Hombre Rear

Features & Benefits

  • Grey Fusion 4.0® Coating
  • Grey Fusion 4.0(R) Coating
  • Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
  • Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
  • RPT® Rust Prevention Technology
  • RPT(R) Rust Prevention Technology
  • RPT® Rust Prevention Technology for long lasting rust prevention.
  • RPT(R) Rust Prevention Technology for long lasting rust prevention.
  • Cooling Vanes
  • Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
  • OE Matched
  • OE Matched precision and performance.
  • Non-Directional Finish
  • A non-directional ground finish provides a product that is ready to install right out of the box.

RAYBESTOS 56707FZN Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.78 IN
Center Hole Diameter 70.6 MM
Conventional Or Drum-In-Hat Type Rotor Drum-In-Hat
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness 0.728 IN
Discard Thickness 18.5 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.75 IN
Mounting Bolt Hole Circle Diameter 120.65 MM
Mounting Bolt Hole Diameter 0.511 IN
Mounting Bolt Hole Diameter 13 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.785 IN
Nominal Thickness 19.95 MM
Outside Diameter 11.61 IN
Outside Diameter 294.9 MM
Overall Height 3.745 IN
Overall Height 95.1 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00887213090468

RAYBESTOS 56707FZN Cross References

BrandPart Number
ACDELCO177-843
ADVANCE AUTO PARTS145180, YH145180, YH145180C, YH145180P
AMERICAN REMANUFACTURED789-44036, 89-44036
AUTOPARTSOURCE593140
AUTOSPECIALTYAR8636, AR8636E
AUTOXTRAAX55038
AUTOZONE107256, 55038, 55038B, 55038DG, 55038DL, DL55038
BECK/ARNLEY083-2891
BENDIX145180
BOSCH25010537, RBR55038
BRAKEBEST25010537, 56707, 56707FZN, 56707R, 56707RGS, 81-125505, BD125505
BREMBO09.8459.85, 27186
Brembo09.8459.81
Bridgestone7004665
CALIFORNIA DRUM & ROTOR125505
CENTRIC120.66036, 121.66036, 126.66036CSL, 126.66036CSR, 126.66036SL, 126.66036SR, 127.66036CR, 127.66036L, 127.66036R, 128.66036L, 128.66036R, 227.66036L, 227.66036R, 320.66036, 321.66036
CONTINENTAL-CONTITECHCW20703
Casting Numbers15725778, 211134-C, 325278
Centric Parts120.66036, 121.66036, 126.66036CSL, 126.66036CSR, 126.66036SL, 126.66036SR, 127.66036CR, 127.66036L, 127.66036R, 128.66036L, 128.66036R, 227.66036L, 227.66036R, 320.66036, 321.66036
DELPHIRB549
DURA CORPBR55038, BR5503802
DuraGoBR55038, BR5503802
GM15704667
GREN671902
GUARDIAN52-125505
General Motors15704667
ISUZU8157046670
MIDASBR2043
MIGHTY DISTRIBUTING SYSTEM55038
MONROE BRAKESBD125505
NEWTEK AUTOMOTIVE55038
Newtek Automotive USA55038
OmnicraftQBRR121
PARTS MASTERP125505
POWERSTOPAR8636EVC
PROMAX14-55038
QUALIS55038
QUALITY BRAND55038, Q4018
STANDARD ROTORS AND DRUMS55038
THE UNIVERSAL GROUP101705
TopNotchTN56707GEO
UAP55038
Ultra Brake55380
Universal101705
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX51230
WABCOPS125505
WABCO - ArchivedPS125505
WAGNER BRAKEBD125505
WINHERE662289, YH2289
WORLDPAC1407-25659, 1427-731979
Wagner BrakeBD125505E

RAYBESTOS 56707FZN Fits Vehicles

  • Oldsmobile Bravada (1997-2001)
  • GMC Sonoma (1998-2004)
  • GMC Jimmy (1997-2005)
  • Chevrolet S10 (1998-2004)
  • Chevrolet Blazer (1997-2005)
  • Isuzu Hombre (1998-2000)
