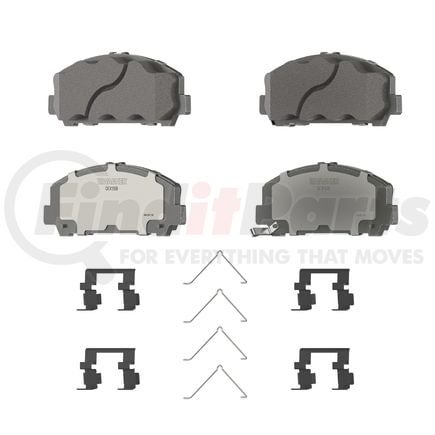

(888) 312-8812 Login SignupWAGNER OEX1509 Premium Ceramic Disc Pad
Tap to view 8 more
$8399
Limited availability at this price!
In Stock
Get it by Wednesday, Aug 12
WAGNER OEX1509 Part Description
Manufacturer
Features & Benefits
- PREMIUM PERFORMANCE -- Patented technology and Wagner’s engineering excellence combine to meet or exceed OE standards
- PREMIUM PERFORMANCE -- Patented technology and Wagner's engineering excellence combine to meet or exceed OE standards
- LONGER LASTING -- Application-specific patented wave shape and custom slot design deliver improved braking performance, reduce rotor wear and minimize residue to increase the life of the brake pad
- CONFIDENT STOPS -- Advanced design increases turbulent air flow for improved heat dissipation and cooler operation for reliable braking when it matters most
- INHIBITS CORROSION -- Superior electrostatic-coated steel plates with application-specific mechanical retention and premium stainless-steel hardware for better corrosion protection and longer life
- QUIETEST OPERATION -- Pad shape and five shim layers deaden noise, vibration and harshness
- HARDWARE INCLUDED -- Premium stainless-steel hardware included for all applications
- COMPREHENSIVE COVERAGE -- Brake pads available for domestic, European and Asian passenger cars, trucks, SUVs and CUVs 2005 and newer
- ZERO COPPER FORMULATION -- Features Wagner OE25™ zero-copper friction formulation
- BUILT TO STAY PUT -- Thermoset adhesive secures the friction material to the backplate, maintaining bond integrity through heat, pressure and repeated stops
- LAB-TESTED PERFORMANCE -- Validated on a dynamometer using SAE J2521 (noise), SAE J2522 (effectiveness) and Los Angeles City Traffic protocols to ensure quiet operation, consistent stopping power and pad life
- PERFECT PAIRING -- Pair Wagner Premium brake pads with Wagner rotors and calipers (sold separately) for optimal performance
Wagner® OEX brake pads have custom shape and slot designs that create turbulent airflow allowing for cooler operations, and can stop pickups, SUVs and CUVs up to 50 feet sooner than competitor brands, based on third-party on-vehicle testing.
New Wagner® OEX brake pads stop pickups, SUVs and CUVs up to 50' sooner than competitive brands based on third-party on-vehicle testing.
- Customized shape and slot design creates turbulent airflow allowing for cooler operation and improved stopping performance
- Premium low-copper ceramic formulations increase pad life up to 2X longer compared to previous Wagner offerings
- Asymmetrical brake pad and unique slot designs ensure optimal NVH performance
- Patent-pending designs reduce rotor wear and wheel dust compared to previous Wagner offerings
- Precision-cut, backplates assure proper pad fitment in caliper bracket and superior rust preventative coating protects against the harshest environments
- Premium stainless steel hardware included in the box
Part Specifications
BRAKE PADS
| Pad FMSI Number | D1509 |
| Abutement Hardware Included | Yes |
| Friction Thickness Inner Pad (Inch) | 0.703 |
| Friction Thickness Outer Pad (Inch) | 0.703 |
| Front or Rear Pads | Front |
| OEM Replacement | Yes |
| Package Quantity | 1 |
| Pad Material | Ceramic |
| Shims Included | Yes |
WAGNER OEX1509 Specifications
Product Attributes
| Friction Material Composition | Ceramic |
| FMSI Number | 8403-D1509 |
| Abutment Clips Included | Yes |
| Pad Shims Included | Yes |
| Chamfered Edges | Yes |
| Slotted | Yes |
| Inner Pad Friction Material Thickness | 0.703 IN |
| Outer Pad Friction Material Thickness | 0.703 IN |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Mechanical |
| Mounting Hardware Included | Yes |
| Part Description | Disc Brake Pad Set |
| FMSI Lining | 8403 |
| Fmsi Steel | D1509 |
Additional Information
| MSDS Sheet Number | 331 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708305020 |
| Harmonized Tariff Code (HTS) | 8708305020 |
| UPC | 00008536938040 |
| VMRS Code | 013000000 |
| UNSPSC | 25171713 |
WAGNER OEX1509 Cross References
| Brand | Part Number |
|---|---|
| Auto Extra | AXCD1509 |
| BRAKE PRO | BKP1509CH |
| Bendix | CFC1509, D1509, D1509CT |
| Bosch | BE1509, BE1509H, BP1509 |
| BrakeBest Select Brake Pads | D1509, SC1509 |
| CENTRIC | 105.15090 |
| Carquest Premium Gold | GNAD1509 |
| Centric Parts | 106.15090, 103.15090, 105.15090, 300.15090, 301.15090, 305.15090, 308.15090 |
| Datsun/Nissan | D10601LA1A, D10609FE0A |
| Detroit Axle | P1509 |
| Duralast | D1509, DE1509, DG1509 |
| Dynamic Friction Company | 1214-1509-00, 1551-1509-01, 4000-1509-01, 1214-1509-01, 1400-1509-01, 1400-1509-00, 1551-1509-00, 4000-1509-00, 1311-1509-01, 1310-1509-01, 1310-1509-00 |
| Gabriel GRC Ultra | GCD1509 |
| MAGMA PRODUCTS | PSD1509C |
| Monroe Shocks & Struts | CX1509, GX1509 |
| NAPA BRAKES | PF8403X, UP8403X, SS8403X, SG8403X, UP8403AX, SS8403AX, PF8403AX, SG8403AX, AD8403A |
| Pep Boys | PS1509C, PGD1509, PD1509, PD1509C |
| PowerStop | 161509, 171509, Z231509, Z361509 |
| Promax | PRM21-1509 |
| Raybestos Brakes | ATD1509C, SP1509TRH, EHT1509H, MGD1509CH, PGD1509C |
| Suzuki | 5521082Z30, 5521082Z32 |
| VORTEX | VXD1509CH |
| Worldparts Synergy | WSD1509CH |
WAGNER OEX1509 Fits Vehicles
- INFINITI QX56 (2011-2013)
- INFINITI QX80 (2014-2020)
- Nissan Armada (2012-2015, 2017-2024)
- Nissan TITAN (2011-2015, 2017-2019)
WAGNER OEX1509 Customer Reviews
No reviews yet
Be the first to review this product!
WAGNER OEX1509 Manufacturer Information
When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.
WAGNER OEX1509 Questions & Answers
No questions yet
Be the first to ask a question about this product!
