CHAMPION part description

Product Description

Spark Plug QJ19HX Card of 1

Application Summary

Aerators, Blowers, Edgers, Chippers, Lawn Sweepers, Log Splitters, Mowers, Riding Mowers, Shredders, Tractors, Tillers, Earth Drills, Sprayrers, Sweepers, Generators, Mulchers, Saws, Pruners, Pumps, Air Compressors

Features & Benefits

  • Easier, cleaner starts and reduced engine emissions
  • Direct fit replacement with improved fuel economy
  • Perfect OE replacement plug for lawn & garden applications and similar engines
  • Fine-wire center electrode has focused spark for faster, easier and more consistent starting

Product Attributes

Ground Electrode Tip Design J Gap
Ground Electrode Core Material Nickel
Washer Included Yes
Electrical Terminal Type Non-Removable Nut
Center Electrode Tip Material Nickel
Ground Electrode Quantity 1
Hex Size 0.819 IN
Insulator Height 0.03 IN
Manufacturer Heat Range 19
Seat Type Flat
Reach 0.374 IN
Thread Diameter 0.551 IN
Resistor Type Yes
9459 No
9507 Hex
9745 Crush
9746 No
Center Electrode Diameter (inch) 0.052 IN
Gap Style J Gap
Ground Electrode Material Solid NIckel Alloy
Installed Height (inch) 1.9 IN
Insulator Projection (inch) 0.03 IN
Part Description Spark Plug
Plug Type QJ19HX
Pre-gap Size 0.025

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8511100000
Harmonized Tariff Code (HTS) 8511100000
UPC 00037551014873
VMRS Code 033003005

Part Interchanges

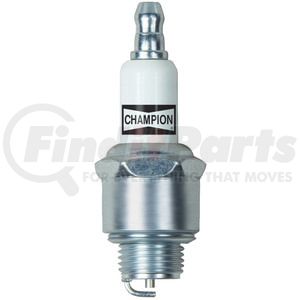

CHAMPION 861ECO Cross Reference

We have 1 alternatives for the 861ECO by CHAMPION:
