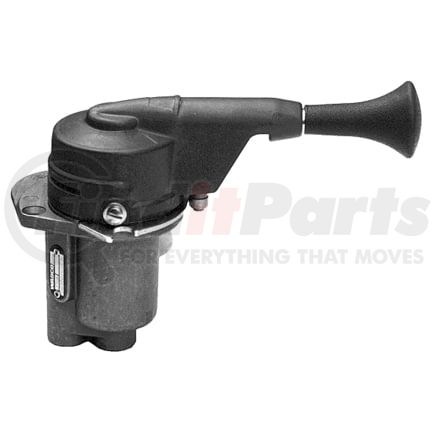

WABCO 9617011000 - Parking Brake Valve
$46099
MSRP: $1,756.08
Save: $1,295.09
In stock
limited availability at this price!
. Learn more
WABCO part description
Product Attributes
| Temperature Range | -40°C to +80°C |
| Size | 294 x 164 x 114 |
| Mounting | 2x Ø 7 mm |
| Weight | 2.577 |
| Distance Between Holes | 75 mm |
| Actuation Angle | 84° |
| Max. operating pressure | 8.0 bar |
| Parking Position | 84° |
| Color | Black |
| Calculated Volume (dm³) | 5.497 |
| Exhaust | M14 x 1.5 |
| Port threads | M14 x 1.5 |
| Port thread 1 | M14 x 1.5 |
| Port thread 21 | M14 x 1.5 |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
