Name: Dana 6.5-4-4491-1 DRIVE SHAFT END YOKE
SKU: 65444911
Price: 164.33 USD
Availability: OutOfStock

DANA part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

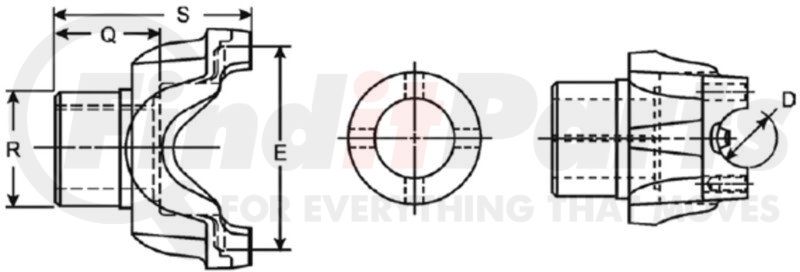

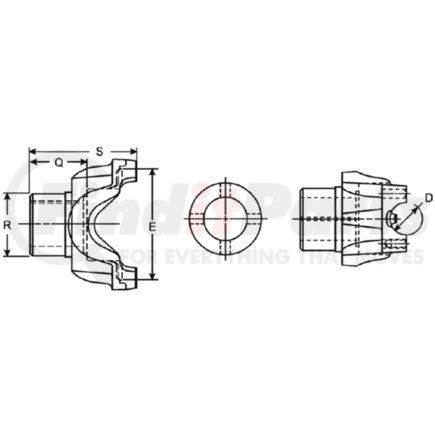

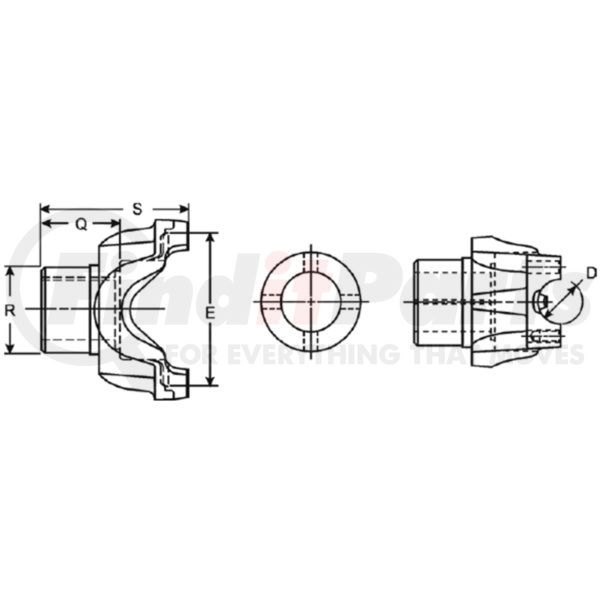

Specifications

Brand	Spicer
Series	1810
Spline Count	22
Yoke Style	HR
Hub Diameter R	3.750
C/L To End Hub S	5.840
Type	Splined Hole
Major Diameter	2.922
Involute Spline	I
Length Thru Hole Q	2.650
VMRS	024001003
C-Bore Depth	0.400
Material	Steel
Joint Angle #2	30
C-Bore Diameter	3.08
Package Type	EACH
Package Qty	1
Weight	7.24 LB
Country of Origin	Mexico

Product Attributes

Series	1810
Material	Steel
Spline Count	22
Type	Splined Hole
Hub Diameter R	3.750 IN
Involute Spline	I
Length Thru Hole Q	2.650 IN
Yoke Style	HR
Major Diameter	2.922 IN
C/L To End Hub S	5.840 IN
C-Bore Depth	0.400 IN
C-Bore Diameter	3.08 IN
Joint Angle #2	30

Additional Information

Country of Origin (Primary)	MX
UPC	00023913330422
VMRS Code	024001003

Part Interchanges

Navistar DS65444911

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
