DANA 5007289 - Drive Shaft Tube Shaft Assembly; with Boot Can; 3.500 x .083 Tubing
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DANA part description
California Proposition 65 Warning

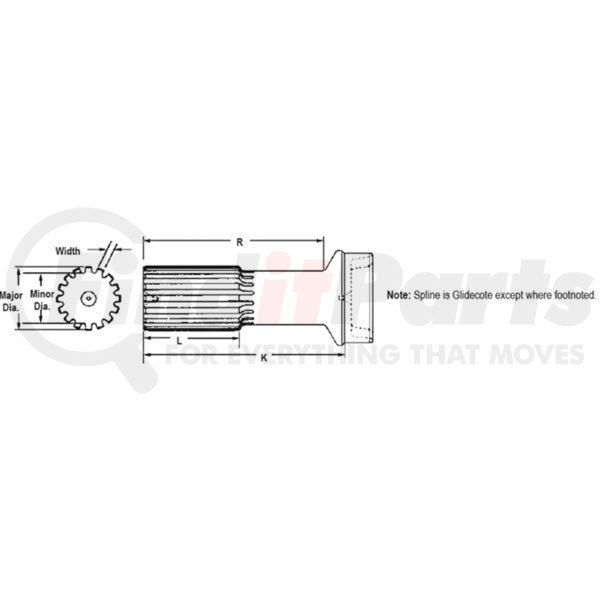

Major Diameter: | 1.437 |
Spline Count: | 21/22 I |
Fits Tube Diameter: | 3.500 |
Fit Tube Wall Thickness: | .083 in. |
End of Spline to Weld (K): | 7.375 |
Length of Spline (L): | 3.5 in. |
End of Spline to Radius (R): | 6.49 in. |
Material: | Steel |
Type: | I |
Number of Splines Based On: | 22 |
Butt Diameter: | 3.334 |
Neck Diameter (Max): | 1.29 |
Product Attributes
Material | Steel |
Spline Count | 21/22 I |
Type | I |
Major Diameter | 1.437 IN |
Fits Tube Diameter | 3.500 IN |
Number of Splines Based On | 22 |
Butt Diameter | 3.334 IN |
End Of Spline To Radius (R) | 6.489 IN |
End Of Spline To Weld (K) | 7.375 IN |
Fit Tube Wall Thickness | .083 IN |
Length Of Spline (L) | 3.500 IN |
Neck Diameter (Max) | 1.29 IN |
Additional Information
Country of Origin (Primary) | US |
UPC | 00023913474331 |
VMRS Code | 024002056 |
Part Interchanges
