Name: Dana 3-4-1743-1 DRIVE SHAFT END YOKE
SKU: 3417431
Price: 9974.25 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1480

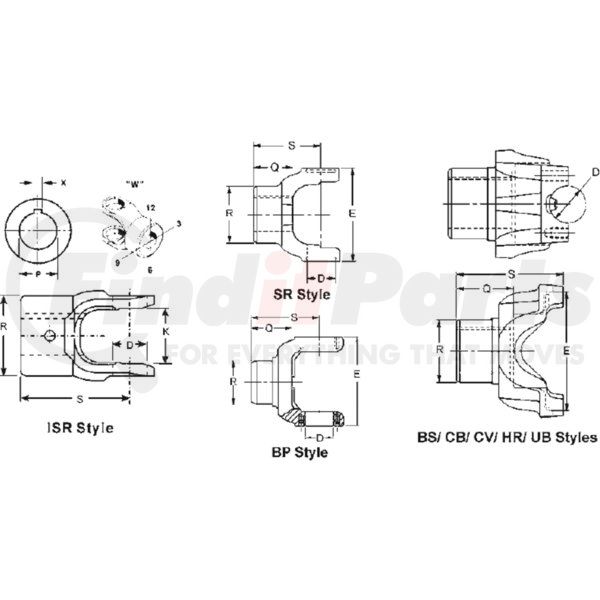

Yoke Style	BS
Hub Diameter R	2.130
C/L To End Hub S	4.219
Type	Straight Round Hole
Outside Yoke Dimension (In) E	4.188
Yoke Bearing Dimension (In) D	1.375
Involute Spline	N
Hole Diameter (In) P	1.375
VMRS	024001003
Material	Steel
Package Type	EACH
Package Qty	1
Weight	3.97 LB
Country of Origin	United States

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	1480
Material	Steel
Type	Straight Round Hole
Hole Diameter (In) P	1.375 IN
Hub Diameter R	2.130 IN
Involute Spline	N
Outside Yoke Dimension (In) E	4.188 IN
Yoke Bearing Dimension (In) D	1.375 IN
Yoke Style	BS
C/L To End Hub S	4.219 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913352295
VMRS Code	024001003

Part Interchanges

DANA 3-4-1743-1 Cross Reference

We have 1 alternatives for the 3-4-1743-1 by DANA:

UAP 3-4-1743-1
