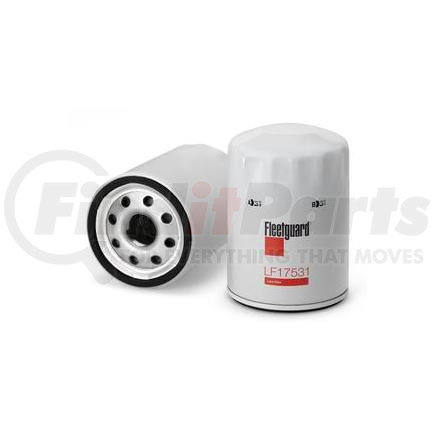

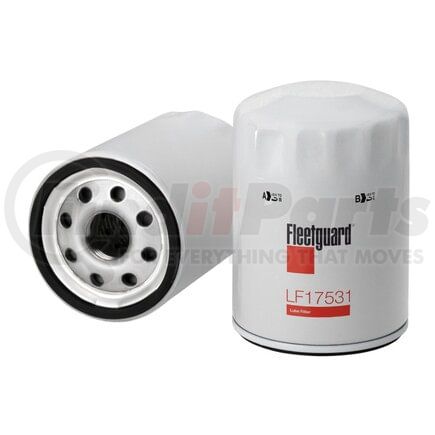

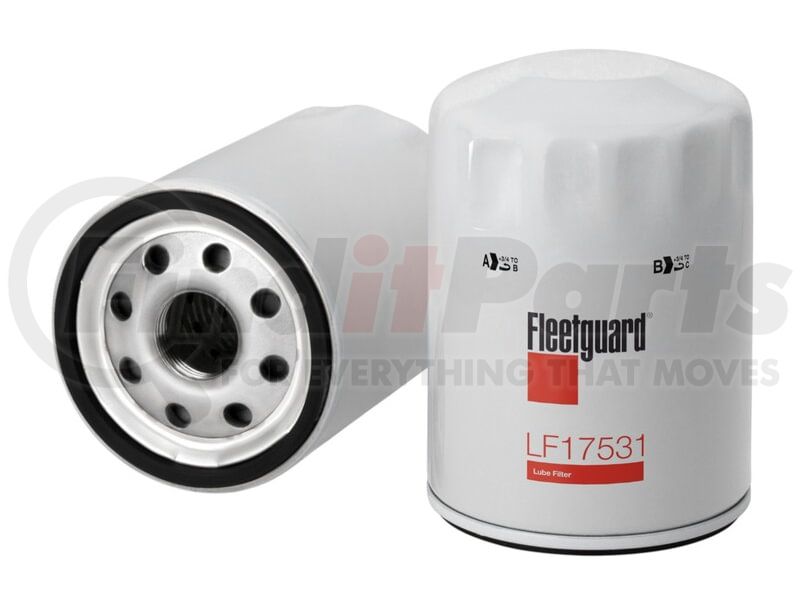

(888) 312-8812 Login SignupFLEETGUARD LF17531 Engine Oil Filter - M22X1.5-6H Thread, 4.11 Inch Length, 21 Micon
SHIPS MONDAY
MSRP: $14.79
$1299
Save $1.80
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
FLEETGUARD LF17531 Part Description
Manufacturer
Features & Benefits
- Media density aids in capturing fine soot generated in high-hour diesel use
- End-cap bonding resists separation during cold-start pressure spikes
- Thread profile connects securely to automated shop equipment
- Canister rigidity supports stable filtration during rapid RPM transitions
- Useful for fleets standardizing filters across multiple engine models
- Helps maintain oil pump priming in extended-park situations
Fleetguard Engine Oil Filter
The Fleetguard Engine Oil Filter manages lubrication flow through a filtration media sized to match engines requiring a 4.11-inch height and 2.93-inch outer diameter. Its internal structure provides balanced oil movement during both low-speed operation and extended highway operation. The filter’s sealing surface seats firmly against standard filter bases, reducing the likelihood of uneven contact that might interrupt flow. If you’re looking for a trustworthy oil-cleaning component that integrates with standard lubrication circuits, the Fleetguard LF17531 offers steady filtration support.
FLEETGUARD LF17531 Specifications
Product Attributes
| Height | 4.11 in. (104.39 mm) |
| Bypass Relief Valve | Yes |
| Gasket Outside Diameter | 2.76 in. (70.1) |
| Notes | M22 x 1.5-6H |
| Outside Diameter (Largest) | 2.93 in. (74.42 mm) |
| Standpipe | No |
| BPV Setting | Yes |
| Largest Od | 74.37 mm |
| Overall Height | 4.105 inch |
| Thread Diameter | 22.0 in |
| Thread Form | Metric |
| Thread Pitch | 1.5 mm per Thread |
| Gasket Inside Diameter | 2.47 inch |
| BPV OPENING DP | Yes |
| Gasket Od | 2.76 inch |
| Length | 4.11 inch |
| Primary Particle Efficiency | 21.00 micron (c) @ 30.84% |
| Thread Size | M22X1.5-6H |
| Test Specification | ISO 4548-12 |
| Rated Flow | 11.40 L/m |
| Efficiency Test Std | ISO 4548-12 |
| Pressure Valve | Yes |
| Pressure Valve Opening Pressure | 144.80 kPa |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
FLEETGUARD LF17531 Cross References
| Brand | Part Number |
|---|---|
| FGLF17531, HC3Z14401NS | |
| AC | PF63, PF63E |
| ACDELCO | PF63 |
| BALDWIN | B7449 |
| Big A | 544 |
| CARQUEST | 84502 |
| Champ | PH10063 |
| Donaldson | P577066 |
| FORD | AA5Z6714A |
| FRAM | PH10575 |
| Ford | FL500SB12 |
| GMC | 12690385, 89017525 |
| Hastings | LF641 |
| ISUZU | 8126903850 |
| LUBER-FINER | PH10063, PH500 |
| MAHLE | OC 1047 |
| MAZDA | ZZC423802 |
| MOTORCRAFT | FL500S |
| Motorcraft | FL500SB12 |
| NAPA | 100255, 27502, 47502, 7502 |
| Purolator | PF63 |
| Tec-Fil | PSL542 |
| WIX FILTERS | 57502 |
| Wix | 57502, 57502MP, WL10255 |
FLEETGUARD LF17531 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF17531 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
