Name: FEDERAL MOGUL-MOOG 270
SKU: 270
Price: 22.64 USD
Availability: InStock

FEDERAL MOGUL-MOOG part description

Product Description

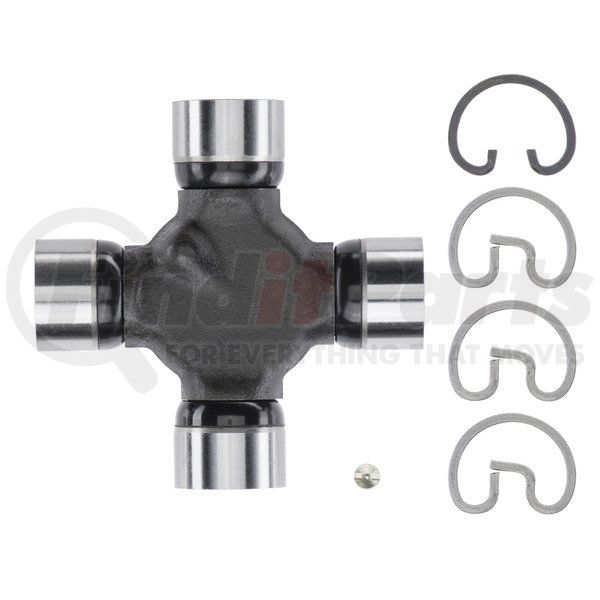

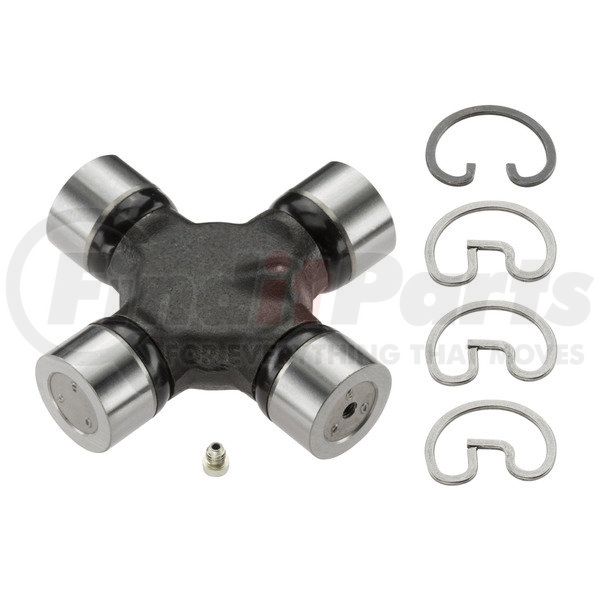

Greaseable Super Strength Universal Joint

Application Summary

2011-2013 Ram 1500 (Rear Driveshaft at Transmission, At Transmission, Rear Driveshaft at Support Bearing, Rear Driveshaft at Rear Axle, At Center Bearing, At Rear Axle); 2011 Ram Dakota (At Transmission, Rear Driveshaft at Transmission, At Rear Axle, At Center Bearing, Rear Driveshaft at Rear Axle); 2009-2012 Suzuki Equator (At Transmission, At Center Bearing, Rear Driveshaft at Rear Axle, Rear Driveshaft at Transmission, At Rear Axle); 1969-1977 Checker Marathon (At Transmission, At Rear Axle); 2006 Isuzu i-280 (At Transmission, At Center Bearing); 2006 Isuzu i-350 (Rear Driveshaft at Transmission); 2007-2008 Isuzu i-290 (At Transmission, At Center Bearing); 2007-2008 Isuzu i-370 (At Transmission, At Center Bearing, Rear Driveshaft at Transmission); 1965-1973 Chrysler Imperial (At Rear Axle, At Transmission, CV at Rear Axle, CV at Transmission); 1965-1967 Chrysler New Yorker (At Transmission, At Rear Axle); 1965-1967 Chrysler Newport (At Rear Axle, At Transmission); 1966 Chrysler Town & Country (At Rear Axle, At Transmission); 1966-1967 Dodge Polara (At Transmission, At Rear Axle); 1998 Dodge B1500 (At Transmission); 1998 Dodge B3500 (At Transmission); 1994-2010 Dodge Ram 1500 ST SLT Laramie Sport (Front Driveshaft - CV at Transfer Case, At Transmission, At Center Bearing, Rear Driveshaft at Transmission, Rear Driveshaft at Support Bearing, At Rear Axle, Rear Driveshaft at Rear Axle, Front Driveshaft at Front Axle); 1999-2003 Dodge Ram 2500 Van (At Transmission, At Rear Axle); 1999 Dodge Ram 3500 Van (At Transmission); 1999-2003 Dodge Ram 1500 Van (At Transmission, At Rear Axle); 1994-2004 Dodge Ram 2500 (Front Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle); 1994-2004 Dodge Ram 3500 (Front Driveshaft - CV at Transfer Case, Front Driveshaft at Front Axle); 1966-1967 Dodge Charger (At Transmission, At Rear Axle); 1966-1967 Dodge Coronet (At Transmission, At Rear Axle); 1999-2010 Dodge Dakota (At Transmission, Rear...

Features & Benefits

BUILT TO LAST -- Rugged design specifically engineered for applications with higher torque and horsepower
COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
CORROSION PROTECTION -- Exclusive MICRO SHIELDâ„¢ coating protects against rust and corrosion
GREASABLE DESIGN -- Bearing cups feature a radial design to allow 360 Degrees lubricant distribution to all bearing surfaces
KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
STRONG AND DURABLE -- Bearing cups are cold-forged, case-hardened and precision ground while steel cross is forged and carburized heat treated for strength and durability

Product Attributes

Length Axis 1	3.62 IN
Length Axis 1	91.9 MM
Length Axis 2	3.62 IN
Length Axis 2	91.9 MM
Bearing Cap Type	4 Plain Round Bearings
Greasable	YES
Bearing Cap Axis 2 Diameter	1.063 IN
Bearing Cap Axis 2 Diameter	27 MM
Bearing Cap Axis 1 Diameter	1.063 IN
Bearing Cap Axis 1 Diameter	27 MM
Bearing Type A	Round Plain
Bearing Type B	Round Plain
Image	UJoint_4Plain.tif
Length Measurement A	Outside of Bearing To Outside of Bearing
Length Measurement B	Outside of Bearing To Outside of Bearing
LUBE FITTING LOCATION	Flush-type lube fitting in bearing
OE Series	Spicer 1330
Part Description	Universal Joint
U-Joint Identification	4 Plain Round Bearings

Additional Information

Country of Origin (Primary)	MX
Canadian Harmonizing Tariff Code	8708991510
Harmonized Tariff Code (Schedule B)	8708995800
Harmonized Tariff Code (HTS)	8708996810
UPC	00080066605579

Part Interchanges

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
