(888) 312-8812 Login SignupACCURIDE 3600A Gunite BRAKE DRUM, REAR, 16.5 IN. X 7 IN./DISC, 10 STUD, 3600, 3800, FOR 22K+ REAR AXLES W/ STEEL HUBS
Tap to view 4 more
$31149
Limited availability at this price!
In Stock
Get as soon as Monday, Oct 26
ACCURIDE 3600A Part Description
Manufacturer
Features & Benefits
- Cast iron drum body absorbs the heat of repeated stops
- Machined inner surface provides the friction face for brake lining
- Rotates with the wheel while the brake shoes stay stationary
- Tolerates repeated heating and cooling from heavy stops

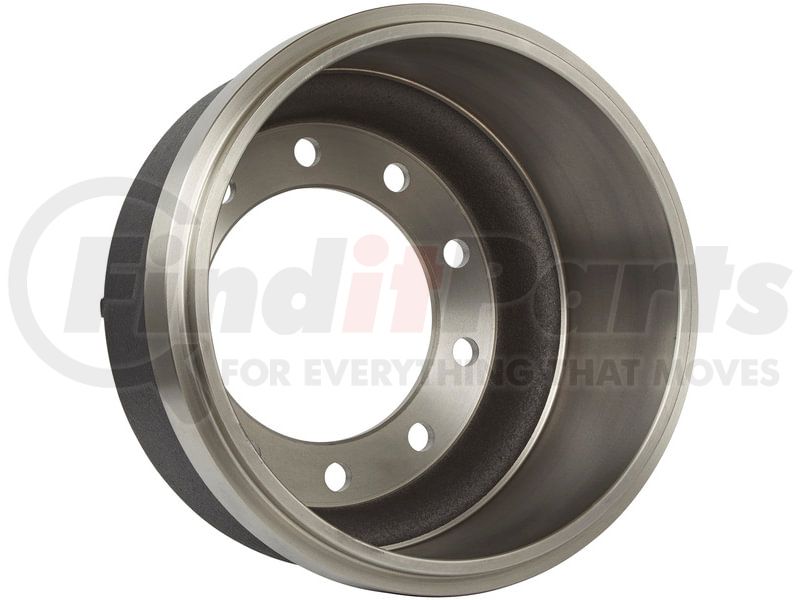

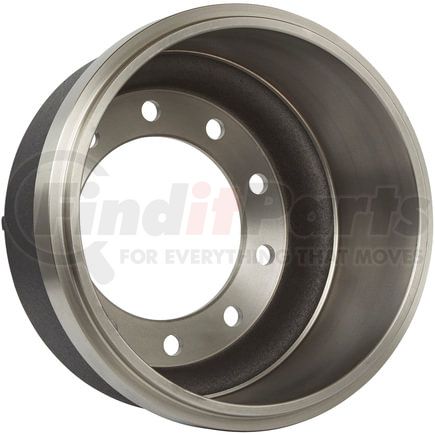

Accuride Brake Drum
Rear drum brakes turn shoe friction into stopping force, and the Accuride Brake Drum supplies the 16.5 x 7-inch friction surface. Braking force starts at the shoes, which press outward against the inside of the drum to slow the wheel end. The Accuride 3600A suits rear axles rated 22K+ with steel hubs, so its size and hub type work together. On heavy rear axles, the drum takes the heat and friction of every stop, which is why drum condition matters at every brake service.
Technical Specifications
| Aftermarket Status | Active |
| Finished Weight | 112 |
| Special Information | For severe duty use 3576 |
| Maximum Wear Diameter | 16.62 |
| Drum Mount | Outboard |
| Drum Type | BEA |
| Wheel Type | Disc |
| Overall Diameter | 18.88 |
| Dust Shield Recess Diameter | 17.5 |
| Dust Shield Recess Depth | 0.66 |
| Brake Size | 16.50x7.00 |
| Brake Surface Diameter | 16.5 |
| Brake Surface Width | 7.6 |
| Mounting Flange Diameter | 13.38 |
| Overall Depth | 10.56 |
| Pilot Diameter | 8.78 |
| Bolt Circle Diameter | 11.25 |
| Number of Bolt Holes | 10 |
| Bolt Hole Size | 1 |
| Squealer Band Width | 1.92 |
| Mounting Flange Thickness | 0.53 |
| Outside Sidewall Diameter | 17.49 |
| Sidewall Offset | 2.64 |
| Inside Finished Diameter | 13.14 |
