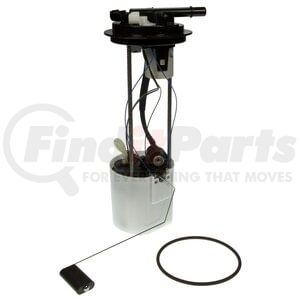

Name: Carter Fuel Pumps P76473M Fuel Pump Module Assembly
SKU: p76473m
Price: 223.99 USD
Availability: InStock

Fuel Pump Module Assembly

Carter Electric Fuel Pumps and Electric Fuel Pump Assemblies are made with all new materials under rigorous quality controlled manufacturing and testing procedures.
Quality Carter Electric Fuel Pumps and Fuel Pump Assemblies deliver optimum performance while providing long life.
Most applications include the necessary accessories such as tank seals, patented high-gradient density strainers and wiring harnesses.
Fuel sensor design provides resistance to corrosive fuel blends and additives.

Fuel Sending Unit Included	Yes
Negative Ground	Yes
Outlet Outside Diameter	9.49 MM
Voltage	12 2H
Fuel Type	Diesel
Housing Width	147.5 MM
Connector Color	Yellow
Regulator Included	No
Terminal Type	Blade
Mounting Hardware Included	No
Height	393 MM
Universal Or Specific Fit	Specific
Grade Type	Regular
Connector Shape	Rectangle
Gasket Or Seal Included	Yes
Housing Material	POM
Terminal Quantity	4
Top Mount Diameter	147.0 MM
Connector Gender	Male
Strainer Included	Yes
Inlet Type	Port
Outlet Type	Quick Connect
Outlet Quantity	1
Fuel Filter Included	No
Inlet Fitting Thread Size	3/8 IN
Resistance Ohms Empty	220 82
Resistance Ohms Full	20 82
Minimum Pressure	19.4 PS
Internal Or External Strainer	Internal
Outlet Fitting Thread Size	5/16 IN
Fuel Tank Pressure Sensor Included	No
Pump Type	Electric
Minimum Flow Rating	68.7 gph
65000	No Proposition 65 warning is required with this product.
Minimum Flow Rating	68.7 GPH
