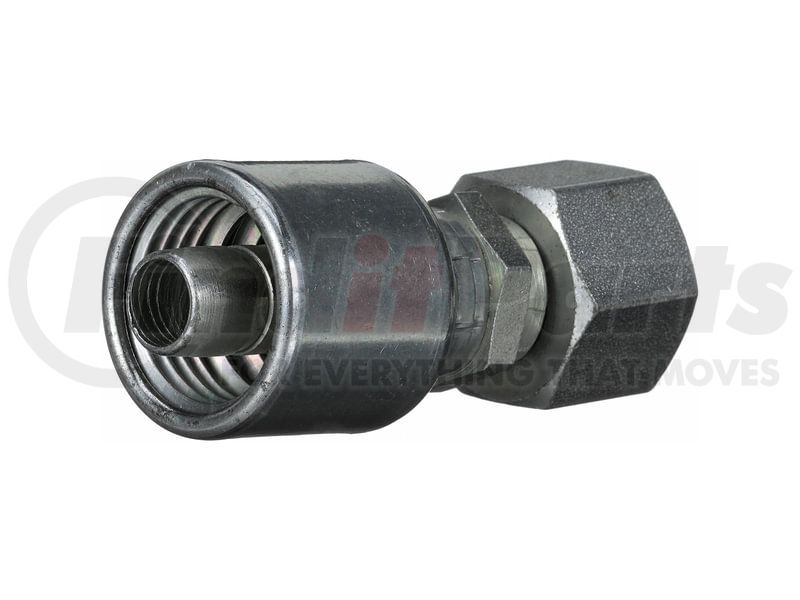

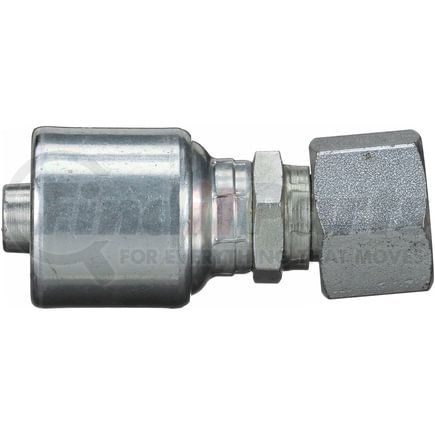

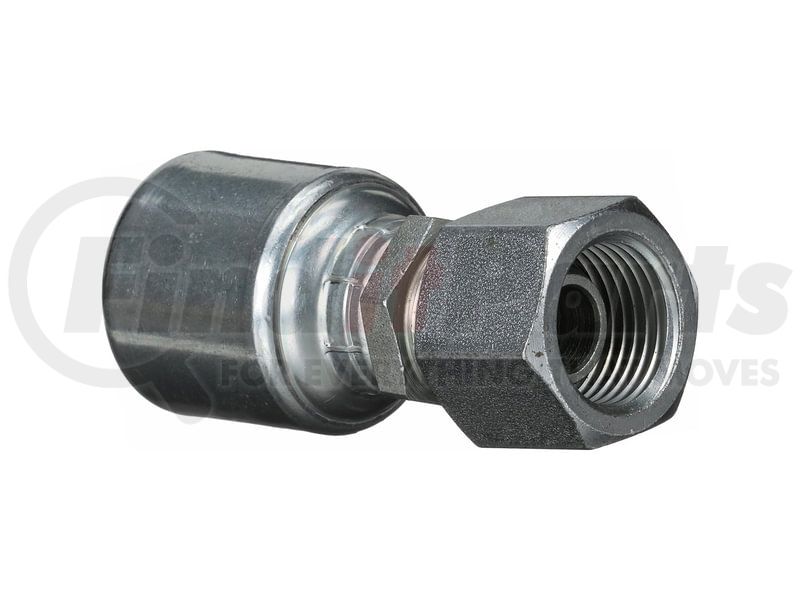

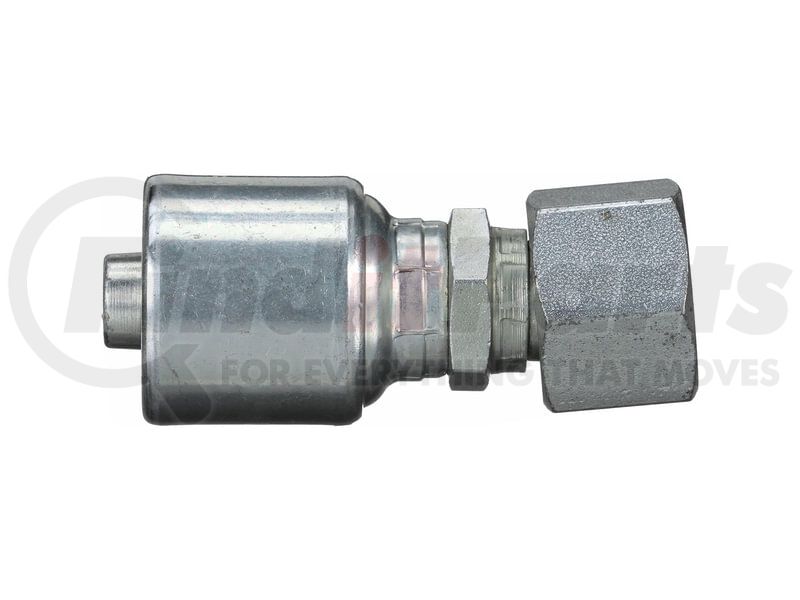

Gates G25932-0606 - Female Japanese Inverted Flare Parallel Threads (MegaCrimp)
$4799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Japanese Inverted Flare Parallel Threads (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Coupling Description | MegaCrimp Female Japanese Inverted Flare Parallel Threads |
| Industrial Description | 6G-6FJISPX |
| Thread Size | 3/8-19 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 18 MM |
| Nut Hex Size | 22 MM |

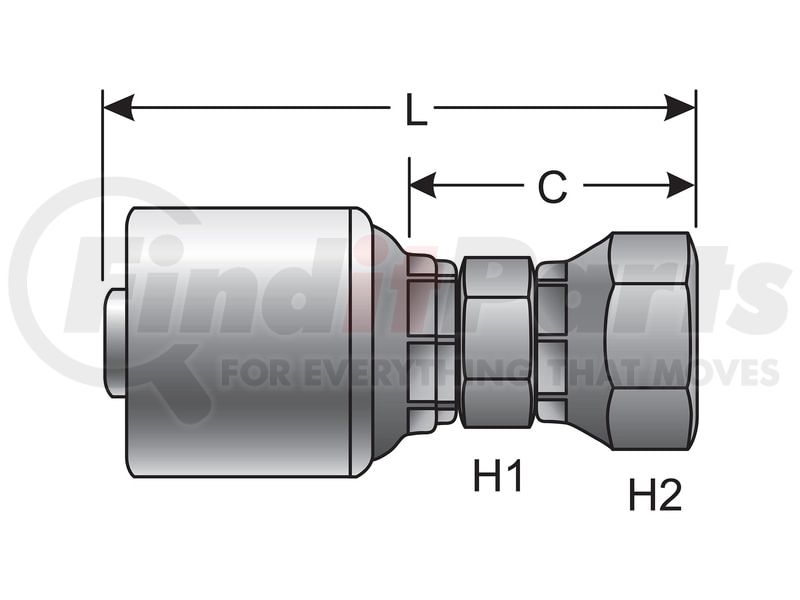

| Cut-Off Length | 1.03 IN |
| Length | 2.17 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 30 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | No |
| SAE or Metric Threads | Standard |
| Inside Diameter | 9.5 MM |
| Cut-Off Length | 26.2 MM |
| Length | 55 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075568315 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
