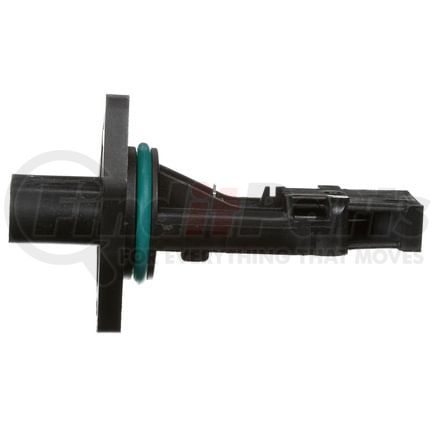

(888) 312-8812 Login SignupDELPHI AF10316 Mass Air Flow Sensor
MSRP: $142.22
$13849
Save $3.73
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
DELPHI AF10316 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10316 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Premium |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 38 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 47.00 MM |
| Mounting Hole Diameter | 5.5 MM |
| Seal Outside Diameter | 35 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.4 IN |
| Bolt Hole Center To Bolt Hole Center | 1.80 IN |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 1.3 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604241974 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10316 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 213-4560 |
| BWD | 21189, 221189, MA1127 |
| Beck/Arnley | 158-1426 |
| Bosch | 0281002461 |
| CARDONE Reman | 74-10157 |
| Carquest | MQ7381 |
| Dorman | 917-1026 |
| Echlin | XTP410157 |
| GLOBAL PARTS DISTRIBUTORS | 1813218 |
| N/A | DL-6123, 245-1248, 245-2248 |
| NAPA Reman Computers | XTP410157 |
| NGK SPARK PLUGS | MG0036 |
| NTK | MG0036 |
| STANDARD IGNITION | MAS0290 |
| Spectra Premium | MA314 |
| Standard Motor Products | MAS0290, MF21189 |
| VDO | A2C59513542 |
| VEMO | V10721038 |
| Volkswagen | 074 906 461 B, 074 906 461 BX |
| WAI | MAF10157 |
| WALKER PRODUCTS | 245-2248 |
DELPHI AF10316 Fits Vehicles
- Volkswagen Touareg (2004, 2006-2008)
- Volkswagen Passat (2004-2005)
