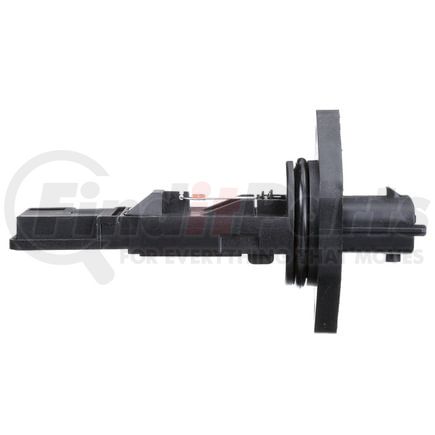

(888) 312-8812 Login SignupDELPHI AF10233 Mass Air Flow Sensor
MSRP: $247.69
$20749
Save $40.20
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI AF10233 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10233 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 38 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 47.00 MM |
| Mounting Hole Diameter | 5.6 MM |
| Seal Outside Diameter | 34.8 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.4 IN |
| Bolt Hole Center To Bolt Hole Center | 1.80 IN |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 1.3 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604239445 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10233 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2134193 |
| Airtex | 5S2774, 5S2956 |
| BMW | 13 62 7 830 359, 13 62 7 839 014 |
| BWD | 221150, MA1050, MA1212 |
| Beck/Arnley | 158-0887, 157-0367 |
| Blue Streak Electronics New | MF21150N |
| BorgWarner | 221150, 221175 |
| Bosch | 280217114, 280218065, 0280217114, 0280218062 |
| CARDONE New | 86-10099 |
| CARDONE Reman | 74-10099, 74-10125, 74-51001 |
| Carquest | MQ6304, MQ7373, MQ7410 |
| Dorman | 917-865 |
| Duralast | DL-3081, DL-6004 |
| Echlin | XTP451001 |
| GLOBAL PARTS DISTRIBUTORS | 1813172 |
| Mercedes-Benz | 000 094 09 48, 000 094 09 48 81 |
| N/A | 213-4193, 0000940948, 13627839014, 245-1079, MF21249, 245-1112, 245-2079, 245-2112, A 000 094 09 48 |
| NAPA Reman Computers | MAF610099, XTP410099, XTP451001 |
| NGK SPARK PLUGS | MG0126 |
| NTK | MG0126 |
| Richporter | MA108, MA127 |
| SPECTRA PREMIUM | MA108S |
| STANDARD IGNITION | MAS0380, MAS0181 |
| Spectra Premium | MA108, MA127 |
| Standard Motor Products | MF21150, MF21175, MAS0181, MAS0286, MAS0291, MAS0380 |
| VEMO | V20725208, V307200021, V10721221 |
| WALKER PRODUCTS | 245-2245, 245-1079 |
| Wells | SU6057, SU6622 |
DELPHI AF10233 Fits Vehicles
- BMW M6 (2006-2010)
- BMW Z4 (2006-2008)
- BMW M5 (2006-2010)
- Mercedes-Benz SLK230 (1998-2002)
- Mercedes-Benz C230 (1997-2000)
- BMW Z3 (2002)
- BMW M3 (2001-2006)
