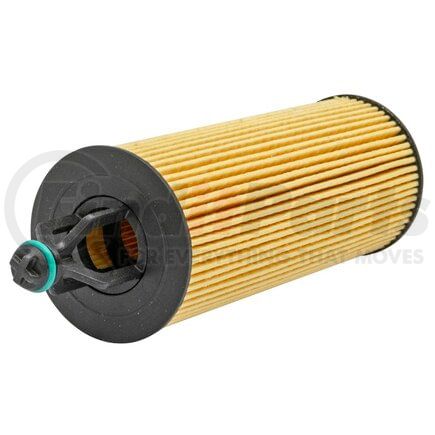

(888) 312-8812 Login SignupFRAM CH11665 Engine Oil Filter Element - 6.13" Height, Cellulose/Synthetic Media, with O-Rings
Tap to view 2 more
MSRP: $12.83
$899
Save $3.84
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
FRAM CH11665 Part Description
Manufacturer
Product Description
FRAM, CH11665, Oil Filter
Features & Benefits
- Fiber–resin structure manages fine particulate from high-pressure combustion
- End-cap sealing design helps prevent bypass during cold starts
- Outer mesh reinforcement improves resistance to collapse during oil surges
- Structural rigidity maintains uniform media spacing during extended high-temperature operation
Cartridge Oil Filter
Fram Engine Oil Filter Element
The Fram Engine Oil Filter Element is suited for engines that operate with tight internal clearances and require steady oil cleanliness over long service intervals. Its cellulose and synthetic media combination is shaped to trap fine contaminants while still promoting adequate flow at higher RPM levels. Included gaskets and O-rings are manufactured to tolerate the elevated temperatures and pressures produced by modern engines, which is crucial for maintaining a secure seal after extended thermal cycling. The element’s 6.13-inch height provides expanded filtration area, contributing to balanced dirt-holding capability during prolonged use. Whether paired with synthetic or conventional oils, the Fram CH11665 keeps lubrication pathways clear for consistent film strength.
FRAM CH11665 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 6.127 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.914 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.396 IN |
| O-ring Outside Diameter | 2.538 IN |
| O-ring Thickness | 0.142 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 1.990 in |
| Outer Diameter Top | 1.990 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.914 in |
| Torque Nut | No |
| Washable | No |
| Outer Diameter Bottom (Inch) | 1.990 |
| Top Inside Diameter (Inch) | 0.914 |
| O-Ring Outside Diameter (Inch) | 2.538 |
| O-Ring Inside Diameter (Inch) | 2.396 |
| Height (Inch) | 6.127 |
| O-Ring Thickness (Inch) | 0.142 |
| Bottom Inside Diameter (Inch) | 0.914 |
Additional Information
| Country of Origin (Primary) | BR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100554154 |
| UNSPSC | 15121501 |
FRAM CH11665 Part Interchanges
| Brand | Part Number |
|---|---|
| Champ | P1009, P1009XL |
| Mopar | MO-349 |
| Hastings | LF697 |
| K&N | HP-7026, PS-7026 |
| Pennzoil | PZ184 |
| Promotive | PH6296 |
| Group 7 | V6296 |
| Purolator | L36296 |
| Quaker State | QS173BLK, QS184 |
| Wix | WL10010, WL10010XP |
| Firestone | P1009 |
| Baldwin | P9600 |
| LUBER-FINER | P1009 |
| Carquest | 94010 |
| Service Champ | CF6296 |
| Certified | CCH11665 |
| Chrysler | 68191349AA, 68191349AB, 68191349AC |
| Hengst | E721H |
| Warner | WP1009 |
| Champion | 55010T, 55101T, COC11665, PH500 |
| Mobil 1 | M1C-456A |
| MicroGard | MGL10010 |
| Performax | PO-184 |
| NAPA ProSelect Filters | 2100010 |
| MotoMaster | MCH11665 |
| Valvoline | VO-114 |
| Defense Filters | DL11665 |
| STP | S11665 |
| Parts Master | WL610010, WL610010X |
| Premium Guard | PG6296, PG9925EX |
| PUREPRO | PL6296 |
| NAPA | 100010 |
| Purolator BOSS | PBL36296 |
| PurolatorONE | PL36296 |
| FVP | G0010 |
| Tough Guard | TG11665 |
| Carquest Standard Filters | R94010 |
| Mighty Distributing System | M1009 |
| ACDelco | PF600G |
| Factory Motor Parts | G0010 |
| STP Filters | S11665, S11665ML, S11665XL |
| NAPA Gold Filters | 100010 |
| Champion Filters | 55010T, 55101T, COC11665 |
| ECOGARD | S10040, X10040 |
| NAPA Platinum Filters | 4100010 |
| Warner Filters | WP1009 |
| PureZone | 8-10010 |
| Purolator TECH | TL36296 |
| FRAM Tough Guard | TG11665 |
| FRAM Ultra Synthetic | XG11665 |
| FRAM Core | COR11665ACC |
| FRAM Force | FF11665 |
| FRAM Titanium | FS11665 |
| FRAM Drive | FD11665 |
| FRAM Pro | FP11665BP |
| FRAM Synthetic Endurance | FE11665 |
| MicroGard Select | MSL10010 |
| Ferguson | G0010 |
FRAM CH11665 Fits Vehicles
- Suzuki Aerio (2002)
- Jeep Grand Cherokee WK (2022)
- Volkswagen Routan (2014)
- Chrysler Grand Caravan (2021-2024)
- Jeep Grand Cherokee L (2021-2024)
- Ram 1500 Classic (2019-2024)
- Chrysler Voyager (2020-2024)
- Jeep Gladiator (2020-2024)
- Chrysler Pacifica (2017-2024)
- Chrysler 300 (2011-2023)
- Jeep Wrangler JK (2018)
- Ram 1500 (2013-2025)
- Dodge Challenger (2011-2023)
- Dodge Grand Caravan (2011-2020)
- Jeep Grand Cherokee (2011-2024)
- Ram C/V (2012-2015)
- Dodge Avenger (2011-2014)
- Ram ProMaster 2500 (2014-2024)
- Ram ProMaster 1500 (2014-2024)
- Chrysler 200 (2011-2017)
- Dodge Durango (2011-2024)
- Jeep Cherokee (2014-2022)
- Dodge Charger (2011-2023)
- Dodge Journey (2011-2019)
- Jeep Wrangler (2012-2024)
- Ram ProMaster 3500 (2014-2024)
- Chrysler Town & Country (2011-2016)
FRAM CH11665 Cross References
FRAM CH11665 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM CH11665 Manufacturer Information
FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
