(888) 312-8812 Login SignupDELPHI HP10151 Fuel Pump Hanger Assembly
$13449
Limited availability at this price!
In Stock
Get it by Thursday, Aug 20
DELPHI HP10151 Part Description
Manufacturer
Product Description

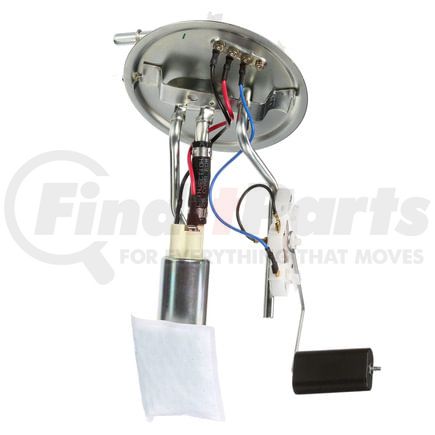

Fuel Pump Hanger Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Lower failure rates due to its innovative design and durability
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
DELPHI HP10151 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, (2) Retainer Clips, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 36 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Maximum Pressure | 73.0 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 10.0 82 |
| Resistance Ohms Full | 160.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 21.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Shape | Oval |
| Lock Ring Included | No |
| Connector Gender | Female |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 36 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | MX |
| UPC | 00689604218617 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10151 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F1087A |
| Airtex | E2042, E2076S, E2471 |
| AutoZone | DHP10151 |
| Bosch | 67008, 67100, 69117 |
| Carter | P74095, P74585S, P74591S |
| DENSO Auto Parts | 951-0016 |
| DORMAN | 692-104 |
| EVO Driveline | AFS0016P, AFS0036S, AFS0887P, RE0016P, RE0036S |
| Ford | E8DZ 9H307-C, E9DZ 9H307-C, F4DZ 9H307-AA |
| GMB | 525-6016 |
| Motorcraft | PFS-181 |
| N/A | E8DZ9H307C, E9DZ9H307C, F4DZ9H307AA, USEP2076S, C0003H, 4010793, 4017036 |
| Precision Fuel | A27042, A27056, E16006, E16037 |
| Spectra Premium | SP1113, SP231H, SP1161 |
DELPHI HP10151 Fits Vehicles
- Mercury Sable (1986-1995)
- Ford Taurus (1986-1995)
