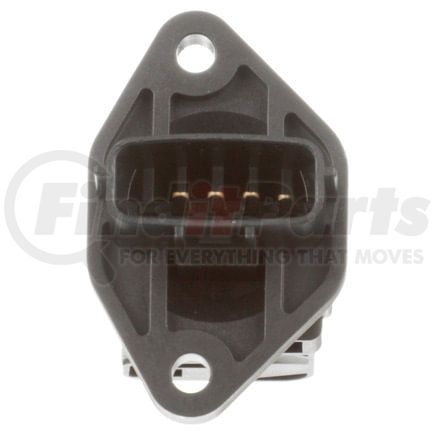

(888) 312-8812 Login SignupDELPHI AF10168 Mass Air Flow Sensor
MSRP: $164.71
$14599
Save $18.72
Limited availability at this price!
In Stock
Get it by Friday, Jun 12
DELPHI AF10168 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10168 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 38 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 47.00 MM |
| Mounting Hole Diameter | 5.6 MM |
| Seal Outside Diameter | 34.8 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.4 IN |
| Bolt Hole Center To Bolt Hole Center | 1.80 IN |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 1.3 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604222577 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10168 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2133372, 2134212 |
| Airtex | 5S2719, 5S2961, 5S2976 |
| BWD | 220096M, 22104M, 221079M, MA1022, MA1046, MA1232 |
| Beck/Arnley | 157-0322, 157-0323, 157-0324, 157-3024, 158-0734 |
| Blue Streak Electronics New | MF21079N |
| Bosch | 63129 |
| CARDONE New | 86-10072, 86-10088 |
| CARDONE Reman | 74-10072, 74-10073, 74-10088 |
| Carquest | MQ6247 |
| Datsun/Nissan | 22680AD22A, 22680-4W000, 22680-4W001, 22680-6N200, 22680-6N201, 22680-6N20A, 22680-AD200, 22680-AD201, B2680-6N20A, B2680-4W001 |
| Dorman | 917-810, 917-889 |
| Duralast | DL-3057, DL-6060, DL-6081, DL-6089 |
| HITACHI | MAF0092, MAF0094, MAF0097 |
| Hitachi Automotive | MAF0092, MAF0094, MAF0097, MAF0098 |
| N/A | 7410072, 7410073, 8610072, 641738, 226804W000, 226804W001, 226806N200, 226806N201, 226806N20A, 22680AD200, 22680AD201, 1570322, 1573024, 1580734, 214622, 245-1076, MF21079, MF21043N, 245-1132, 245-1160, 245-2132, 245-2160, MAS0493, DL-3058, DL-6157, MF20096N |
| NAPA Reman Computers | MAF610072, MAF610088, XTP410072, XTP410073, XTP410088 |
| NGK SPARK PLUGS | MG0030 |
| NTK | MG0030 |
| Richporter | MA205, MA140 |
| SPECTRA PREMIUM | MA901 |
| STANDARD IGNITION | MAS0144, MAS0153, MAS0175, MAS0400 |
| Spectra Premium | MA140, MA178, MA205, MA262, MA902 |
| Standard Motor Products | MF21043, MAS0144, MAS0175, MAS0400, MF20096 |
| WAI | MAF10168 |
| WALKER PRODUCTS | 245-2132 |
| Wells | 64-1738, SU5320, SU5353, SU6483 |
DELPHI AF10168 Fits Vehicles
- Nissan Sentra (2000-2001)
- INFINITI QX4 (2001-2003)
- Nissan Pathfinder (2001-2003)
- Nissan Maxima (2000-2002)
- INFINITI I35 (2002)
- INFINITI I30 (2000-2001)
- INFINITI G20 (2000-2002)
