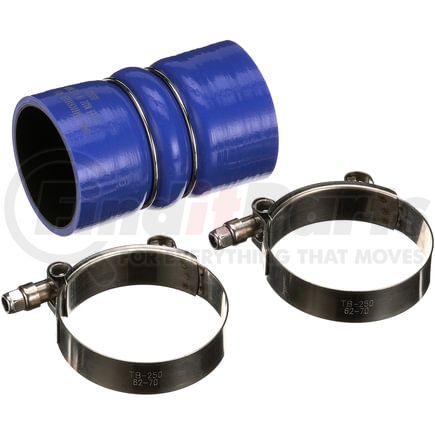

Gates 26259 - Molded Turbocharger Hose Kit
$6649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Molded Turbocharger Hose Kit
Application Summary
2016-05 Chevrolet, Silverado Series Pickup, V-8 6.6 L Diesel, Turbo To Pipe (Hot Side)
Features & Benefits
- High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
- Increased durability due to multiple layers of reinforcement, resulting in longer service life
- Specially formulated oil-resistant Fluorelastomer liner prevents damage
- T-bolt clamps with stainless steel band and bridge both resist corrosion and provide higher torque for optimal sealing
Product Attributes
| Grade Type | OE Improved |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Centerline Length | 4 IN |
| End 1 Inside Diameter | 2.322 in |
| End 2 Inside Diameter | 2.322 in |
| Minimum Clamping Length | 2.5 IN |
| Maximum Clamping Length | 2.81 IN |
| Clamp Band Width | .75 IN |
| Bolt Type | .25 in. - 28 T-Bolt |
| Nut Type | .4375 in. Hex-Head w/ Nylon Insert |
| Recommended Torque | 75 PPI |
| Ring Quantity | 2 |
| Centerline Length | 102 MM |
| End 1 Inside Diameter | 59 MM |
| End 2 Inside Diameter | 59 MM |
| Minimum Clamping Length | 63.5 MM |
| Maximum Clamping Length | 71.4 MM |
| Clamp Band Width | 19.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075621089 |
| VMRS Code | 041003014 |
| UNSPSC | 40142000 |
Part Interchanges
Fits Vehicles
- GMC Sierra 3500 (2005-2006)
- Chevrolet Silverado 2500 HD Classic (2007)
- Chevrolet Silverado 3500 (2005-2006)
- Chevrolet Silverado 3500 Classic (2007)
- GMC Sierra 2500 HD (2005-2006, 2008-2016)
- Chevrolet Silverado 2500 HD (2005-2016)
- GMC Sierra 3500 HD (2008-2016)
- Chevrolet Silverado 3500 HD (2007-2016)
