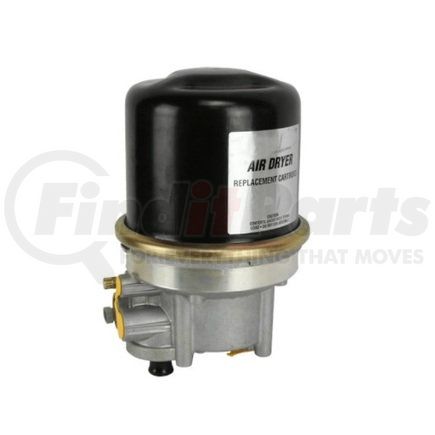

(888) 312-8812 Login SignupBENDIX 065613 Air Dryer
Tap to view 6 more
$1,00199
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 1
BENDIX 065613 Part Description
Manufacturer
Product Description
Air Dryer
Features & Benefits
- Extracts water vapor to help prevent brake valve freezing in cold weather
- Captures compressor oil droplets that can damage seals and O-rings
- Automatic purge cycle clears collected moisture and contaminants from the dryer
- Integrated heater helps protect the exhaust port from ice buildup
Bendix Air Brake Dryer
Block moisture and oil from entering the pneumatic system with the Bendix Air Brake Dryer. This AD-IP Series Bendix 065613 filtration unit removes water vapor and compressor blow-by before they reach valves, reservoirs, and ABS components. The desiccant cartridge captures moisture from compressed air, while the purge function expels collected contaminants through the exhaust valve. Cleaner, drier air helps protect brake system reliability in cold, wet, and high-mileage operating conditions.
BENDIX 065613 Specifications
Product Attributes
| Air Dryer Type | Stand-Alone |
| Body Mounting | 3/8-16 UNC-2B (4x) |
| Cartridge Stabilizer Ring Included | Not applicable to this part |
| Cartridge Thread | 1 1/4-7 UNC-2B |
| Cartridge Type | Standard |
| Clamp Band Angle (CW from SUP) | Not applicable to this part |
| Clearance to Remove Cartridge | .50 IN |
| Control Port | 1/4-18 NPT |
| Cut-In Pressure | Not applicable to this part |
| Cut-Out Pressure | Not applicable to this part |
| Delivery Port 1 | 1/2-14 NPT |
| Delivery Port 2 | Not applicable to this part |
| Extended Purge Port | 1/8-27 NPT (Plugged) |
| Governor Included | No |
| Governor Mounting Bracket | Not applicable to this part |
| Governor Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Governor Type | Not applicable to this part |
| Heater / Thermostat Rating | 24V / 90W |
| Heater Connector Color | Gray |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Lower Mounting Bracket | .41 IN x 1.15 IN Slot (2x) |
| Lower Mounting Bracket Angle (CCW from SUP) | Loose in Box |
| Market Indicator | Aftermarket New |
| Maximum Inlet Temperature | 160 AdegF (71 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Purge Exhaust Port | Standard |
| Purge Valve Type | Soft Seat |
| Purge Volume | Standard |
| Remote Fill Feature | Not applicable to this part |
| Remote Purge Port | Not applicable to this part |
| Safety Valve Opening Pressure | 200 PSI |
| Supply Port | 1/2-14 NPT |
| Turbo Cut-off Function | Not applicable to this part |
| Upper Mounting Bracket | .41 IN x 1.15 IN Slot (2x) |
| Upper Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Upper Mounting Bracket Height (from Lower Mounting Bracket) | Loose in Box |
| Upper Mounting Type | Cable |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078353363 |
| VMRS Code | 013010252 |
BENDIX 065613 Cross References
| Brand | Part Number |
|---|---|
| BW065613 | |
| N/A | 065624 |
| WORLD AMERICAN | WA1315613 |
