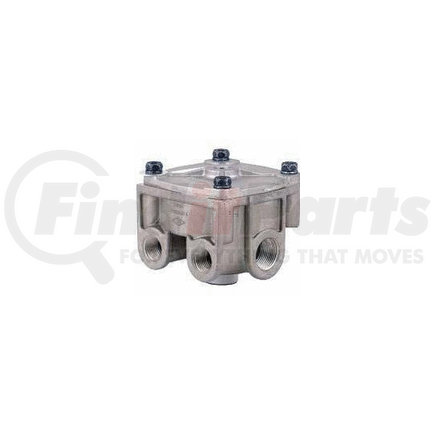

(888) 312-8812 Login SignupBENDIX 65546 R-12 Air Brake Relay Valve, Service New
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
BENDIX 65546 Part Description
BENDIX® AIR BRAKE RELAY VALVE
| Mounting: | .96 in. x .40 in. Slot (4x) |
| Supply Port 1: | 1/2-14 NPT |
| Supply Port 2: | 1/2-14 NPT |
| Maximum Operating Temperature: | 200 °F (93 °C) |
| Minimum Operating Temperature: | -40 °F (-40 °C) |
| Exhaust Port: | Dust Shield |
| Body Configuration: | 2 SUP / 2 DEL (H) |
| Control Secondary Service Port: | 1/4-18 NPT |
| Delivery Port 1: | 1/2-14 NPT |
| Delivery Port 2: | 1/2-14 NPT |
| Crack Pressure: | 4.0 PSI |
| TMC Washer: | RV040 |
| Mounting Bracket Location: | Loose in. Box |
Bendix R-12 Air Brake Relay Valve
The Bendix R-12 air brake relay valve works as a remote controlled brake valve designed to deliver or release air to the chambers when control air is delivered to it from the foot brake valve or other source. Because of this critical function, this service new product is engineered using state-of-the-art technology to ensure maximum performance even under harsh operating conditions.
Features & Benefits
- Helps speed up the application and release of the air brakes
- Usually mounted at the rear of the vehicle close to the chambers it serves
- Designed for either frame or reservoir mounting
- Comes with a universal mounting bracket to allow ease of interchange with other Bendix relay valves
- All Bendix R-12 parts are interchangeable with R-14 valve components, except the valve cover
- Makes extensive use of non-metallic internal components
- Offers ease of servicing since the inlet/exhaust valve can be replaced without removing the line
BENDIX 65546 Specifications
Product Attributes
| Related Part Number | Spare Part/Kit; 109523 |
| Gross Weight | 1.36 KG |
| Net Weight | 1.36 KG |
BENDIX 65546 Cross References
BENDIX 65546 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX 65546 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
