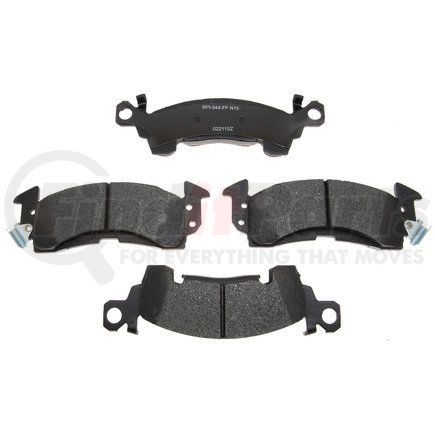

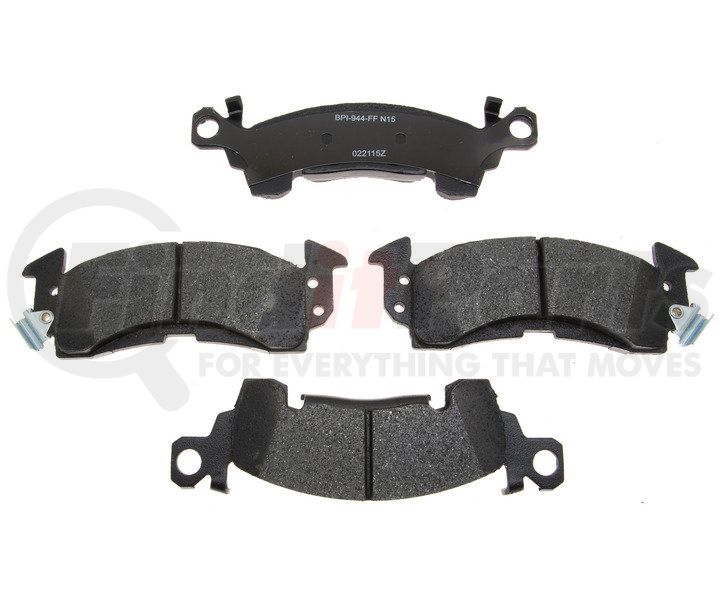

(888) 312-8812 Login SignupRAYBESTOS MGD52M Brake Parts Inc Raybestos R-Line Metallic Disc Brake Pad Set
$20.77
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS MGD52M Part Description
Manufacturer
Product Description
Raybestos R-Line Metallic Brake Pad Set
Application Summary
1986-1975 Chevrolet C10 Front, 1996-1968 Chevrolet Caprice Front, 2002-1985 Chevrolet Astro Front, 1981-1969 Chevrolet Camaro Front, 1986-1975 Chevrolet K10 Front, 1974-1970 Chevrolet C10 Pickup Front, 1995-1975 Chevrolet G20 Front
Features & Benefits
- Ceramic and Semi-Metallic Formulations:
- Ceramic or semi-metallic materials consistent with OE fit, form, and function.
- Noise Dampening Shims
- Multi-layered steel shims for optimal noise damping.
- OE Matched Slots and Chamfers
- Slots & chamfers match OE design, allowing for less noise, vibration, and harshness.
- Hardware
- Hardware included, where applicable.
RAYBESTOS MGD52M Specifications
Product Attributes
| FMSI Number | D52-728A |
| Friction Material Composition | Metallic |
| Inner Pad Height | 2.570 in |
| Inner Pad Overall Thickness | 0.570 IN |
| Inner Pad Width | 7.220 in |
| Outer Pad Height | 2.450 IN |
| Outer Pad Overall Thickness | 0.510 in |
| Outer Pad Width | 7.770 IN |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8708301900 |
| Harmonized Tariff Code (HTS) | 8708305040 |
| UPC | 00887213101331 |
RAYBESTOS MGD52M Cross References
| Brand | Part Number |
|---|---|
| ABB | S-728A |
| ACDelco | 171-435, 171-436, 171-459, 171-460, 171-461, 171-479, 171-563, 171-567, 171-633 |
| AGNA Brakes | ALD52C, ALD52M |
| Advance Auto Parts | GMKD52, GNAD52, MKD52, PMD52H, PXD52H |
| American Remanufactured | 62-D52, 63-D52, 64-D52, 66-D52, 68-D52, 762-D52, 763-D52 |
| AutoZone | DG052NS, DG052S, D52SD |
| Autopart International | 93139 |
| Autospecialty | 14-052-12, 15-052-12, 16-052-12, 22-052-02, 24-052-01, 24-052-02, 24-052-04, 25-052-02, 25-052-04, 26-052-01, 26-052-02, 26-052-04, 27-052, 27-052-03, 28-052, 28-052-03 |
| Autoxtra | AD52, SMD52, UCD52 |
| Bendix | AFD52, AFD52S, D52, D52S, MKD52, MKD52F, MKD52FM, MKD52S, MKD52SF, MKD52SFM, MKD52SUV, MRD52S, PMD52S, RD52S, SBC52 |
| Bosch | BP52S |
| Brake Pro | 4920052, 4940052, 4950052, 4970052, 4970313, 4979052, 4990052 |
| BrakeBest | D52, SC52, SM52 |
| Centric Parts | 101.00520, 102.00520, 103.00520, 104.00520, 104.00521, 105.00520, 105.00521, 105.00522, 106.00520, 107.00520, 108.00520, 109.00520, 300.00520, 301.00520, 305.00520, 306.00520, 308.00520, 309.00520, 500.00520 |
| Certified Division | D435 |
| Chrysler | 83501356, 83504371, 8983501356, J8124509 |
| Delphi | CL14, CL309 |
| EIS Brakes | D52, DE313, DE52, DM52, DX313, DX52, MX52, QMX52 |
| FRITEC | 728-AZ |
| Formula Blue Hydraulic Brake Parts | E10700520, E10900520, E11100520 |
| General Motors | 1154116, 1154118, 1154121, 1154578, 12300213, 12300253, 12300254, 12321434, 12321435, 12321436, 12321452, 12321457, 12321458, 12370017, 12510010, 12510015, 12510032, 12510038, 18004633, 18005596, 18012724, 18017252, 18018627, 18019019, 18019020, 18021455, 18022097, 18023788, 18024904, 18024914, 18024920, 18024921, 18024925, 18024938, 18043837, 12300192 |
| Guardian | 61-52, 65-313, 65-52 |
| Ideal | PMD52, TCD52 |
| Inwood Automotive Products | D52, DMX52, PDMX52, S52, SP52, SPQ52, TXD52 |
| KEM | CMD52, D52, MD52, MXD52, PXD52, XD52 |
| MAGMA PRODUCTS | PMD52M |
| Midas | BP01606, BP1028M, BP1441, BP1564M, BP1606 |
| Mintex | MDB1594 |
| Monroe Brakes | DX52, FX52 |
| Morse | CMX52, D52, D52S, MKD52, MKD52S, MX52S, NX52S, SXE52S |
| Perfect Stop | PC52 |
| Performance Friction | 0052.10, 0052.20, 0052.30, 0052.80, 0524, 052C, 052SM, 052Z |
| PowerStop | 16-052, 17-052, PM18-052, Z23-052, Z36-052 |
| Rockhill | D52, D52S, MD52, MD52A |
| Satisfied | CL52, FL52, PD52, PR52, PR52C, SU52 |
| WVA | 220215, 220216 |
| Wagner Brake | D52, D52C, EC52, EX52, FD52, LT52, LT728A, MD52, MX313, MX52, MX7214, MX7214R, MX728A, MX728AR, NA52, NA728AR, PD52, PD728AR, PS52C, PX313, PX52, PX7214R, PX728AR, QC52, SX313, SX52, SX728A, ZD52, ZX52, OEX52 |
| Western Brakes | AFRD52, WOD52, WSD313, WSD52 |
RAYBESTOS MGD52M Fits Vehicles
- Buick Apollo (1973-1975)
- Buick Centurion (1971-1973)
- Buick Century (1973-1977)
- Buick Commercial Chassis (1991-1996)
- Buick Electra (1970-1989)
- Buick Estate Wagon (1970-1983)
- Buick GS (1970-1972)
- Buick GS 350 (1969)
- Buick GS 400 (1969)
- Buick GS 455 (1970-1972)
- Buick LeSabre (1970-1990)
- Buick Regal (1973-1977)
- Buick Riviera (1970-1978)
- Buick Roadmaster (1991-1996)
- Buick Skylark (1969-1972, 1975-1979)
- Buick Special (1969)
- Buick Sportwagon (1969-1972)
- Buick Wildcat (1970)
- Cadillac Brougham (1987-1992)
- Cadillac Calais (1968-1976)
- Cadillac Commercial Chassis (1967-1984, 1992-1996)
- Cadillac DeVille (1968-1984)
- Cadillac Eldorado (1969-1978)
- Cadillac Fleetwood (1967-1986, 1993-1996)
- Cadillac Seville (1976-1979)
- Checker A11 (1970-1974)
- Checker A11E (1970-1974)
- Checker Aerobus (1969-1974)
- Checker Deluxe (1969-1970)
- Checker Marathon (1969-1982)
- Checker Taxicab (1969-1974)
- Chevrolet Astro (1985-2002)
- Chevrolet Bel Air (1968-1975, 1981)
- Chevrolet Biscayne (1968-1972)
- Chevrolet Blazer (1969-1974, 1987-1991)
- Chevrolet Brookwood (1969-1972)
- Chevrolet C10 (1975-1986)
- Chevrolet C10 Pickup (1970-1974)
- Chevrolet C10 Suburban (1970-1986)
- Chevrolet C20 (1975-1986)
- Chevrolet C20 Pickup (1971-1974)
- Chevrolet C20 Suburban (1971-1986)
- Chevrolet C30 (1975-1978)
- Chevrolet C30 Pickup (1971-1974)
- Chevrolet Camaro (1969-1981)
- Chevrolet Caprice (1968-1996)
- Chevrolet Chevelle (1969-1973)
- Chevrolet Commercial Chassis (1991-1994)
- Chevrolet El Camino (1969-1977)
- Chevrolet Estate (1969-1970)
- Chevrolet G10 (1975-1995)
- Chevrolet G10 Van (1971-1974)
- Chevrolet G20 (1975-1995)
- Chevrolet G20 Van (1971-1974)
- Chevrolet G30 (1975-1984)
- Chevrolet G30 Van (1971-1974)
- Chevrolet Impala (1968-1985)
- Chevrolet K10 (1975-1986)
- Chevrolet K10 Pickup (1971-1974)
- Chevrolet K10 Suburban (1971-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K20 Pickup (1971-1974)
- Chevrolet K20 Suburban (1971-1986)
- Chevrolet K30 Pickup (1971-1974)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Kingswood (1969-1972)
- Chevrolet Laguna (1973-1976)
- Chevrolet Malibu (1973-1977)
- Chevrolet Monte Carlo (1970-1977)
- Chevrolet Nova (1969-1979)
- Chevrolet P10 (1975-1980)
- Chevrolet P10 Van (1971-1974)
- Chevrolet P20 (1975-1989)
- Chevrolet P20 Van (1971-1974)
- Chevrolet P30 (1975-1978)
- Chevrolet P30 Van (1971-1974)
- Chevrolet R10 (1987)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R20 (1987-1988)
- Chevrolet R20 Suburban (1987)
- Chevrolet Townsman (1969-1972)
- Chevrolet V10 (1987)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V20 (1987)
- Chevrolet V20 Suburban (1987)
- GMC C15 (1975-1978)
- GMC C15 Suburban (1975-1978)
- GMC C15/C1500 Pickup (1970-1974)
- GMC C15/C1500 Suburban (1970-1974)
- GMC C1500 (1979-1986)
- GMC C1500 Suburban (1979-1986)
- GMC C25 (1975-1978)
- GMC C25 Suburban (1975-1978)
- GMC C25/C2500 Pickup (1971-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C2500 (1979-1986)
- GMC C2500 Suburban (1979-1986)
- GMC C35 (1975-1978)
- GMC C35/C3500 Pickup (1971-1974)
- GMC G15 (1975-1978)
- GMC G15/G1500 Van (1971-1974)
- GMC G1500 (1979-1995)
- GMC G25 (1975-1978)
- GMC G25/G2500 Van (1971-1974)
- GMC G2500 (1979-1995)
- GMC G35 (1975-1978)
- GMC G35/G3500 Van (1971-1974)
- GMC G3500 (1979-1984)
- GMC Jimmy (1970-1991)
- GMC K15 (1975-1978)
- GMC K15 Suburban (1975-1978)
- GMC K15/K1500 Pickup (1971-1974)
- GMC K15/K1500 Suburban (1971-1974)
- GMC K1500 (1979-1986)
- GMC K1500 Suburban (1979-1986)
- GMC K25 (1975-1978)
- GMC K25 Suburban (1975-1978)
- GMC K25/K2500 Pickup (1971-1974)
- GMC K25/K2500 Suburban (1971-1974)
- GMC K2500 (1979-1986)
- GMC K2500 Suburban (1979-1986)
- GMC K35/K3500 Pickup (1971-1972)
- GMC P15 (1975-1978)
- GMC P15/P1500 Van (1970-1974)
- GMC P1500 (1979-1980)
- GMC P25 (1975-1978)
- GMC P25/P2500 Van (1971-1974)
- GMC P2500 (1979-1989)
- GMC P35 (1975-1978)
- GMC P35/P3500 Van (1971-1974)
- GMC R1500 (1987)
- GMC R1500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R2500 Suburban (1987)
- GMC Safari (1985-2002)
- GMC Sprint (1971-1977)
- GMC V1500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V2500 Suburban (1987)
- Jeep Cherokee (1974-1983)
- Jeep Grand Wagoneer (1984-1991)
- Jeep J10 (1974-1988)
- Jeep J20 (1974-1988)
- Jeep Wagoneer (1974-1983)
- Oldsmobile 442 (1969-1971)
- Oldsmobile 98 (1969-1984)
- Oldsmobile Custom Cruiser (1971-1992)
- Oldsmobile Cutlass (1967, 1969-1978)
- Oldsmobile Cutlass Salon (1975-1977)
- Oldsmobile Cutlass Supreme (1969-1977)
- Oldsmobile Cutlass Tiara (1976)
- Oldsmobile Delta 88 (1970-1985)
- Oldsmobile F85 (1969-1972)
- Oldsmobile Omega (1973-1979)
- Oldsmobile Toronado (1969-1978)
- Oldsmobile Vista Cruiser (1969-1975)
- Pontiac Acadian (1969-1971)
- Pontiac Bonneville (1969-1981)
- Pontiac Catalina (1969-1981)
- Pontiac Executive (1969-1970)
- Pontiac Firebird (1969-1981)
- Pontiac GTO (1969-1973)
- Pontiac Grand Am (1973-1975)
- Pontiac Grand LeMans (1975-1977)
- Pontiac Grand Prix (1969-1977)
- Pontiac Grand Safari (1971-1978)
- Pontiac Grandville (1971-1975)
- Pontiac Laurentian (1976-1981)
- Pontiac LeMans (1969-1977)
- Pontiac Parisienne (1969-1974, 1976-1986)
- Pontiac Phoenix (1977-1979)
- Pontiac Safari (1987-1989)
- Pontiac Tempest (1969-1970)
- Pontiac Ventura (1971-1977)
RAYBESTOS MGD52M Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS MGD52M Questions & Answers
No questions yet
Be the first to ask a question about this product!
