(888) 312-8812 Login SignupRAYBESTOS 980949R Raybestos R-Line Brake Rotor
$28.12
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980949R Part Description
Manufacturer
Product Description

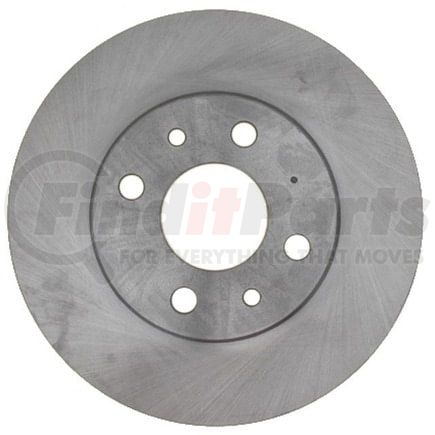

Raybestos R-Line Brake Rotor
Application Summary
2019-2009 Fiat 500 Rear, 2012-2011,2009-2007 Fiat Panda Front, 2017-2015 Ram 700 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980949R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.323 IN |
| Center Hole Diameter | 59 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.362 IN |
| Discard Thickness | 9.2 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 5.709 IN |
| Inside Diameter | 145 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Mounting Bolt Hole Circle Diameter | 98 MM |
| Mounting Bolt Hole Diameter | 3.858 IN |
| Mounting Bolt Hole Diameter | 98 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.433 IN |
| Nominal Thickness | 11 MM |
| Outside Diameter | 9.461 IN |
| Outside Diameter | 240.3 MM |
| Overall Height | 1.575 IN |
| Overall Height | 40 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352987339 |
RAYBESTOS 980949R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH324570P |
| ATE BRAKE PRODUCTS | SP00025 |
| AUTOPARTSOURCE | 491425 |
| AUTOXTRA | AX901086 |
| AUTOZONE | 45564, 45564DG |
| AutoZone | 45564DL |
| BENDIX | BPR6121 |
| BOSCH | 19010307 |
| BRAKEBEST | 19010307, 980949FZN, 980949R, 980949RGS |
| BREMBO | 08.5085.1X, 08.5085.11 |
| CENTRIC | 120.04001CRY, 121.04001 |
| Centric Parts | 120.04001, 120.04001CRY |
| DURA CORP | BR901086 |
| DuraGo | BR901086 |
| FIAT | 5154238AA, 51859078, 05154238AA |
| FORD | 1715410 |
| MAGMA PRODUCTS | PMR143076 |
| N/A | 120.04005, 121.04001, 121.04005, 126.04001CSL, 126.04001CSR, 126.04001SL, 126.04001SR, 126.04005SL, 126.04005SR, 127.04001L, 127.04001R, 127.04005L, 127.04005R, 128.04001CL, 128.04001CR, 128.04001L, 128.04001R, 128.04005CL, 128.04005CR, 128.04005L, 128.04005R, 320.04001 |
| NAPA BRAKES | SDK6092 |
| NEWTEK AUTOMOTIVE | 31598 |
| Newtek Automotive USA | 31598 |
| POWERSTOP | EBR1298EVC |
| QUALIS | 45564 |
| TopNotch | TN980949GEO |
| UAP | R04001 |
| Ultra Brake | FI-902 |
| WAGNER BRAKE | BD180461 |
| WORLDPAC | 1407-324570, 1427-523993 |
RAYBESTOS 980949R Fits Vehicles
- Ram 700 (2015-2017)
- Fiat 500 (2009-2019)
- Fiat Panda (2007-2009, 2011-2012)
