Raybestos 980276R - Raybestos R-Line Brake Rotor
$4899
MSRP: $92.28
Save: $43.29
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description

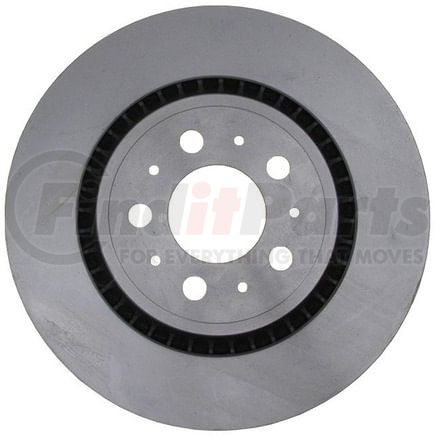

Raybestos R-Line Brake Rotor
Application Summary
2014-2003 Volvo XC90 Rear
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 12.126 IN |
| Outside Diameter | 308 MM |
| Overall Height | 2.543 IN |
| Overall Height | 64.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213026122 |
Part Interchanges
- Volvo 31423152
- Volvo 314231520
- Volvo 31471824
- Volvo 8624926
- Volvo 86249260
- Volvo 86249265
- Bosch 52011371
- Brembo 25820
- Mighty Distributing System 34256
- Wagner Brake BD126190
- Bendix 145553
- VIPAR - Vehicle Indusrty Parts & Manufacturing X51642
- BrakeBest 52011371
- BrakeBest 980276
- BrakeBest 980276FZN
- BrakeBest 980276R
- BrakeBest 980276RGS
- Centric Parts 120.39033
- Centric Parts 121.39033
- Centric Parts 125.39033
- Centric Parts 125.39033CRY
- Centric Parts 126.39033CSL
- Centric Parts 126.39033CSR
- Centric Parts 126.39033SL
- Centric Parts 126.39033SR
- Centric Parts 127.39033CL
- Centric Parts 127.39033CR
- Centric Parts 127.39033L
- Centric Parts 127.39033R
- Centric Parts 128.39033CL
- Centric Parts 128.39033CR
- Centric Parts 128.39033L
- Centric Parts 128.39033R
- Centric Parts 320.39033
- Centric Parts 320.39033H
- WABCO - Archived PS126190
- AutoZone 34256
- AutoZone 34256DG
- Advance Auto Parts N1000134715ZIC
- Advance Auto Parts YH145553
- Advance Auto Parts YH145553C
- Advance Auto Parts YH145553P
- Autoxtra 80980276
- Autoxtra AX34256
- Casting Numbers 326202
- Dura Corp BR34256
- Pilenga V266
- PAGID Racing 355110612
- Qualis 34256
- Winhere 6620157
- Newtek Automotive USA 34256
- TRW 4338
- TRW DF4338S
- Promax 14-34256
- UAP 34256
- NAPA BRAKES SDK6131
- NAPA BRAKES TSR7098
- Wagner Brake BD126190E
- Centric Parts 321.39033
- DuraGo BR34256
RAYBESTOS 980276R Cross Reference
We have 57 alternatives for the 980276R by RAYBESTOS:
- BENDIX 145553
- BOSCH 52011371
- PAGID 355110612
- VOLVO 31423152
- VOLVO 314231520
- VOLVO 31471824
- VOLVO 8624926
- VOLVO 86249260
- VOLVO 86249265
- WABCO PS126190
- ADVANCE AUTO PARTS N1000134715ZIC
- ADVANCE AUTO PARTS YH145553C
- ADVANCE AUTO PARTS YH145553P
- ADVANCE AUTO PARTS YH145553
- AUTOXTRA 80980276
- AUTOXTRA AX34256
- AUTOZONE 34256
- AUTOZONE 34256DG
- BRAKEBEST 52011371
- BRAKEBEST 980276
- BRAKEBEST 980276FZN
- BRAKEBEST 980276R
- BRAKEBEST 980276RGS
- BREMBO 25820
- CENTRIC 120.39033
- CENTRIC 121.39033
- CENTRIC 125.39033
- CENTRIC 125.39033CRY
- CENTRIC 126.39033CSL
- CENTRIC 126.39033CSR
- CENTRIC 126.39033SL
- CENTRIC 126.39033SR
- CENTRIC 127.39033CL
- CENTRIC 127.39033CR
- CENTRIC 127.39033L
- CENTRIC 127.39033R
- CENTRIC 128.39033CL
- CENTRIC 128.39033CR
- CENTRIC 128.39033L
- CENTRIC 128.39033R
- CENTRIC 320.39033
- CENTRIC 320.39033H
- CENTRIC 321.39033
- DURA CORP BR34256
- MIGHTY DISTRIBUTING SYSTEM 34256
- NAPA BRAKES SDK6131
- NAPA BRAKES TSR7098
- NEWTEK AUTOMOTIVE 34256
- PILENGA V266
- PROMAX 14-34256
- QUALIS 34256
- TRW 4338
- TRW DF4338S
- UAP 34256
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X51642
- WAGNER BRAKE BD126190
- WINHERE 6620157
Fits Vehicles
- Volvo XC90 (2003-2014)
