(888) 312-8812 Login SignupRAYBESTOS 681013R Raybestos R-Line Brake Rotor
MSRP: $83.91
$7899
Save $4.92
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
RAYBESTOS 681013R Part Description
Manufacturer
Product Description

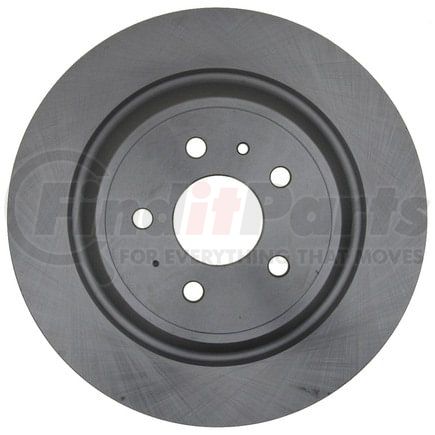

Raybestos R-Line Brake Rotor
Application Summary
2020-2013 Ford Fusion Rear, 2019-2017 Ford Escape Rear, 2019-2015 Lincoln MKC Rear, 2016-2013 Lincoln MKZ Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 681013R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.374 IN |
| Discard Thickness | 9.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.819 IN |
| Inside Diameter | 224 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.541 IN |
| Mounting Bolt Hole Diameter | 13.75 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.433 IN |
| Nominal Thickness | 11 MM |
| Outside Diameter | 12.441 IN |
| Outside Diameter | 316 MM |
| Overall Height | 2.004 IN |
| Overall Height | 50.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213080131 |
RAYBESTOS 681013R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH527285P |
| AUTOXTRA | AX901168 |
| AUTOZONE | 75020DG, 75020DL |
| Autoxtra | AX901168P |
| BENDIX | PRT6226 |
| BRAKEBEST | 611011RGS, 681013, 681013R |
| Brembo | 08.N258.21, 08.N258.2X |
| CENTRIC | 120.61107, 121.61107, 126.61107SL, 126.61107SR, 320.61107, 121.61113 |
| Centric Parts | 120.61107, 121.61107, 126.61107SL, 126.61107SR, 320.61107 |
| DURA CORP | BR901168 |
| DuraGo | BR901168 |
| Dynamic Friction Company | 600-54072 |
| FORD | DG9Z2C026B, DG9Z2C026D, KJ5Z2C026A |
| Ford | KU2Z2V026C |
| MAGMA PRODUCTS | PMR205251 |
| MOTORCRAFT | BRRF398 |
| Motorcraft | BRRF314, NBRR106, NBRR112 |
| NEWTEK AUTOMOTIVE | R1168, R1426 |
| Newtek Automotive USA | R1168, R1426 |
| POWERSTOP | AR85166EVC |
| PROMAX | 14-54195 |
| Qualis | 42290 |
| TopNotch | TN681013GEO |
| UAP | 2901166 |
| WORLDPAC | 1407-527285, 1427-613663 |
| WORLDPARTS | WS1-154195 |
| Wagner Brake | BD180653E, BD180699E |
| Winhere | 6611011 |
RAYBESTOS 681013R Fits Vehicles
- Ford Escape (2017-2019)
- Lincoln MKC (2015-2019)
- Lincoln MKZ (2013-2016)
- Ford Fusion (2013-2020)
