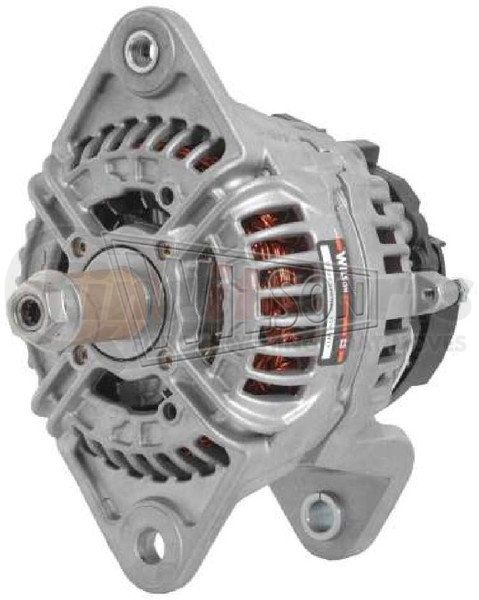

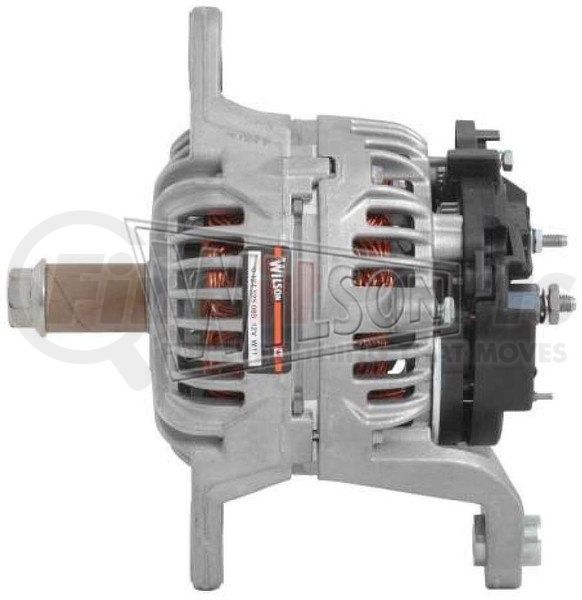

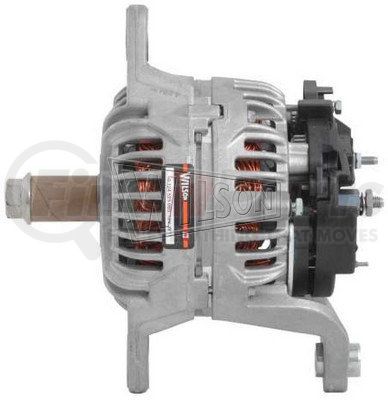

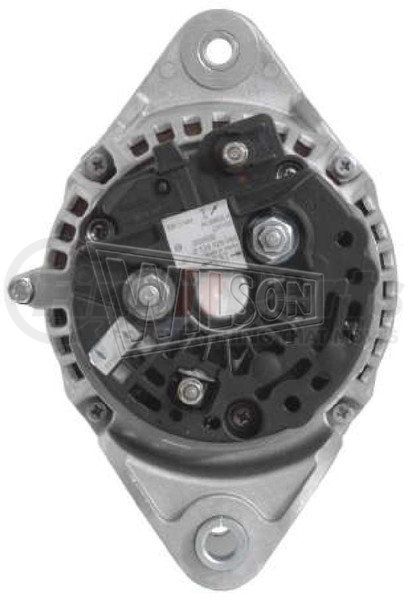

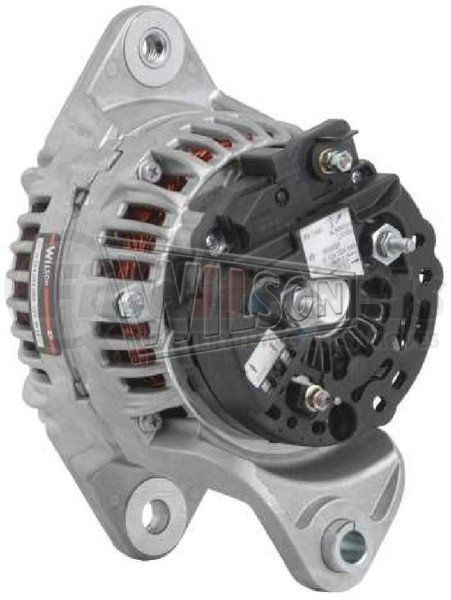

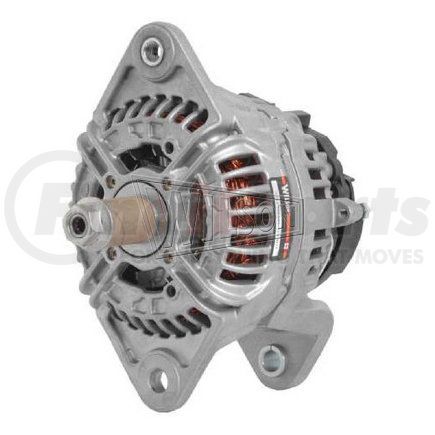

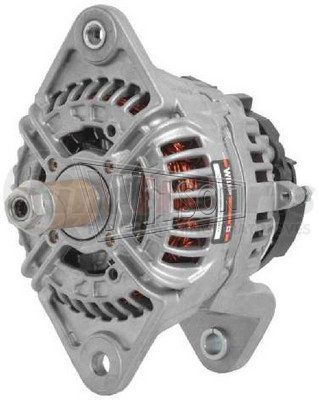

Name: Wilson HD Rotating Elect 90-15-6424N E8 Series Alternator - 12v, 160 Amp
SKU: 90156424n
Price: 381.49 USD
Availability: InStock

WILSON HD ROTATING ELECT part description

Technical Specification:

Series	E8
OE Manufacturer	BOSCH
Voltage	12
Amperage Rating	160
Clocking	1:30 Bat Term
Mount Type	J180
Regulator Type	Internal
External Regulator Included	No
Fan Type	Internal
External Fan Included	No
UPC	661432131467
VMRS Code	031001000
Harmonized Tariff Code	8511500000

Application Summary:

1991-2007 Blue Bird All American FE
1991-2014 Blue Bird All American RE
1992-2007 Blue Bird Commercial Bus
1996-2007 Blue Bird SHL Commercial
1993-2003 Blue Bird SHL TC2000
1997-2000 Blue Bird TC1000
1989-2004 Blue Bird TC2000
1993-1993 Blue Bird Wanderlodge
2003-2003 Thomas Saf-T-Liner
2003-2003 Thomas Transit Liner

Product Description

ALTERNATOR NEW, BO IR/IF E8 12V 160A

Application Summary

1981: AGCO ALLIS, AGCO GLEANER, AGCO STAR, AGCO WHITE, BLUE BIRD, CASE, CATERPILLAR, CHAMPION, CUMMINS, FORD, JOHN DEERE, KENWORTH, MACK, MASSEY FERGUSON, NEW HOLLAND, PETERBILT, THOMAS BUILT BUS

Features & Benefits

Showcases unique construction and heavy-duty components for superior charging and cranking performance
Efficiently meets the power demands of your application for efficient restoration of its electrical system
Tested before shipping and packed with the unit’s unique test report for customer’s peace of mind
Increases the engine’s RPM to effectively handle the application’s electrical load
Parameters and configurations are checked through automated computerized test, eliminating the possibility of human error

Wilson E8 Series Alternator

With its optimized design, the Wilson E8 Series alternator provides the durability and long productive life necessary to meet the severe demands of your application. It is the brand’s response for customer’s need for a more robust and higher-efficiency solution for their growing electrical requirements.

Product Attributes

Voltage	12
Fan Type	Internal
External Fan Included	No
External Regulator Included	No
Regulator Type	Internal
Amperage Rating	160
Mounting Type	J180
Clocking	1:30 Bat Term
OE Manufacturer	BOSCH
Series	E8

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8511500000
Harmonized Tariff Code (HTS)	8511500000
Warranty Distance	100000
Warranty Distance UOM	DH
Warranty Time	12
Warranty Time UOM	MO
VMRS Code	031001000

Part Interchanges

WILSON HD ROTATING ELECT 90-15-6424N Cross Reference

We have 5 alternatives for the 90-15-6424N by WILSON HD ROTATING ELECT:

Fits Vehicles

Blue Bird All American FE (1991-2005)
Blue Bird All American RE (1991-2014)
Thomas Saf-T-Liner (2003)
Thomas Transit Liner (2003)
Blue Bird Wanderlodge (1993)
Blue Bird TC1000 (1997-2000)
Blue Bird SHL TC2000 (1993-2003)
Blue Bird SHL Commercial (1996-2004, 2007)
Blue Bird TC2000 (1989-2004)
Blue Bird Commercial Bus (1992-2007)
