Disc Brake Pad Set
Disc Brake Pad Set
| Outer Pad Friction Material Thickness | 0.6 IN |
| Wear Indicator Attached | Yes |
| Pad Wear Sensor Included | Yes |
| Slotted | Yes |
| Friction Material Composition | Low-Metallic |
| Mounting Hardware Included | No |
| Grade Type | Standard Replacement |
| Pad Shims Included | No |
| Brake Lubricant Included | No |
| Pad Quantity | 4 |
| Inner Pad Friction Material Thickness | 0.6 IN |
| Abutment Clips Included | No |
| Pad Wear Sensor Type | Mechanical |
| Chamfered Edges | Yes |
| Prepared For Pad Wear Sensor | Yes |
| ECE-R90 Certified | Yes |
| Adhesive Backed Pad Shim | No |

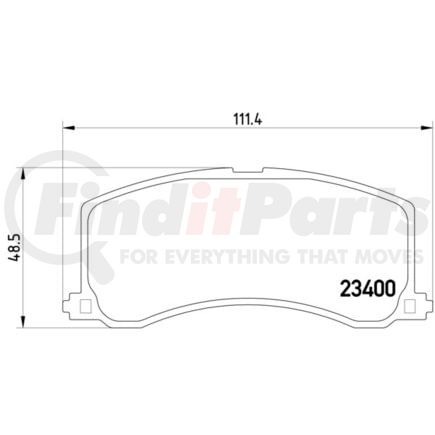

| Outer Pad Height | 1.9 IN |
| Inner Pad Height | 48.50 MM |
| Outer Pad Width | 111.40 MM |
| Inner Pad Width | 4.4 in |
| Assy/Disassy by Qualified Personnel Required! | . |
| Brake System | Sumitomo |
| California Proposition 65 Required | No |
| Height [mm] | 48.5 |
| Number Of Wear Indicators [per Axle] | 2 |
| Technical Information Number | T3085 |
| Thickness [mm] | 16.5 |
| Wear Warning Contact | with Acoustic Wear Warning |
| Width [mm] | 111.4 |
| WVA Number | 23400 |
| Inner Pad Height | 1.9 in |
| Outer Pad Width | 4.4 IN |
| Outer Pad Friction Material Thickness | 16.50 MM |
| Inner Pad Friction Material Thickness | 16.50 MM |
| Outer Pad Height | 48.50 MM |
| Inner Pad Width | 111.40 MM |
| Country of Origin (Primary) | GB |
| Harmonized Tariff Code (HTS) | 8708305040 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 04082300361254 |
| Brand | Part Number |
|---|---|
| AISIN | H1N016, SN651P |
| Bendix | 510442, 572399B, DB1304 |
| Bosch | 0 986 424 465, 0 986 AB2 758, 0 986 AB2 764, 0 986 TB2 742, 0986AB2318, 0986AB9140, 0986BB0579, BP234 |
| Brembo | P79010 |
| Delphi | LP1014 |
| Hella Pagid | 8DB355016941, T3085 |
| Magneti Marelli | 363700203085, 363702160752, 600000099340, 600000099360, T3085MM |
| Mintex | MDB1740 |
| N/A | 7557D677, T3085, 10080, BP10080, 6130919, BL1507A2, BBP1522, 5510261G50000, 5580061G73000, 5580061G70000, 5580061G72000, 5580061G61000, 5510261G61000, 5580060G50000, 5581061G74000, 5580062G60000, 5580061G71000, 5580061G75000, 5580061G50000, 5580060G00000, 5510262G61000, 5580061G74, 5510261G62000, 5580060G01000, 5580061G60000, FDB1100, FSL1100, 1311-0677-01, 1551-0677-00, 1551-0677-01, 1311-0677-00, 1310-0677-00, 1310-0677-01, 8222480, 2202480, AN449WK, AN449WKE, AN449K, 225207, H1N016, SN651P, PN9381, 2941, BP1167, DP1041, PD611, FO665381, 059502, D677-7557, FBP1775, 811069003, 116412, D677, J3608010, J3608016, 259502, ADK84220, 2340016514, TX0553, 2340001, 6567, LVXL156, 13046058382, 605838, DB1304GCT, GDB3091DT, TRC0677, TXC0677, RCPT09430, GDB3091, PA892AF, PA816AF, PA1256, BPS7000, 05P665, ZD677, 0252340016, 572399J |
| Suzuki | 5510261G50, 5510261G61, 5510261G62, 5510262G61, 55800-61G74, 5580060G00, 5580060G01, 5580060G50, 5580061G50, 5580061G60, 5580061G60B00, 5580061G61, 5580061G70, 5580061G71, 5580061G72, 5580061G73, 5580061G74000, 5580061G75, 5580062G60, 5580062G60DOM, 5581061G74 |
| TRW | GDB3091, RCPT09430 |
| Valeo | 598830, 670830 |
