GATES 2/5VX950 Part Description
Manufacturer
Product Description

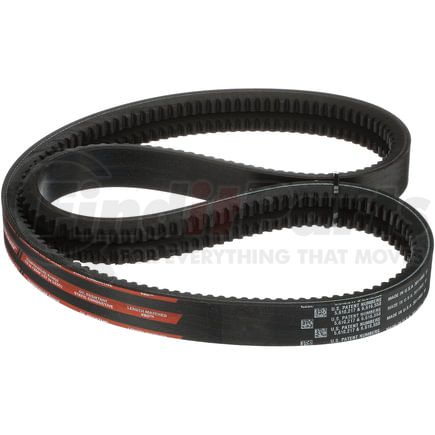

Super HC PowerBand Narrow Section Molded Notch Joined V-Belt
Application Summary
1998-1996 Orion, Orion V, Detroit Diesel Series 50 Diesel, Hub & A.C.
Features & Benefits
- Tie Band construction assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Highly resistant to tensile and flexing forces, fatigue and shock loads offering high stability and smooth running on the toughest drives
- Strong band controls belt-to-belt distance and prevents sideways bending
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Meets or exceeds RMA standards for static conductivity and heat and oil resistance
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in 3V, 3VX, 5V, 5VX and 8V cross-sections
GATES 2/5VX950 Specifications
Product Attributes
| Type | Narrow Section Molded Notch Joined V-Belt |
| Cross Section Designation | 5VX |
| Strand Quantity | 2 |
| Top Width | 1.25 in |
| Top Width Per Strand | .62 IN |
| Outside Circumference | 95 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | Ethylene Elastomer (EE) |
| Cord Material | Polyester |
| Top Width | 32 mm |
| Top Width Per Strand | 16 MM |
| Outside Circumference | 2413 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010391000 |
| Stock Status | S |
| UPC | 00072053246612 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/5VX950 Cross References
| Brand | Part Number |
|---|---|
| 93892095 | |
| Alliance Truck Parts | GT2/5VX950 |
| Blue Bird | 0086373, 00086373 |
| Browning Manufacturing | 2GB5VX950 |
| CARQUEST | 2/5VX950 |
| CONTINENTAL AG | 5VX950 |
| Continental Belt | 2/5VX950 |
| DAYCO | R5VX9502 |
| Dayco | R5VX950-2 |
| GOODYEAR BELTS | 2/5VX950 |
| Gillig Corp. | 0161078000 |
| Goodyear | 2/5VX950 |
| Massey Ferguson | 131494T |
| N/A | 41008772, 99147155 |
| NAPA | 2/5VX950 |
| NAPA Belts/Hose | 2/5VX950 |
| NEOPLAN | FPO107002 |
| PIX | A-5VX950/02 |
| Stewart & Stevenson | 00013600005 |
| Timken | R5VX950-2 |
GATES 2/5VX950 Fits Vehicles
- Orion Bus Orion V (1997-1998)
