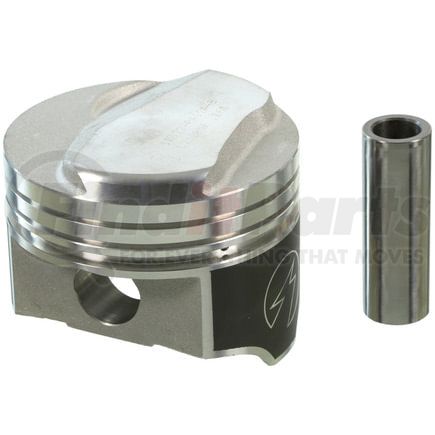

Name: Sealed Power L-2328NF 60 "Speed Pro" POWERFORGED Engine Piston
SKU: l2328nf60
Price: 987.92 USD
Availability: InStock

SEALED POWER part description

Product Description

Engine Piston

Application Summary

POWERFORGED Piston - 402 Chevy, .319" Dome

Features & Benefits

Forged under 3,000 tons of force.
Fully updated skirt profiles
Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications

Product Attributes

Oversized	Yes
Oversized Amount	.060 IN
Grade Type	Performance
Top Compression Ring Thickness	0.0781 IN
Second Compression Ring Thickness	0.0781 IN
Oil Ring Thickness	0.1875 IN
Assembly Lubricant Included	No
Cylinder Bore Diameter	4.185 IN
Piston Material	POWERFORGED(R)
Compression Height	1.765 IN
Dome Volume CC	36.6
Head Type	.319 dome; DUROSHIELD skirt coated piston
Lock Ring	N/R
Minimum Clearance	.0030
Part Description	Engine Piston
Pin Diameter (Inch)	0.990
Pin Type	P
Pin Weight Gram	154
Weight W Pin Gram	851
Weight w/o Pin Gram	697

Additional Information

Country of Origin (Primary)	IN
Canadian Harmonizing Tariff Code	8409910010
Harmonized Tariff Code (HTS)	8409999190
UPC	00019826071682

Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.
