SEALED POWER part description

Product Description

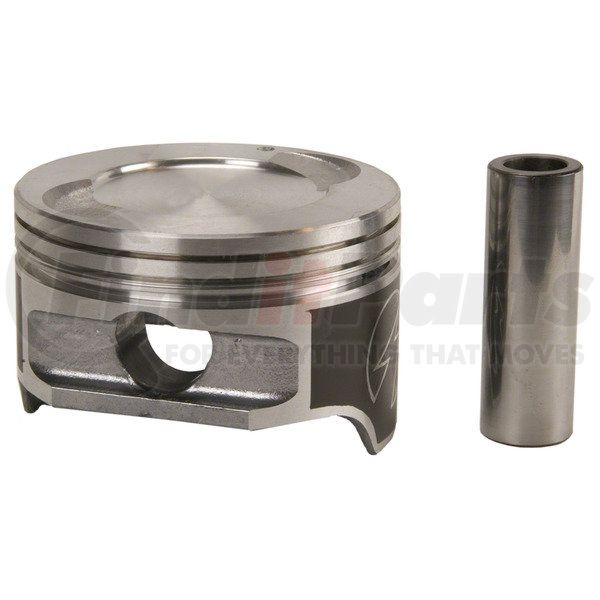

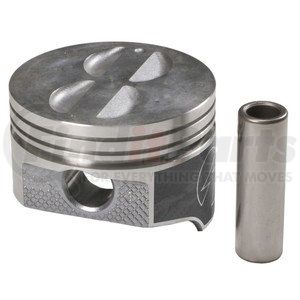

Engine Piston Set

Features & Benefits

  • Helps improve cylinder sealing for less blow-by
  • Ayuda a mejorar el sellado del cilindro para reducir la fuga de gases
  • Aide a ameliorer l'etancheite du cylindre pour reduire la perte de gaz dans le carter
  • Retains standard ring gaps in top groove
  • Retiene los espacios entre anillos estandar en la ranura superior
  • Maintenir les ecarts de bague standard dans la rainure superieure
  • DUROSHIELD(R) skirt-coated piston
  • Piston con recubrimiento del faldon DUROSHIELD(R)
  • Piston revetu d'une jupe DUROSHIELDMD
  • Moly-graphite coating extends engine life
  • El recubrimiento de molibdeno y grafito prolonga la vida util del motor
  • Le revetement de molybdene et de graphite prolonge la duree de vie du moteur
  • Reduces friction for higher fuel economy
  • Reduce la friccion para un mayor ahorro de combustible
  • Reduit les frottements pour une meilleure economie de carburant
  • Prevents damage from inadequate lubrication on start-up
  • Previene danos por lubricacion inadecuada en el arranque
  • Previent les dommages causes par une lubrification inadequate au demarrage

Product Attributes

Oversized Yes
Top Compression Ring Thickness 1.50 MM
Second Compression Ring Thickness 1.50 MM
Oil Ring Thickness 3.00 MM
Piston Pin Outside Diameter 0.9126 IN
Assembly Lubricant Included No
Bore Diameter 3.7795 IN
Piston Material Hypereutectic
9607 1.200 IN
Head Illustration 246

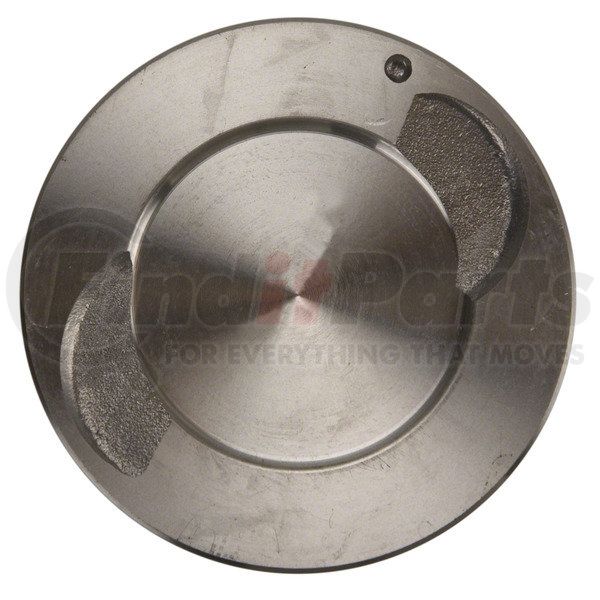

Head Type Recessed Head .088 deep x 2.350 dia.; DUROSHIELD~ skirt coated piston
Minimum Clearance See Piston Fitting Information on carton label
Oversized Amount 1.00 MM
Part Description Engine Piston
Pin Offset (Inch) 0.06
Pin Offset (MM) 1.524
Pin Type P
Weight W Pin Gram 00501.+/- 00.

Additional Information

Country of Origin (Primary) IN
Canadian Harmonizing Tariff Code 8409910010
Harmonized Tariff Code (Schedule B) 8409915085
Harmonized Tariff Code (HTS) 8409915085
UPC 00614046657908

Fits Vehicles

  • Ford Ranger (1998-2001)
