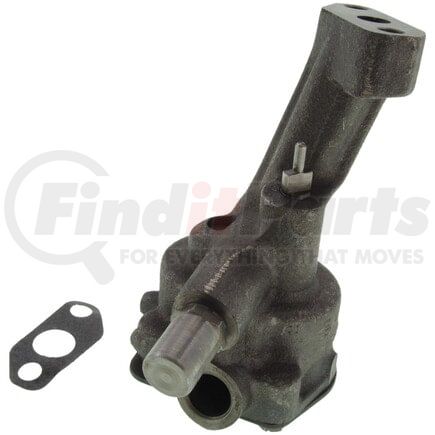

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M-54F M-54F Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 1 more
$12799
Limited availability at this price!
In Stock
Get it by Friday, Sep 4
MELLING ENGINE PRODUCTS M-54F Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M-54F Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 3.7 IN |
| Width | 94.0 MM |
| Height | 6.25 IN |
| Height | 159.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Tube Diameter | 0.73 IN |
| Pickup Tube Diameter | 19.0 MM |
| Mounting Hole Diameter | 0.375 IN |
| Mounting Hole Diameter | 10.0 MM |
| Gear Type | Spur Gear |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.730 |
| Inlet Size (mm) | 18.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| UPC | 00729295100584 |
MELLING ENGINE PRODUCTS M-54F Cross References
MELLING ENGINE PRODUCTS M-54F Fits Vehicles
- Pontiac Strato-Chief (1970)
- Pontiac Tempest (1969-1970)
- Pontiac Parisienne (1969-1971)
- Pontiac Laurentian (1969-1971)
- Pontiac Executive (1969-1970)
- Pontiac LeMans (1969-1972)
- Pontiac GTO (1969-1972)
- Pontiac Grandville (1971)
- Pontiac Grand Safari (1971)
- Pontiac Grand Prix (1969-1971)
- Pontiac Grand Am (1974)
- Pontiac Firebird (1969-1974)
- Pontiac Catalina (1969-1971)
- Pontiac Bonneville (1969-1971)
