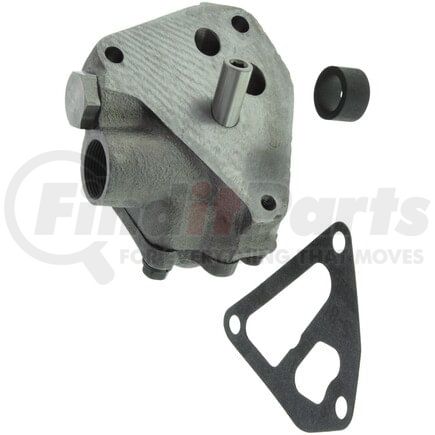

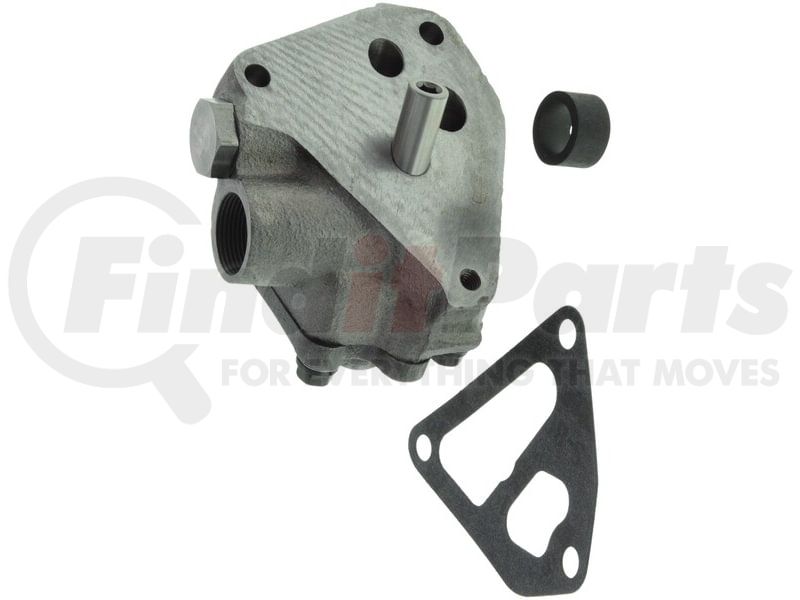

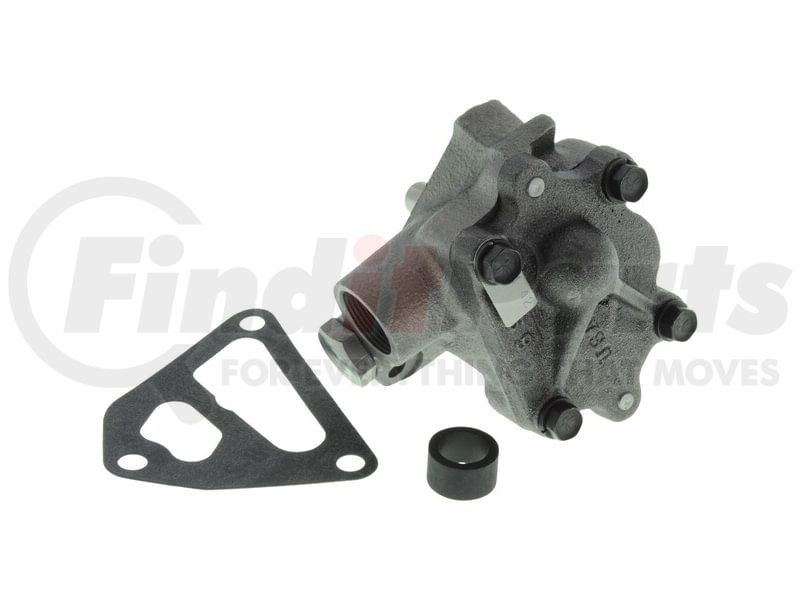

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M-42 M-42 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 1 more
$18049
Limited availability at this price!
In Stock
Get it by Friday, Sep 4
MELLING ENGINE PRODUCTS M-42 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M-42 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 3.69 IN |
| Width | 94.0 MM |
| Height | 3.6 IN |
| Height | 92.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Tube Diameter | 0.93 IN |
| Pickup Tube Diameter | 24.0 MM |
| Mounting Hole Diameter | 0.315 IN |
| Mounting Hole Diameter | 8.0 MM |
| Gear Type | Spur Gear |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 1.000 |
| Inlet Size (mm) | 25.40 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | Yes |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | Yes |
| Nylon Bushing Included | Yes |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295100423 |
MELLING ENGINE PRODUCTS M-42 Cross References
| Brand | Part Number |
|---|---|
| Avon Automotive | A-42 |
| Badger | 41-123U, B-42 |
| Balkamp | 601-1073 |
| Dynagear | DM-42 |
| Elgin | EM-15, EM-42 |
| Enginetech | N/A |
| Federated | DM-42 |
| Fleet-Tuf | OP130 |
| Ford | C1AE-6600-A, C1AZ-6600-C, COAE-6600-D |
| Hoof | HM42 |
| ITM Engine Components | N/A |
| MAHLE | 601-1073 |
| MELLING ENGINE PRODUCTS | M-42 |
| Melling | M-42 |
| Muskegon | MM-42 |
| N/A | N/A |
| Perfect Circle | 601-1073, P42 |
| Pioneer | OP-42 |
| SEALED POWER | 22441123 |
| Safety Auto Parts Corp | N/A |
| Sealed Power | 224-41123 |
| TRW | 50016 |
| Topline | N/A |
| Wolverine/Blue Racer | OP-309 |
MELLING ENGINE PRODUCTS M-42 Fits Vehicles
- Ford F-350 (1955-1964)
- Ford F-250 (1955-1964)
- Ford F-100 (1955-1964)
- Ford P-350 (1957-1964)
- Ford Custom (1957)
- Mercury Custom (1955-1956)
- Edsel Villager (1959-1960)
- Edsel Ranger (1959-1960)
- Ford Galaxie 500 (1962)
- Mercury Voyager (1957-1959)
- Mercury Turnpike Cruiser (1957)
- Mercury Park Lane (1958-1960)
- Mercury Monterey (1955-1960)
- Mercury Montclair (1955-1960)
- Mercury Medalist (1956-1958)
- Mercury Country Cruiser (1959-1960)
- Mercury Commuter (1957-1960)
- Mercury Colony Park (1957-1960)
- Lincoln Premier (1956-1957)
- Lincoln Mark II (1956-1957)
- Lincoln Capri (1955-1957)
- Ford Victoria (1955-1960)
- Ford Thunderbird (1955-1958)
- Ford Sunliner (1955-1960)
- Ford Starliner (1960)
- Ford Skyliner (1955-1959)
- Ford Ranchero (1957-1959)
- Ford Ranch Wagon (1955-1962)
- Ford Park Lane Wagon (1956)
- Ford Mainline (1955-1956)
- Ford Galaxie (1959-1962)
- Ford Fairlane (1955-1961)
- Ford Del Rio Wagon (1957-1958)
- Ford Customline (1955-1956)
- Ford Custom 300 (1957-1960)
- Ford Courier Sedan Delivery (1955-1960)
- Ford Country Squire (1955-1962)
- Ford Country Sedan (1955-1962)
- Ford Club (1955-1959)
