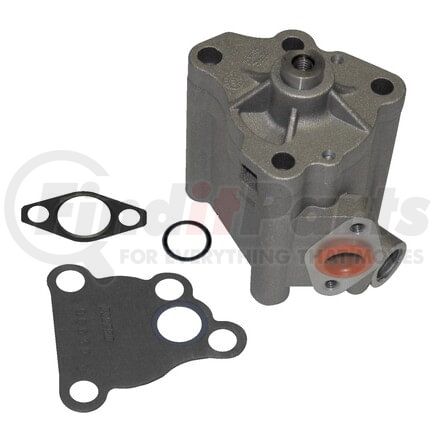

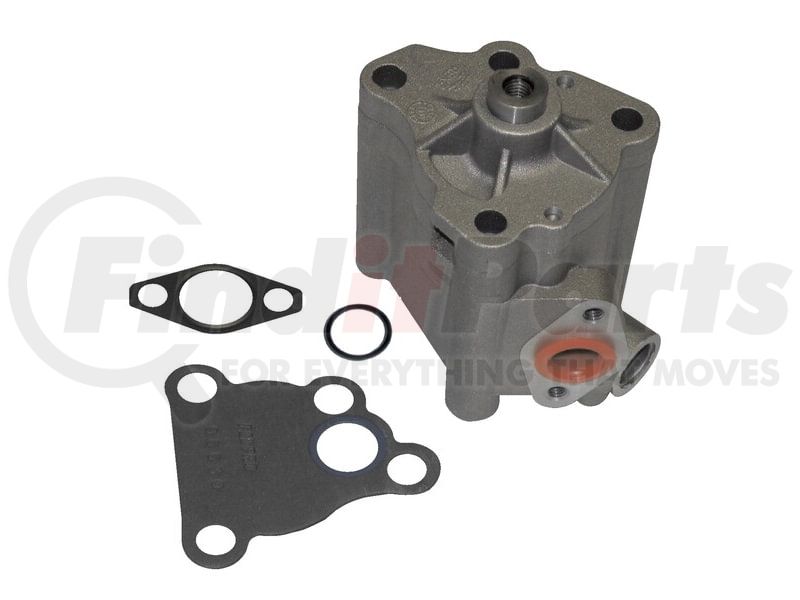

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M330 M330 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 1 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M330 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M330 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 3.71 IN |
| Width | 94.0 MM |
| Height | 3.33 IN |
| Height | 85.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 3 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Screen Diameter | 0.62 IN |
| Pickup Screen Diameter | 16.0 MM |
| Mounting Hole Diameter | 0.315 IN |
| Mounting Hole Diameter | 8.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.630 |
| Inlet Size (mm) | 16.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Pickup Tube Diameter | 0.630 IN |
| Pickup Tube Diameter | 16.00 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin 2 | MX |
| Country of Origin (Primary) | US |
| UPC | 00729295104391 |
MELLING ENGINE PRODUCTS M330 Cross References
| Brand | Part Number |
|---|---|
| Elgin | EM330 |
| Enginetech | EP330 |
| Ford | 1S7Z-6600-AA, DS7E-6600-AB, DS7Z 6600-A, DS7Z-6600-B |
| ITM Engine Components | 057-1527 |
| MAHLE | N/A |
| MELLING ENGINE PRODUCTS | M330 |
| Mazda | 1F20-14-100, 1F20-14-100A |
| Melling | M330 |
| N/A | OP446 |
| Rock Products | OP446 |
| SEALED POWER | 22443660 |
| Safety Auto Parts Corp | PO25-M330 |
| Sealed Power | 224-43660 |
| Topline | N/A |
MELLING ENGINE PRODUCTS M330 Fits Vehicles
- Ford SSV Plug-In Hybrid (2019-2020)
- Ford Police Responder Hybrid (2019-2020)
- Ford EcoSport (2018-2022)
- Lincoln MKZ (2013-2020)
- Ford C-Max (2013-2018)
- Ford Fusion (2013-2020)
- Ford Transit Connect (2010-2013, 2019-2023)
- Ford Focus (2005-2018)
- Mazda B2300 (2001-2010)
- Ford Ranger (2001-2011)
