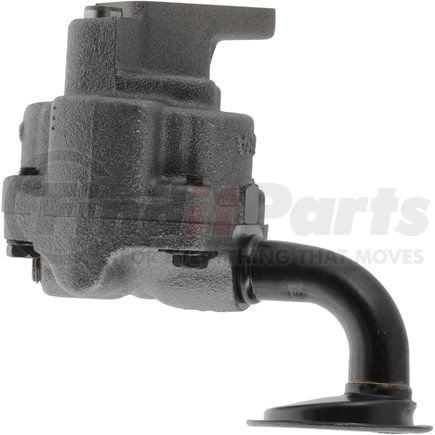

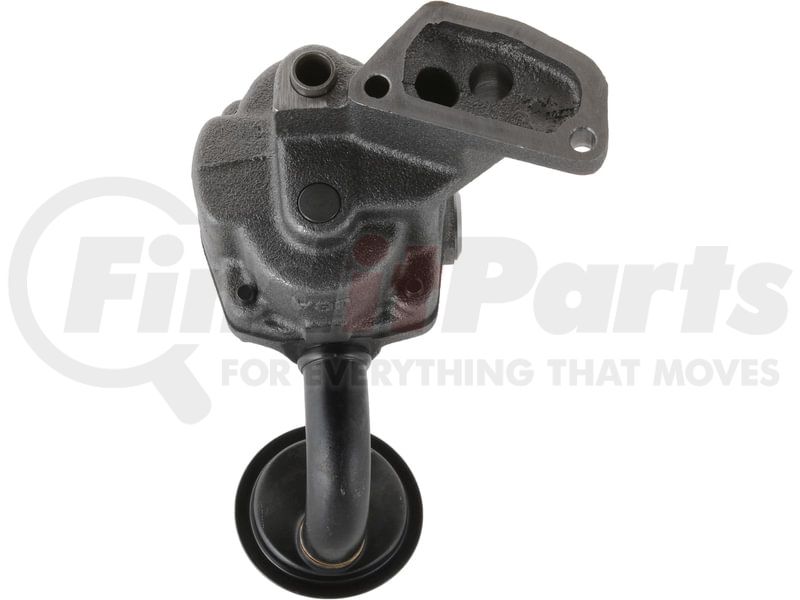

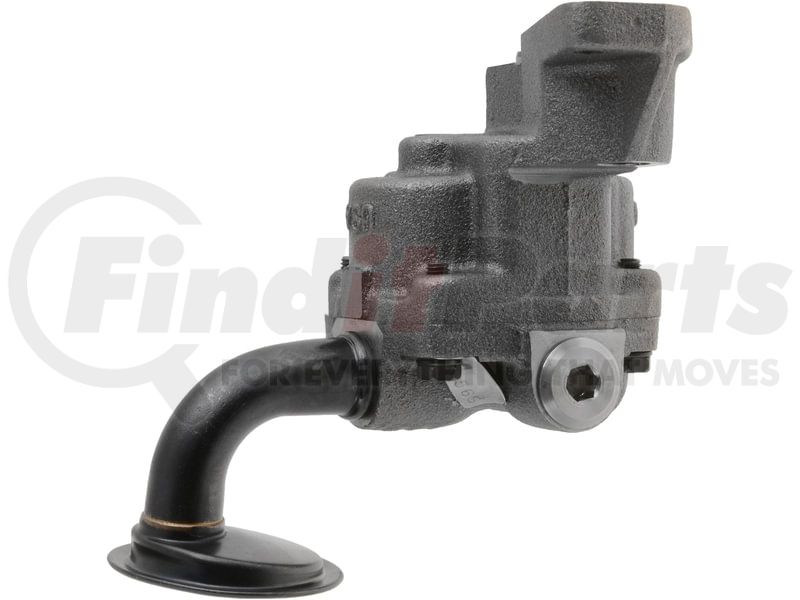

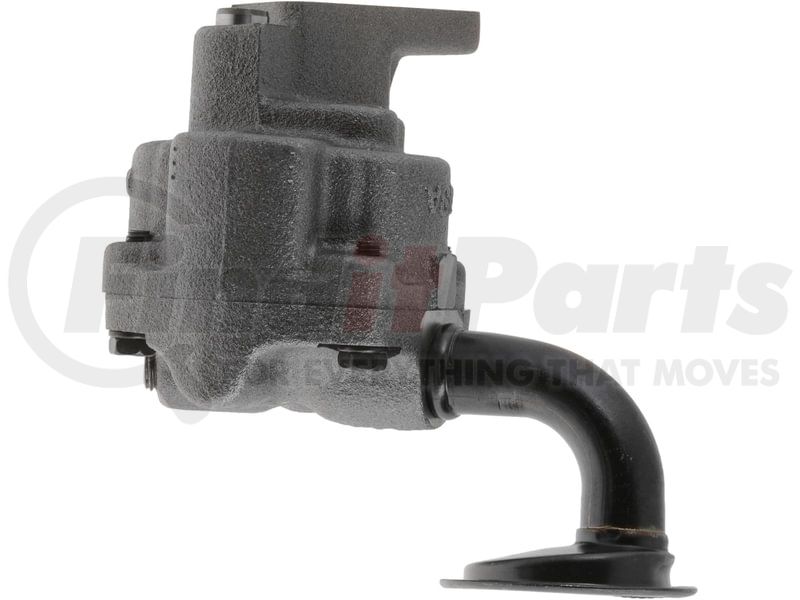

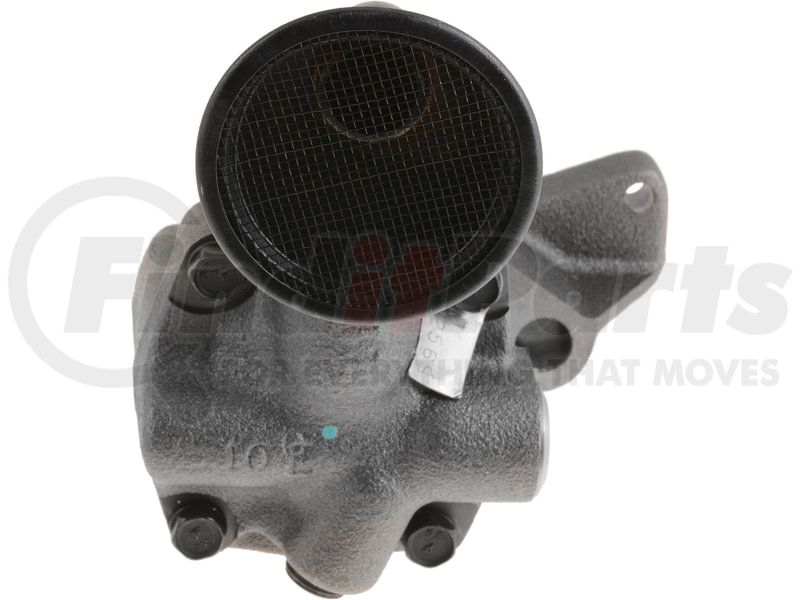

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M256S M256S Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Tap to view 3 more
$12549
Limited availability at this price!
In Stock
Get it by Friday, Jun 26
MELLING ENGINE PRODUCTS M256S Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump With Screen
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M256S Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 3.07 IN |
| Width | 78.0 MM |
| Height | 5.53 IN |
| Height | 141.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 1 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Mounting Hole Diameter | 0.25 IN |
| Mounting Hole Diameter | 6.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | Yes |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.750 |
| Inlet Size (mm) | 19.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Pickup Tube Diameter | 0.750 IN |
| Pickup Tube Diameter | 19.00 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295103233 |
MELLING ENGINE PRODUCTS M256S Cross References
| Brand | Part Number |
|---|---|
| Elgin | EM-256S |
| Enginetech | EP256S |
| Ford | 5L5Z-6600-AA, F77Z-6600-AA |
| ITM Engine Components | N/A |
| MAHLE | 601-2089 |
| MELLING ENGINE PRODUCTS | M256S |
| Mazda | 1F81-14-100 |
| Melling | M256S |
| N/A | OP4142 |
| Safety Auto Parts Corp | PO25-M256 |
| Sealed Power | 224-43434S, 224-43497, 224-43636S, 224-63636S |
| Topline | N/A |
MELLING ENGINE PRODUCTS M256S Fits Vehicles
- Ford F-100 Ranger (1996-2001)
- Mazda B3000 (1994-2008)
- Ford Ranger (1991-2008)
- Ford Aerostar (1990-1997)
