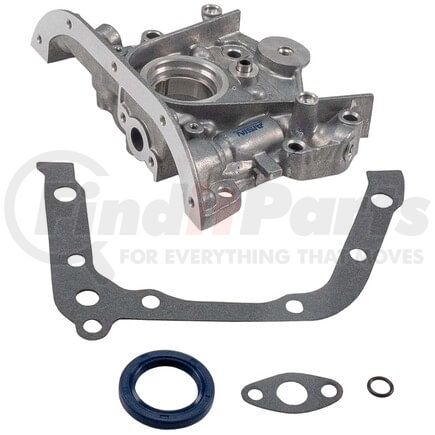

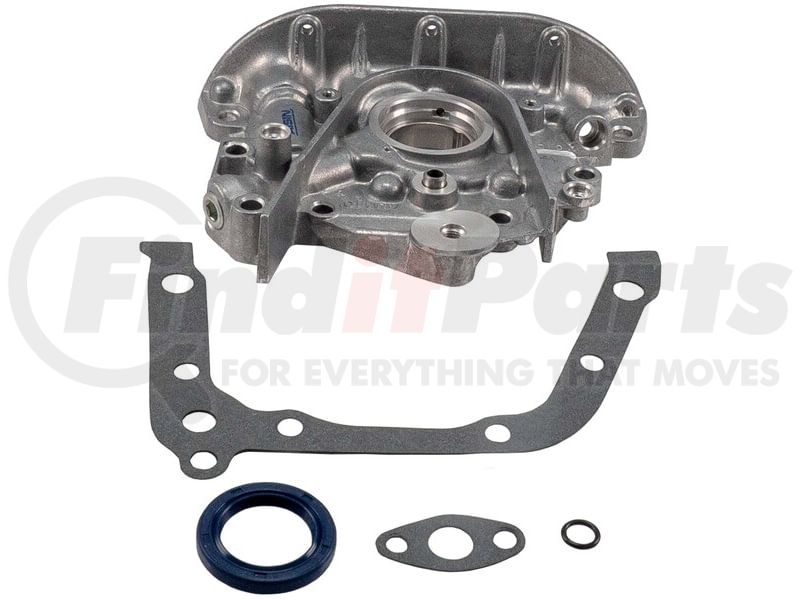

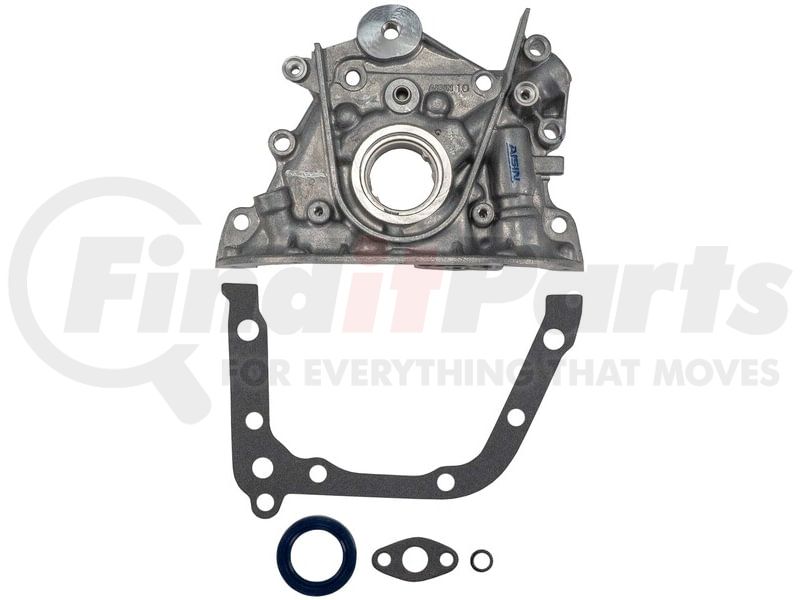

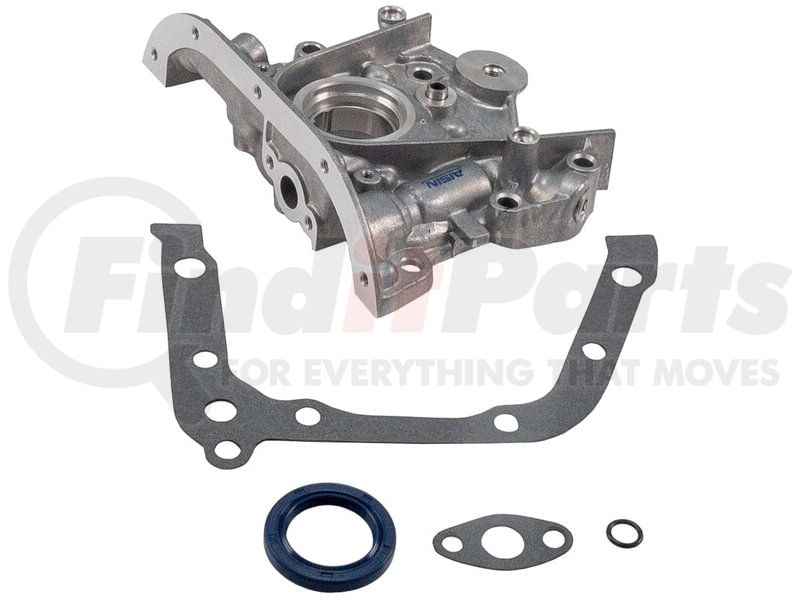

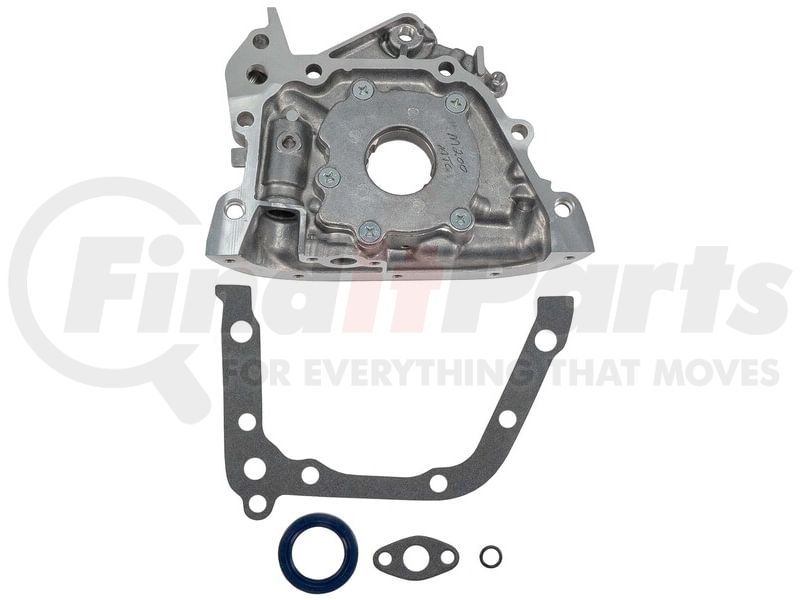

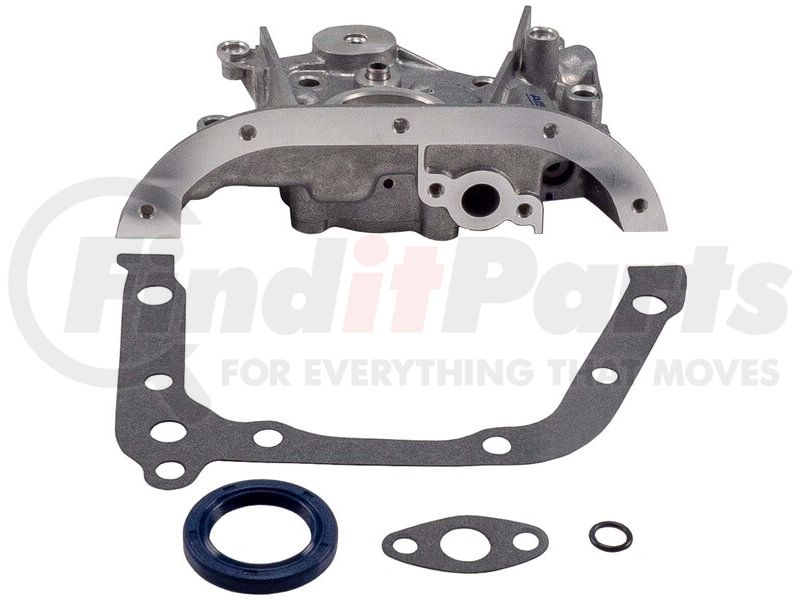

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M200 M200 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M200 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M200 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 8.4 IN |
| Width | 213.0 MM |
| Height | 5.59 IN |
| Height | 142.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 7 |
| Housing Material | Aluminum |
| Drive Type | Crankshaft |
| Oil Pump Type | Rotary |
| Pickup Screen Diameter | 0.625 IN |
| Pickup Screen Diameter | 16.00 MM |
| Mounting Hole Diameter | 0.315 IN |
| Mounting Hole Diameter | 8.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.625 |
| Inlet Size (mm) | 16.00 |
| Cover Material | Aluminum |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Not Applicable |
| Finish | Rust Preventative |
| Rotor Material | Powdered Metal |
| Pickup Tube Diameter | 0.625 IN |
| Pickup Tube Diameter | 16.00 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin 2 | JP |
| Country of Origin (Primary) | TW |
| UPC | 00729295102830 |
MELLING ENGINE PRODUCTS M200 Cross References
| Brand | Part Number |
|---|---|
| AISIN | OPT-032, OPT-033 |
| Beck/Arnley | 028-0400 |
| Dynagear | DM-200 |
| Elgin | EM-200 |
| Enginetech | EP200 |
| Evergreen Engine | OP2026 |
| General Motors | 94853635 |
| ITM Engine Components | 057-1090 |
| MAHLE | N/A |
| MELLING ENGINE PRODUCTS | M200 |
| Melling | M200 |
| N/A | OP945, OP945A |
| Perfect Circle | 601-2062, PTO28 |
| Rock Products | OP945 |
| SEALED POWER | 22443500 |
| Safety Auto Parts Corp | PO15-M200 |
| Sealed Power | 224-43500 |
| Topline | OPTO28 |
| Toyota | 15100-15060 |
MELLING ENGINE PRODUCTS M200 Fits Vehicles
- Toyota Corolla (1993-1997)
- Geo Prizm (1993-1995)
