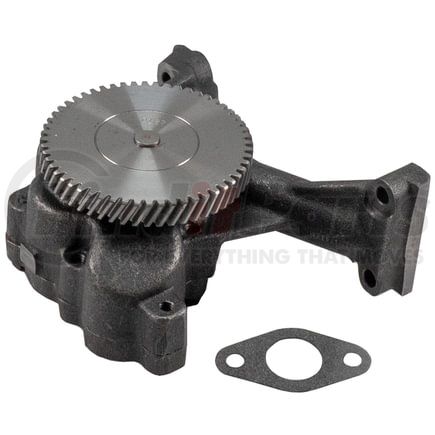

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M165 M165 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 4 more
$29549
Limited availability at this price!
In Stock
Get it by Tuesday, Sep 8
MELLING ENGINE PRODUCTS M165 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M165 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 6.04 IN |
| Width | 154.0 MM |
| Height | 7.5 IN |
| Height | 191.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 3 |
| Housing Material | Cast Iron |
| Oil Pump Type | Gear |
| Pickup Screen Diameter | 0.87 IN |
| Pickup Screen Diameter | 22.0 MM |
| Mounting Hole Diameter | 0.315 IN |
| Mounting Hole Diameter | 8.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.900 |
| Inlet Size (mm) | 22.86 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Pickup Tube Diameter | 0.900 IN |
| Pickup Tube Diameter | 22.86 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Type | Timing Chain |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295102540 |
MELLING ENGINE PRODUCTS M165 Cross References
| Brand | Part Number |
|---|---|
| Balkamp | 601-1959 |
| Dynagear | DM-165 |
| Elgin | EM-165, EM-71D |
| Enginetech | EP165 |
| Ford | E3TZ-6600-A, F4TZ-6600-A |
| ITM Engine Components | N/A |
| International Harvester (IHC) | 1805398-C93, 1805398-C94 |
| MAHLE | 601-1957 |
| MELLING ENGINE PRODUCTS | M165 |
| Melling | M165 |
| N/A | N/A |
| Perfect Circle | 601-1957, P165 |
| Pioneer | OPK-71-DG |
| Safety Auto Parts Corp | N/A |
| Sealed Power | 224-41999 |
| Topline | N/A |
MELLING ENGINE PRODUCTS M165 Fits Vehicles
- International 500 (1991)
- International 400 (1991)
- International 1654 (1988-1989)
- International F1954 (1986)
- International S1853 (1988)
- International S1754 (1988)
- International S1753 (1984-1989)
- International S1654LP (1988-1989)
- International S1654 (1984-1989)
- International 4900 (1991)
- International 4600UH (1990)
- International 4600LP (1990-1994)
- International 4600 (1990-1993)
- International 3800 (1990-1991)
- International 3700 (1990-1994)
- International 3600 (1992-1994)
- International M1600 Metro II (1987-1990)
- International M1400 Metro II (1987-1990)
- International 1652UPS (1990-1991, 1993)
- International 1652SC (1988-1993)
- International 1452SC (1988-1992)
- International Cargostar (1984-1986)
- Ford F-59 Commercial Stripped Chassis (1988-1994)
- Ford F-350 (1983-1994)
- Ford F-250 (1983-1994)
- Ford F-150 (1984)
- Ford F-Super Duty (1988-1994)
- Ford E-350 Econoline Club Wagon (1983-1994)
- Ford E-350 Econoline (1983-1994)
- Ford E-250 Econoline Club Wagon (1983-1991)
