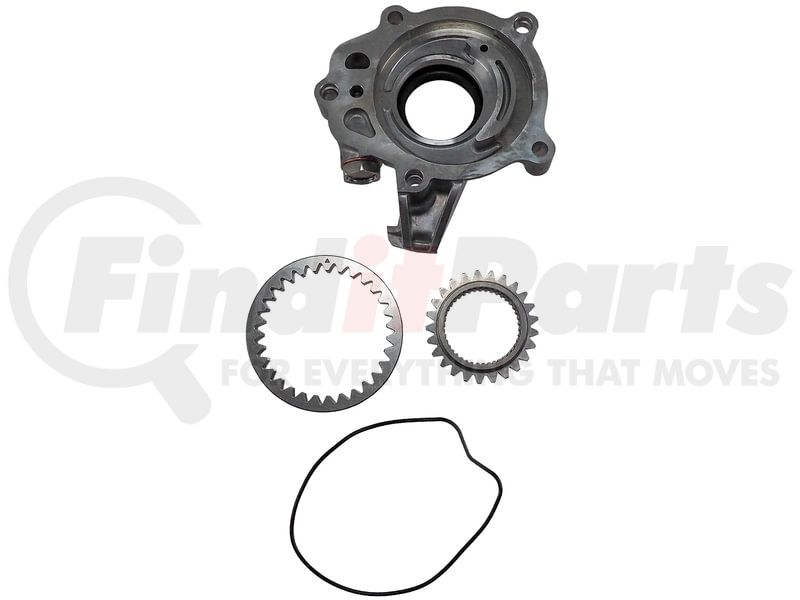

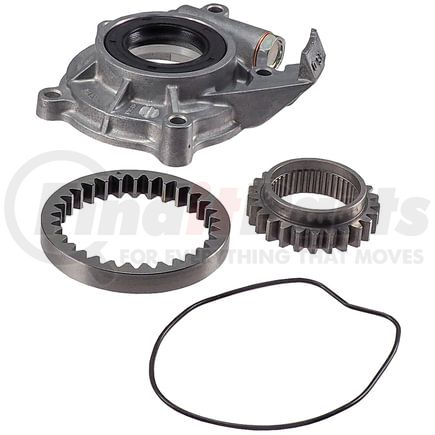

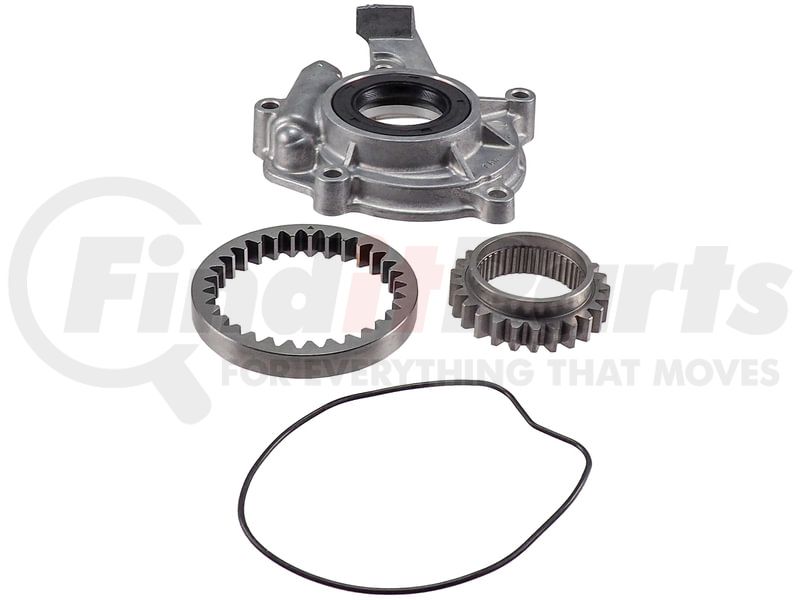

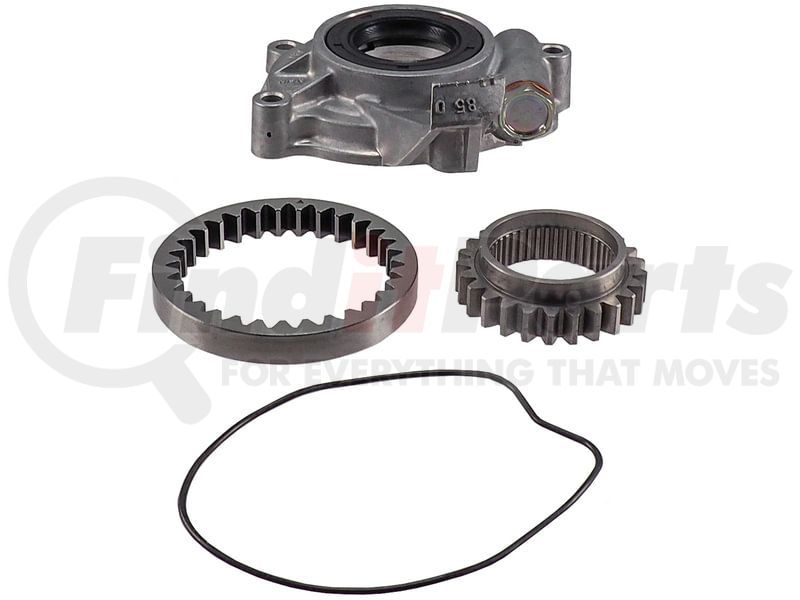

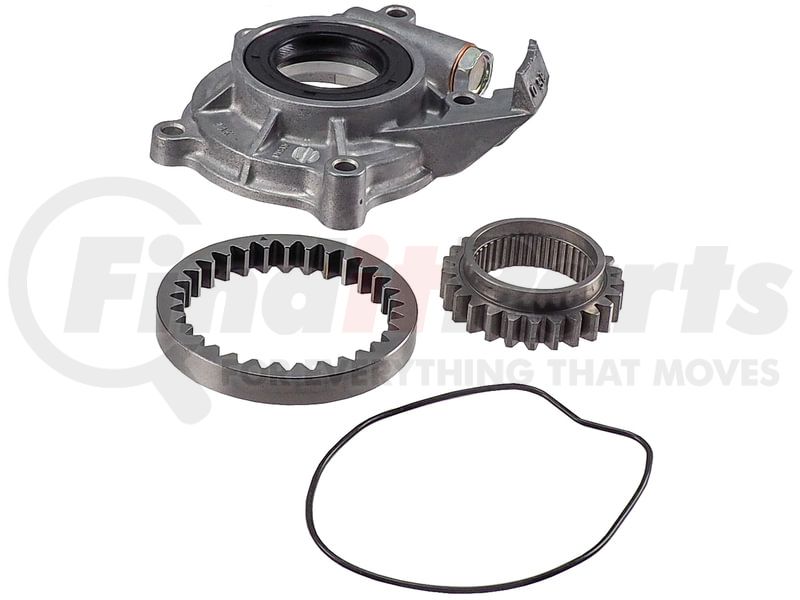

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M145 M145 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M145 Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M145 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 5.75 IN |
| Width | 147.0 MM |
| Height | 5.35 IN |
| Height | 137.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 5 |
| Housing Material | Cast Iron |
| Drive Type | Crankshaft |
| Oil Pump Type | Rotary |
| Mounting Hole Diameter | 0.315 IN |
| Mounting Hole Diameter | 8.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Pickup Screen Included | No |
| Inlet Size (in) | Not Applicable |
| Cover Material | Cast Iron |
| Bushing Included | No |
| Governor Spinner Included | No |
| Nylon Bushing Included | No |
| Pump Cover Included | Yes |
| Timing Cover Included | No |
| Spacer Included | No |
| Finish | Rust Preventative |
| Intermediate Shaft Included | No |
| Inlet Size (mm) | Not Applicable |
| Bolts Included | No |
| Cotter Pin Included | No |
| Guide Included | No |
| O-Ring Included | Yes |
| Shaft Material | Not Applicable |
| Washers Included | No |
| Gears Included | Yes |
| Rotor Material | Powdered Metal |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin 2 | MX |
| Country of Origin (Primary) | JP |
| Country of Origin 3 | US |
| UPC | 00729295102250 |
MELLING ENGINE PRODUCTS M145 Cross References
| Brand | Part Number |
|---|---|
| AISIN | OPT-053 |
| Balkamp | 601-1157, 601-1608, 601-1611 |
| Beck/Arnley | 028-0172 |
| Dynagear | DM-145 |
| Elgin | EM-145 |
| Enginetech | EP145 |
| Evergreen Engine | OP2001 |
| Federated | DM-145 |
| General Chain | OP575, OP577 |
| Hoof | HM200 |
| ITM Engine Components | 057-700 |
| Lazorlite | L66-5231 |
| MAHLE | 601-1157 |
| MELLING ENGINE PRODUCTS | M145 |
| Melling | M145 |
| Muskegon | MM-1157 |
| N/A | OP948 |
| Perfect Circle | 601-1157, P145 |
| Rock Products | OP948 |
| Safety Auto Parts Corp | PO15-M145 |
| Sealed Power | 224-41902 |
| TRW | 50126 |
| Topline | OPTO8L |
| Toyota | 15100-35010, 15100-38020, 15100-38021 |
| Vera | 47-00126 |
| Worldparts | W24-134 |
MELLING ENGINE PRODUCTS M145 Fits Vehicles
- Toyota Pickup (1978-1984)
- Toyota Corona (1978-1982)
- Toyota Celica (1978-1984)
- Toyota 4Runner (1984)
