(888) 312-8812 Login SignupGATES 85985 MegaTech 1000 High-Temp Oil-Air Return Hose
Tap to view 1 more
$1,60149
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Jul 28
GATES 85985 Part Description
Manufacturer
Product Description

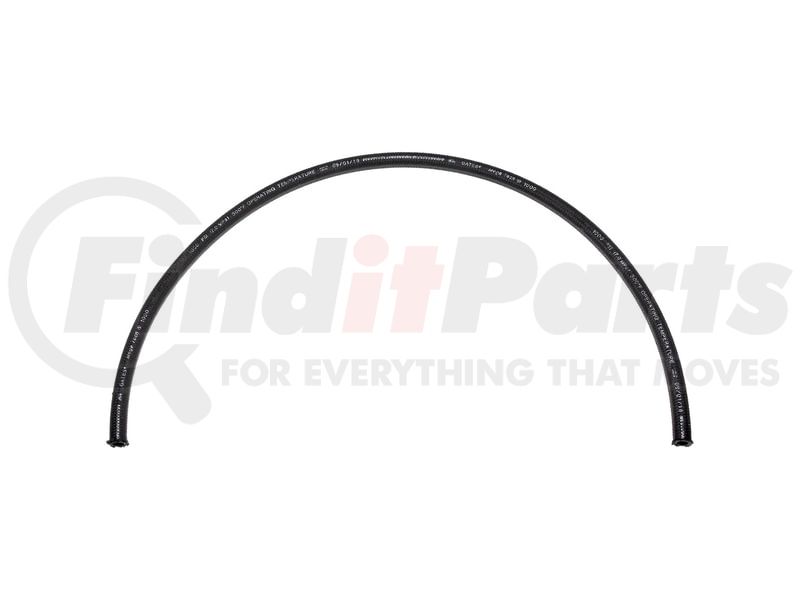

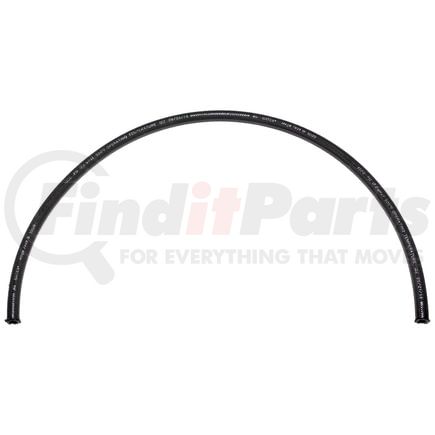

MegaTech 1000 High-Temp Oil-Air Return Hose
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- 1000 psi constant pressure for all ID's
- Meets the requirements of DOT FMVSS 106-74, SAE J1402, for air brake hose (-4, -6, -8, -10)
- Meets the requirements of DOT FMVSS 106–74, SAE J1402, for air brake hose (-4, -6, -8, -10)
- Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
- NOTE: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings
- NOTE: See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance
GATES 85985 Specifications
Product Attributes
| Product Type | MegaTech 1000 High-Temp Oil-Air Return Hose |
| Industrial Description | 16MEGATECH1000X50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1000 PS |
| Burst Pressure | 4000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Length | 50 FT |
| Dash Size | 16 |
| Inside Diameter | 1 IN |
| Outside Diameter | 1.37 IN |
| Bend Radius | 6 IN |
| Vacuum Rating | 30 INHG |
| Tube Description | Black, Specifically Compounded for Temperature & Chemical Resistance |
| Hose Material | CPE - Type J |
| Reinforcement Material | One Braid of High-Tensile Steel Wire |
| Cover Material | Textile Braid, Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp, Stainless Steel S |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| Stock Status | N |
| UPC | 00770075248545 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 85985 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030155 |
| NAPA | 85985 |
| Weatherhead | H23916250R |
