(888) 312-8812 Login SignupGATES 85764 MegaTech 250 High-Temp Transmission Oil Cooler (TOC) Hose
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 85764 Part Description
Manufacturer
Product Description

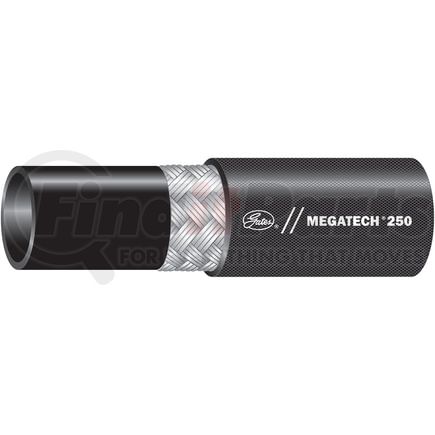

MegaTech 250 High-Temp Transmission Oil Cooler (TOC) Hose
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- 250 psi constant pressure for all ID's
- Temperature Range: Petroleum-based Fluids: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Phosphate Esters Fluids as recommended by the fluid manufacturer, but within a range of -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 85764 Specifications
Product Attributes
| Product Type | MegaTech 250 High-Temp Transmission Oil Cooler (TOC) Hose |
| Industrial Description | 16MEGATECH250X50FT |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 250 PS |
| Burst Pressure | 1000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F (Petroleum-Base Fluid); -40 Deg. F to +212 Deg. F (Phosphate Ester Fluids) |
| Length | 50 FT |
| Dash Size | 16 |
| Inside Diameter | 1 IN |
| Outside Diameter | 1.36 IN |
| Bend Radius | 4 IN |
| Vacuum Rating | 30 INHG |
| Tube Description | Black Tube Specifically Compounded for Temperature & Chemical Resistance |
| Hose Material | CPE - Type J |
| Reinforcement Material | One Braid of High-Tensile Steel Wire |
| Cover Material | Textile Braid, Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00770075140733 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
GATES 85764 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | 85764 |
