GATES 70746 Part Description
Manufacturer
Product Description

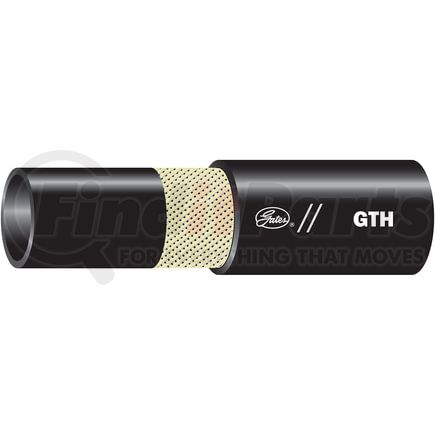

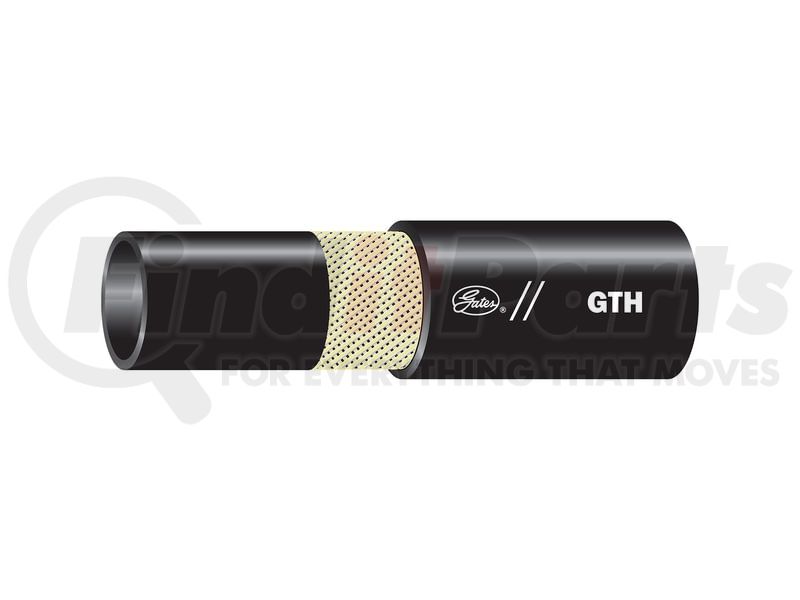

GTH High -Temp 1-Fiber Braid Hose - SAE 100R6
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series] and Power Crimp Couplings
- Meets or exceeds requirements of SAE 100R6
- Temperature Range: Hydraulic Oil Lines: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant; +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)
GATES 70746 Specifications
Product Attributes
| Product Type | GTH High-Temp 1-Fiber Braid Hose - SAE 100R6 |
| Industrial Description | 16GTHXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 250 PS |
| Burst Pressure | 1000 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (Constant) and +300 Deg. F (Intermittent) |
| Length | 165 FT |
| Dash Size | 16 |
| Inside Diameter | 1 IN |
| Outside Diameter | 1.13 IN |
| Bend Radius | 8 |
| Vacuum Rating | 10 INHG |
| Tube Description | Black, Specially Compounded, Synthetic Rubber |
| Material | Nitrile - Type C |
| Reinforcement Material | One Fiber Braid |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R6 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053843712 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
