GATES 70430 - Hydraulic Hose - Global M5K Mega5000 Hose - XtraTuff Cover
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

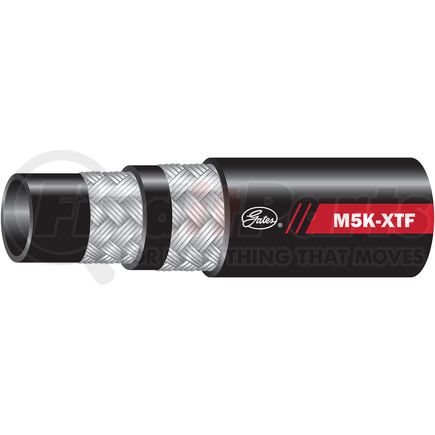

Global M5K Mega5000 Hose - XtraTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20Series], MegaCrimp Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series]
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Product Attributes
| Product Type | Global M5K Mega5000 Hose - XtraTuff Cover |
| Industrial Description | 6M5K-XTFXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 5000 PS |
| Burst Pressure | 20000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 330 FT |
| 9941 | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .70 IN |
| 9879 | 2.5 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant - XtraTuff Cover |
| Cover Color | Black |
| 9856 | GlobalSpiral, MegaCrimp |
| 9453 | N/A |
| 9954 | N/A |
| 9953 | 18752 Grade B |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00770075226949 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
