GATES 70449 Part Description
Manufacturer
Product Description

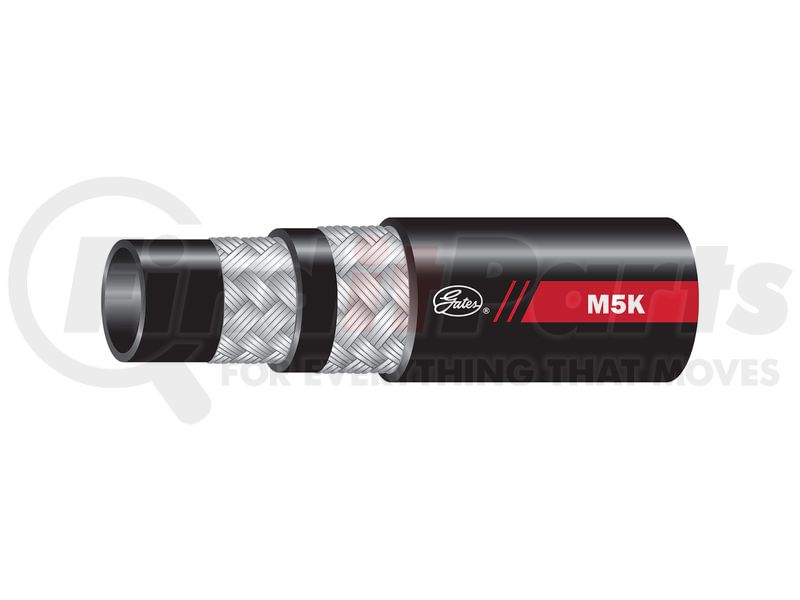

Global M5K Mega5000 Hose
Features & Benefits
- For use with GlobalSpiral Couplings [G20Series], MegaCrimp Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series]
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70449 Specifications
Product Attributes
| Product Type | Global M5K Mega5000 Hose |
| Industrial Description | 5M5KXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 5000 PS |
| Burst Pressure | 20000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 350 FT |
| Dash Size | 5 |
| Inside Diameter | .3125 IN |
| Outside Diameter | .61 IN |
| Bend Radius | 2.2 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | 18752 Grade B |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Stock Status | N |
| UPC | 00770075226918 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70449 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04029807 |
| NAPA | 70449 |
