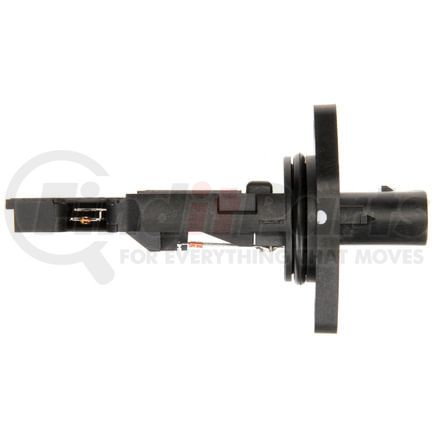

(888) 312-8812 Login SignupDELPHI AF10167 Mass Air Flow Sensor
MSRP: $128.91
$12399
Save $4.92
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI AF10167 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10167 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 38 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 47.00 MM |
| Mounting Hole Diameter | 5.6 MM |
| Seal Outside Diameter | 34.8 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.4 IN |
| Bolt Hole Center To Bolt Hole Center | 1.80 IN |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 1.3 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026104000 |
| UPC | 00689604222560 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10167 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2133586 |
| Airtex | 5S2597 |
| Audi | 06A 906 461 DX |
| Autopart International | 228339 |
| BWD | 221059M, MA1041 |
| Beck/Arnley | 158-0774, 158-1469 |
| Blue Streak Electronics New | MF21059N |
| Bosch | 280217529, 280218032, 0280217529 |
| CARDONE New | 86-10095 |
| CARDONE Reman | 74-10095 |
| Carquest | MQ6274 |
| Dorman | 917-909 |
| GLOBAL PARTS DISTRIBUTORS | 1813122 |
| IMC | 0 280 218 032, 0 96 280 210 |
| N/A | 7410095, 8610095, 641759, 1580774, 1581469, 06A906461D, 06A906461DX, MQ6226, 245-1110, 245-2110 |
| NAPA Reman Computers | MAF610095, XTP410095 |
| NGK SPARK PLUGS | MG0097 |
| NTK | MG0097 |
| Richporter | MA128 |
| SPECTRA PREMIUM | MA128S |
| STANDARD IGNITION | MAS0168 |
| Spectra Premium | MA128 |
| Standard Motor Products | MF21059, MAS0168 |
| VEMO | V10721020 |
| Volkswagen | 06A 906 461 D, 06A 906 461 DX |
| WAI | MAF10167 |
| WALKER PRODUCTS | 245-2080 |
| Wells | 64-1759 |
DELPHI AF10167 Fits Vehicles
- Audi TT (2000-2001)
- Audi TT Quattro (2000)
- Volkswagen Passat (2000-2001)
- Volkswagen Jetta (2000-2001)
- Volkswagen Golf (2000-2001)
- Audi A4 Quattro (2000)
