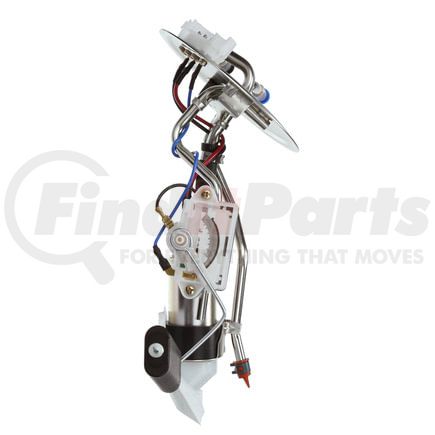

DELPHI HP10172 Fuel Pump Hanger Assembly

★★★★★ (0)

$115.49

Limited availability at this price!

5 Day Lead Time

Get as soon as Tuesday, Dec 1
30-day Return Policy On eligible items Details
Does not qualify towards free shipping promotion details
This item will ship about 5 days after the date of purchase.

DELPHI HP10172 Part Description

Manufacturer

DELPHI

Product Description

Fuel Pump Hanger Assembly

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Delphi pumps are designed to operate under extreme temperatures with quick engine starts
  • Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Restores fast pressure performance and system integrity, translating to better pumping through less energy
  • Lower failure rates due to its innovative design and durability
  • Part is validated, tested and matched to the right vehicle application
  • Lower amperage draws less load on vehicle's electrical system
  • Always be sure to check and clean fuel tank to avoid unnecessary returns

DELPHI HP10172 Specifications

Product Attributes

Package ContentsFuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet
Item GradeStandard Replacement
System Pressure44 psi
Fuel Level Sender Assembly IncludedYes
Outlet Outside Diameter0.375 IN
Voltage12.0 2H
Fuel TypeGas
Maximum Pressure73.0 PS
Terminal TypePin
Gasket Or Seal IncludedYes
Terminal Quantity4
Terminal GenderMale
Strainer IncludedYes
Inlet TypeStrainer
Outlet TypeQuick Connect
Outlet Quantity2
In Tank or ExternalIn Tank
Resistance Ohms Empty10.0 82
Resistance Ohms Full160.0 82
Internal Or External StrainerExternal
Pump TypeElectric
Average Current Draw7.0 68
Average Flow Rating6.0 GPH
MaterialMetal
Fuel Sending Unit IncludedYes
Negative GroundNo
Mounting Hardware IncludedNo
Grade TypePremium
Connector ShapeOval
Lock Ring IncludedYes
Connector GenderFemale
Inlet Quantity1
Fuel Pump IncludedYes
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure44 PS
Pump DesignTurbine
Fuel Tank Pressure Sensor IncludedNo
Universal Or Specific FitSpecific

Additional Information

Harmonized Tariff Code (Schedule B)8413309000
Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)MX
UPC00689604226711
VMRS Code044003257
UNSPSC40151532

DELPHI HP10172 Cross References

BrandPart Number
AirtexE2042, E2108S
AutoZoneDHP10172
Bosch69117
CarterP74603S
DENSO Auto Parts951-0016
EVO DrivelineAFS0016P, AFS0066S, RE0016P, RE0066S
FordF0DZ 9H307-A
N/AF0DZ9H307A, 4011105, 4017265
Precision FuelA30246, E16006
Spectra PremiumSP2025H, SP1161

DELPHI HP10172 Fits Vehicles

  • Ford Taurus (1994)
