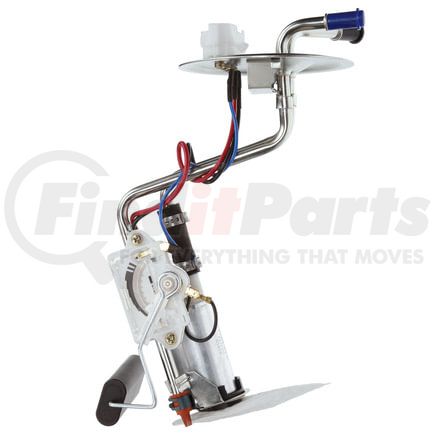

(888) 312-8812 Login SignupDELPHI HP10155 Fuel Pump Hanger Assembly
$10199
Limited availability at this price!
In Stock
Get as soon as Wednesday, Nov 18
DELPHI HP10155 Part Description
Manufacturer
Product Description
Fuel Pump Hanger Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Lower failure rates due to its innovative design and durability
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
DELPHI HP10155 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 5 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Maximum Pressure | 6.5 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 70.0 82 |
| Resistance Ohms Full | 10.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 29.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Shape | Oval |
| Lock Ring Included | Yes |
| Connector Gender | Female |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 5 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Country of Origin (Primary) | MX |
| UPC | 00689604226544 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10155 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E2133S, E2487 |
| AutoZone | DHP10155 |
| Bosch | 69100 |
| CARTER FUEL PUMPS | P74576S |
| Carter | P74067, P74156, P74576S |
| DENSO Auto Parts | 951-3000 |
| DORMAN | 692-072 |
| EVO Driveline | AFS0005P, AFS0088S, RE0005P, RE0088S |
| Ford | E6UZ 9H307-AA, E6UZ 9H307-H, E8UZ 9H307-E, E8UZ 9H307-GA |
| GMB | 525-6920 |
| Motorcraft | PFS-136, PFS-147 |
| N/A | E6UZ9H307AA, E6UZ9H307H, E8UZ9H307E, E8UZ9H307GA, USEP2133S, C0038H, 4011028, 4017045, 4017053 |
| Precision Fuel | A27063, E16270 |
| Spectra Premium | SP1138, SP2019H, SP374H, SP384H |
DELPHI HP10155 Fits Vehicles
- Ford E-150 Econoline (1986-1990)
- Ford E-150 Econoline Club Wagon (1986-1989)
- Ford E-250 Econoline (1986-1989)
- Ford E-250 Econoline Club Wagon (1986-1989)
- Ford E-350 Econoline (1986-1989)
- Ford E-350 Econoline Club Wagon (1986-1989)
