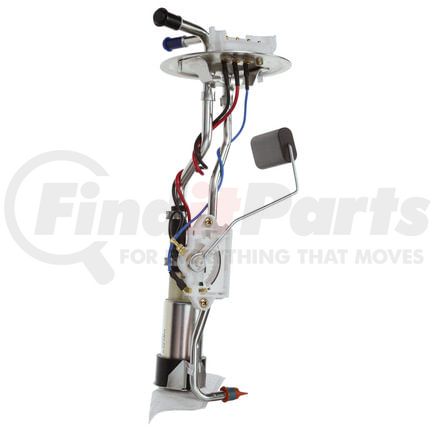

(888) 312-8812 Login SignupDELPHI HP10144 Fuel Pump Hanger Assembly
MSRP: $226.57
$13549
Save $91.08
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 15
DELPHI HP10144 Part Description
Manufacturer
Product Description
Fuel Pump Hanger Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Lower failure rates due to its innovative design and durability
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
DELPHI HP10144 Specifications
Product Attributes
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 36 psi |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12.0 2H |
| Fuel Type | Gas |
| Maximum Pressure | 80.0 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 15.0 82 |
| Resistance Ohms Full | 160.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 7.0 68 |
| Average Flow Rating | 24.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Shape | Oval |
| Lock Ring Included | Yes |
| Connector Gender | Female |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 36 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | MX |
| UPC | 00689604218532 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10144 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F1089A, F1117A |
| Airtex | E2001, E2002, E2078S, E2106S |
| AutoZone | DHP10144 |
| Bosch | 67037, 69101, 69102 |
| CARTER FUEL PUMPS | P74628H |
| Carquest | HS219627 |
| Carter | P74122, P74123, P74528S, P74628S |
| DENSO Auto Parts | 951-0016 |
| EVO Driveline | AFS0038S, AFS0064S, AFS0979P, AFS0980P, RE0038S, RE0064S, RE0979P, RE0980P |
| Ford | F57Z 9H307-EA, F57Z 9H307-FA |
| GMB | 525-6011 |
| Import Direct | A27014 |
| MasterPro Fuel Pumps | HS219627 |
| Mazda | ZZM5-13-350A |
| Motorcraft | PFS-37, PFS-38 |
| N/A | ZZM513350A, F57Z9H307EA, F57Z9H307FA, P74628H, USEP2106S, F1117A, 402-P2106S, C0028H, 4010017, 4017039 |
| Precision Fuel | A27004, A27014, E16017, E16083 |
| Spectra Premium | SP1142, SP1158, SP333H, SP37A1H |
| TruGrade | D5341573 |
| URO | FD0517383 |
DELPHI HP10144 Fits Vehicles
- Mazda B4000 (1994-1997)
- Mazda B3000 (1994-1996)
- Mazda B2300 (1994-1997)
- Ford Ranger (1990-1997)
