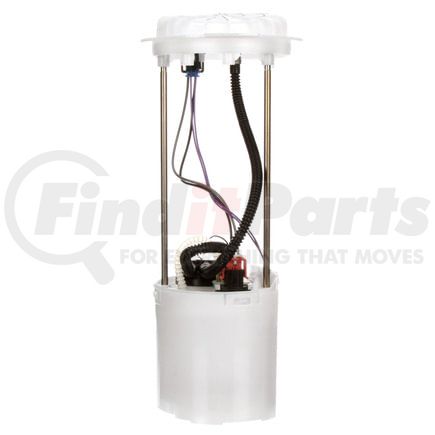

(888) 312-8812 Login SignupDELPHI FG1354 Fuel Pump Module Assembly
MSRP: $690.94
$44849
Save $242.45
Limited availability at this price!
In Stock
Get it by Friday, Jun 26
DELPHI FG1354 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG1354 Specifications
Product Attributes
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | No |
| System Pressure | 58 psi |
| Item Grade | Standard Replacement |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 109 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 990 82 |
| Resistance Ohms Full | 50 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 20 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604233184 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG1354 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E7257M, E7270M |
| AutoZone | DFG1354 |
| Bosch | 66112 |
| CONTINENTAL AG | FP22047S |
| Carquest | M2520930 |
| Carter | P76745M, P77018M, P77085M |
| Chrysler | RL145594AA, 5145 594AA, 6814 1873AA, 6825 3232AA, 6805 0948AB, 6805 0948AA |
| GMB | 520-2195, 520-2235 |
| N/A | 68050948AA, 5145594AA, USEP7257M, F3281A, C0519M, C0840M, 4010721, 4010728, 4011447 |
| Precision Fuel | A30436 |
| Spectra Premium | SP7118M, SP7200M, SP7252M |
| TYC | 150377-A |
| VDO | FP22047S |
DELPHI FG1354 Fits Vehicles
- Ram 1500 (2011-2012, 2014)
- Dodge Ram 1500 (2009-2010)
