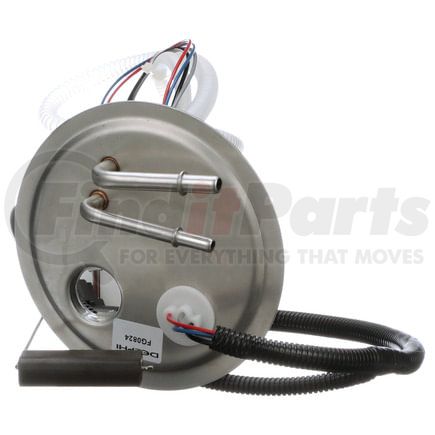

DELPHI FG0824 Fuel Pump Module Assembly

★★★★★ (0)

$307.49

Limited availability at this price!

In Stock

Get as soon as Thursday, Nov 19
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI FG0824 Part Description

Manufacturer

DELPHI

Product Description

Fuel Pump Module Assembly

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability

DELPHI FG0824 Specifications

Product Attributes

Item GradeStandard Replacement
Package ContentsFuel Pump Module Assembly w/Float Arm, Seal, Clips, Instruction Sheet
Vapor Pressure SensorNo
System Pressure44 psi
Fuel Level Sender Assembly IncludedYes
Outlet Outside Diameter0.375 IN
Voltage12 2H
Fuel TypeGas
Regulator IncludedNo
Maximum Pressure102 PS
Terminal TypePin
Gasket Or Seal IncludedYes
Terminal Quantity7
Lock Ring IncludedNo
Terminal GenderMale
Strainer IncludedYes
Inlet TypeStrainer
Outlet TypeQuick Connect
Outlet Quantity2
In Tank or ExternalIn Tank
Resistance Ohms Empty15 82
Resistance Ohms Full160 82
Internal Or External StrainerExternal
Pump TypeElectric
Average Current Draw6 68
Average Flow Rating28 GPH
Fuel Sending Unit IncludedYes
Negative GroundNo
Mounting Hardware IncludedNo
Grade TypePremium
Connector Quantity1
Connector ShapeRound
Housing MaterialPlastic
Installation WarningsNo
Connector GenderFemale
Fuel Filter IncludedNo
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure44 PS
Wire Harness IncludedNo
Pump DesignTurbine
Fuel Tank Pressure Sensor IncludedNo
Universal Or Specific FitSpecific

Additional Information

Harmonized Tariff Code (Schedule B)8413309000
Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TH
UPC00689604200919
VMRS Code044003258
UNSPSC25172409

DELPHI FG0824 Cross References

BrandPart Number
AUTOBESTF1299A
AirtexE2288M, E2318
AutoZoneDFG0824
Bosch67163
CARTER FUEL PUMPSP76114M
CarterP76114M, P76105
DENSO Auto Parts953-4134
EVO DrivelineAFS0356S, RE0356S, AFS0973P
Ford3C7Z 9H307-PA, 3C7Z 9H307-PB, YC3Z 9H307-BA, YC3Z 9H307-BE
GMB525-2025
MotorcraftPFS-281
N/A9534134, 3C7Z9H307PA, 3C7Z9H307PB, YC3Z9H307BA, YC3Z9H307BE, PFS281, USEP2288M, C0043M, 4010268
Precision FuelA27093
Spectra PremiumSP1146, SP2040M
WalbroTU221

DELPHI FG0824 Fits Vehicles

  • Ford Excursion (2000-2005)
