(888) 312-8812 Login SignupDELPHI FG0360 Fuel Pump Module Assembly
$27999
Limited availability at this price!
In Stock
Get it by Monday, Feb 23
DELPHI FG0360 Part Description
Manufacturer
Product Description

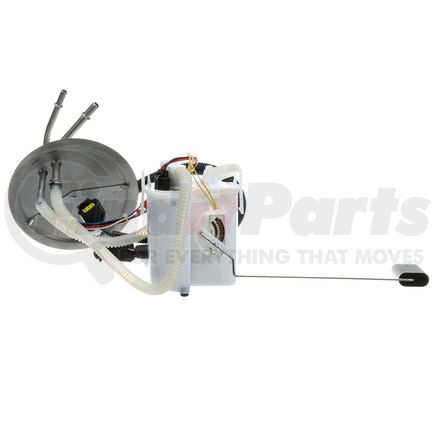

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0360 Specifications
Product Attributes
| System Pressure | 44 psi |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Clips, Instruction Sheet |
| Vapor Pressure Sensor | No |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 88 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 7 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 15 82 |
| Resistance Ohms Full | 160 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 6 68 |
| Average Flow Rating | 30 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 2 |
| Connector Shape | Round |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604120507 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0360 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F1241A |
| Airtex | E2230M, E2318 |
| AutoZone | DFG0360 |
| Bosch | 67178 |
| CARTER FUEL PUMPS | P76107M |
| Carter | P76102, P76105, P76107M |
| DENSO Auto Parts | 953-4022 |
| EVO Driveline | AFS0242S, AFS0973P |
| Ford | 3C3Z 9H307-KA, 3C3Z 9H307-KB, F81Z 9H307-KA, F81Z 9H307-KE, F81Z 9H307-KF |
| GMB | 525-2070 |
| Magneti Marelli | 1AMFP00163 |
| Motorcraft | PFS-277, PFS-389 |
| N/A | 9534022, 3C3Z9H307KB, F81Z9H307KA, PFS389, USEP2230M, C0021M, 4010294 |
| Precision Fuel | A30182 |
| Spectra Premium | SP2238M, SP1146, SP2038M |
| TYC | 150031-A |
| URO | FD0517389 |
DELPHI FG0360 Fits Vehicles
- Ford F-350 Super Duty (1999-2004)
- Ford F-250 Super Duty (1999-2004)
