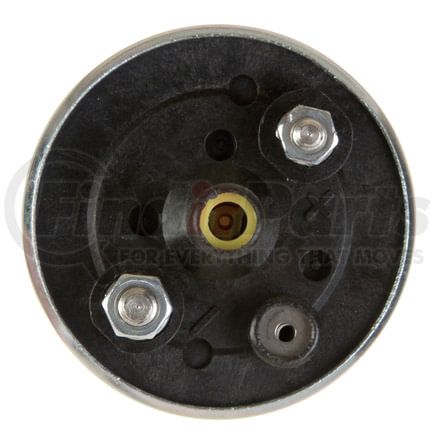

(888) 312-8812 Login SignupDELPHI FE0486 Electric Fuel Pump
MSRP: $178.75
$14249
Save $36.26
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 24
DELPHI FE0486 Part Description
DELPHI FE0486 Specifications
Product Attributes
| Position(s) | In-Tank |
| Package Contents | Electric Fuel Pump, (2) Hose Clamps, Hose Piece, Isolator, Pall Nut, (2) Seals, Instruction Sheets |
| System Pressure | 44 psi |
| Item Grade | Standard Replacement |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 0.375 IN |
| Outlet Outside Diameter | 9.5 MM |
| Length | 127.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 125.0 PS |
| Terminal Type | Threaded |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose Bead |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 26.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Terminals |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 6.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Country of Origin (Primary) | TH |
| UPC | 00689604215265 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0486 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 9510013, 9510014, 9515012, 17040SK7A70, 17040SL0A30, 17040SL0A31, 17040SL0L30, 17040SL5A30, 17040SM4A30, 17040SP0A30, 17040SS0A30, 17040SS0V30, 17708SE0935, 17708SE0936, 17708SE0S30, 17708SF1A31, 17708SH3A30, 17708SH3A31, 17708SH3A34, 17708SH3A35, 17708SH3A36, 17708SH3A41, 17708SH3A42, 17708SH3A49, 17708SH3S02, 17708SK7A35, 17708SK7A36, 17708SL0A32, 17708SL5A31, 17708SM4A30, 17708SM4A32, 17708SP0A32, F2G813ZE0, G60813350B, JE1713350, JE221335Z, KJ0113350, KJ011335ZA, KJ141335Z, N35013350C, N3511335ZB, N3701335ZB, N39013350, N3A11335Z, P74, 2320674140, 2322016083, 2322016084, 2322016430, 2322042070, 2322043070, 2322070070, 2322070120, 2322070170, 2322079015, 2322116390, 2322116440, 2322142130, 2322150010, 2322150020, 2322150040, 2322174010, E8GY9350A, 9510011, 9510012, 9500149, 9500152, 9500153, 9500154, 9500157, 9500159, 9500185, 9500192, 9510001, 9510006, 9510007, 9510010, M70320, USEP8023, E2051, F4034, 402-P8023, B0115E, P74113, P90024 |
| Bosch | 67266, 67829, 67831, 67834, 67835, 69407, 69734, 67264, 67832, 69140, 69496, 69516, 69606, 69619, 69620, 69623, 69636, 69659, 69662, 69667 |
| Carter | P72090, P72164, P72165, P72190, P72192, P72227, P72239, P72260, P74160, P74224, P74553H, P77009H, P77044H, P77048H, P72135, P72228, P72236, P72244, P77008H, P88007, P90012 |
| ACDelco | EP285, EP311, EP343, EP427, EP461, EP465, EP466, EP467 |
| EVO Driveline | AFS0211P, AFS0327P, AFS0427P, AFS0895P, RE0327P, RE0427P, RE0895P, AFS0327 |
| Airtex | E3285, E8023, E8119, E8252H, E8321H, E8328H, E8331H, E8229, E8270H, E8322H, E8324H, E8325H, E8326H, E8333H, E8334H |
| Mitsubishi | MB400420, MB598285, MB678807, MB698858, MB845502, MB597728, MB831742 |
| Spectra Premium | SP1137, SP1118, SP1129, SP4070H, SP8001H, SP8026H, SP8051H, SP8322H, SP8324H |
| Hygrade Tuneup | EFP196 |
| Autopart International | 60140 |
| Kem | EFP285, EFP8119, EFP8189 |
| Auto-Tune | P74 |
| Beck/Arnley | 1520922, 152-0822, 152-0919 |
| Master Parts Division | E3285, E8119 |
| Chrysler | MB400420, MB698858, MB845502, MB554100, MB597728, MB831742, MB893666, MB923663 |
| BorgWarner | P118, P129, P368E, P479E, P74, P95180E |
| Niehoff | P368E, P74, P95180E |
| Walbro | GCA311, GCA315, GCA3341, GCA3355, GCA3356 |
| General Motors | 25028108, 25117339, 25164136, 25177374, 25177375, 25177376, 25177690, 94847261, 94850321, 96055518 |
| DENSO Auto Parts | 950-0147, 950-0149, 950-0150, 950-0151, 950-0152, 950-0153, 950-0154, 950-0157, 950-0159, 950-0185, 950-0192, 950-0200, 951-0001, 951-0006, 951-0007, 951-0010, 951-0011, 951-0012, 951-0013, 951-0014, 951-5012 |
| Motorcraft | PFB-17 |
| Gates | P74 |
| Carquest | E259218 |
| AutoZone | CFE0486 |
| Daihatsu | 23100-87733-000, 23210-87711-000, 23210-87712-000, 23220-87701-000 |
| Suzuki | 15101-61B03, 15110-61B00, 15110-61BT0 |
| Ford | E8GY 9350-A, E92Z 9350-A, E92Z 9350-BA, E92Z 9A407-BA, F0BZ 9350-A, F1JY 9350-A |
| Toyota | 23206-74140, 23220-16083, 23220-16084, 23220-16190, 23220-16270, 23220-16430, 23220-42070, 23220-43070, 23220-70070, 23220-70120, 23220-70170, 23220-79015, 23221-16390, 23221-16440, 23221-42130, 23221-50010, 23221-50020, 23221-50040, 23221-74010, 23249-43080 |
| Honda | 17040-SD4-000, 17040-SH5-A30, 17040-SK7-A70, 17040-SL0-A30, 17040-SL0-A31, 17040-SL0-L30, 17040-SL5-A30, 17040-SM4-A30, 17040-SP0-A30, 17040-SS0-A30, 17040-SS0-V30, 17708-SE0-935, 17708-SE0-936, 17708-SE0-S30, 17708-SF1-A31, 17708-SG0-A30, 17708-SH2-A31, 17708-SH3-A30, 17708-SH3-A31, 17708-SH3-A34, 17708-SH3-A35, 17708-SH3-A36, 17708-SH3-A41, 17708-SH3-A42, 17708-SH3-A49, 17708-SH3-S02, 17708-SH5-S00, 17708-SK7-A35, 17708-SK7-A36, 17708-SL0-A32, 17708-SL5-A31, 17708-SM4-A30, 17708-SM4-A32, 17708-SP0-A32 |
| Mazda | B630-13-350C, BP02-13-35ZD, BP47-13-35ZC, BP51-13-350A, E5F7-13-350C, F201-13-350F, F201-13-350H, F2G8-13-350B, F2G8-13-ZE0, FE3N-13-350B, FE3N-13-350C, FEH2-13-350, G601-13-35ZC, G607-13-350, G607-13-ZE0, G608-13-350B, G608-13-350BMV, G616-13-350, G622-13-35Z, JE15-13-35ZC, JE17-13-350, JE17-13-350A, JE22-13-35Z, JF01-13-350C, KJ01-13-350, KJ01-13-35ZA, KJ14-13-35Z, N318-13-350A, N326-13-350A, N350-13-350C, N351-13-35ZB, N370-13-35ZB, N390-13-350, N3A1-13-35Z |
| Sterling Trucks | 19419450016, 19419450022 |
| Precision Fuel | A20026, A30194, A30267, E16024, E16051, E16055 |
| Import Direct | A20026, A20038, A30156, E16024, E16051, E16070, E16205 |
| MasterPro Fuel Pumps | MPE16024 |
| TruGrade | 5211010 |
DELPHI FE0486 Fits Vehicles
- Mazda MPV (1989-1993)
- Mazda B2600 (1989-1993)
- Mazda B2200 (1990-1993)
- Mazda Protege (1990-1991)
- Mazda 626 (1986-1992)
- Mazda 323 (1986-1991)
- Mazda RX-7 (1986-1991, 1993-1995)
- Mazda Millenia (1995-2002)
- Mazda 929 (1988-1991)
- Mazda MX-6 (1988-1992)
- Toyota Van (1985-1989)
- Toyota Supra (1986-1992)
- Toyota Pickup (1985-1991)
- Toyota Previa (1991-1994)
- Toyota MR2 (1985-1989, 1991-1995)
- Toyota Land Cruiser (1988-1992)
- Toyota Cressida (1985-1992)
- Toyota Corolla (1985-1993)
- Toyota Celica (1985-1993)
- Toyota Camry (1985-1991)
- Toyota 4Runner (1985-1991)
- Lexus LS400 (1990-2000)
- Lexus ES250 (1990-1991)
- Mitsubishi 3000GT (1991-1999)
- Mitsubishi Mirage (1989-1992)
- Mitsubishi Eclipse (1990-1994)
- Mitsubishi Sigma (1989-1990)
- Mitsubishi Galant (1985-1993)
- Sterling 827 (1989-1991)
- Sterling 825 (1987-1988)
- Honda Prelude (1988-1996)
- Honda CRX (1988-1991)
- Honda Civic (1988-1991)
- Acura Vigor (1992-1994)
- Honda Accord (1986-1993)
- Acura NSX (1991-2005)
- Acura Legend (1986-1995)
- Acura Integra (1990-1993)
- Mercury Tracer (1988-1989)
- Mercury Capri (1991-1994)
- Ford Probe (1989-1992)
- Ford Festiva (1989-1993)
- Pontiac Bonneville (1992-1995)
- Oldsmobile 88 (1995)
- Oldsmobile 98 (1992-1995)
- Geo Prizm (1989-1992)
- Chevrolet Sprint (1987-1988)
- Buick Park Avenue (1991-1995)
- Plymouth Laser (1990-1994)
- Plymouth Colt (1989-1992)
- Eagle Talon (1990-1994)
- Eagle Summit (1989-1992)
- Dodge Stealth (1991-1996)
- Dodge Colt (1989-1992)
- Daihatsu Charade (1988-1992)
- Suzuki Swift (1989-1994)
DELPHI FE0486 Cross References
We have 6 alternatives for the FE0486 by DELPHI:
DELPHI FE0486 Customer Reviews
No reviews yet
Be the first to review this product!
